日本爱普生1612无源晶振X1E000251004600用在智能手机时注意事项
日本爱普生1612无源晶振X1E000251004600用在智能手机时注意事项
考虑到智能手机无源晶振的应用很多都是批量使用,如果您需要大量采购晶振的情况下,要商家给予的保障和持续的服务.要在合同中明确样品测试数据如何才是达标以及后期使用爱普生EPSON晶振时出现工作一段时间后不工作的情况该如何判断是不是无源晶振的质量问题,这些细节都要在购买时就考虑到和晶振厂商咨询清楚,同理配送发货包装运输等服务也是要明确到文字上.同时重视品牌口碑和后续服务保障,尽量提前做好采购规划进而更早购买晶振产品,这样才有充足的时间对晶振产品进行测试和对比.
日本爱普生1612无源晶振,X1E000251004600智能手机晶振
爱普生晶振编码
长x宽x高
型号
石英晶振频率
负载
频率25°C
频率公差
工作温度范围
ESR最大
驱动电平
X1E000251000900
1.6 x 1.2 x 0.35mm
FA-118T
27.120000 MHz
10 pF
+/-30 ppm
+/-50 ppm
-20 to +75 °C
≤ 200 Ω
≤ 100 µW
X1E000251001100
1.6 x 1.2 x 0.35mm
FA-118T
26.000000 MHz
8 pF
+/-10 ppm
+/-10 ppm
-20 to +75 °C
≤ 200 Ω
≤ 100 µW
X1E000251001400
1.6 x 1.2 x 0.35mm
FA-118T
26.000000 MHz
9 pF
+/-10 ppm
+/-12 ppm
-20 to +75 °C
≤ 200 Ω
≤ 100 µW
X1E000251001600
1.6 x 1.2 x 0.35mm
FA-118T
37.400000 MHz
16 pF
+/-10 ppm
+/-10 ppm
-20 to +85 °C
≤ 80 Ω
≤ 100 µW
X1E000251003100
1.6 x 1.2 x 0.35mm
FA-118T
37.400000 MHz
16 pF
+/-7 ppm
+/-10 ppm
-30 to +85 °C
≤ 80 Ω
≤ 100 µW
X1E000251003200
1.6 x 1.2 x 0.35mm
FA-118T
40.000000 MHz
10 pF
+/-10 ppm
+/-10 ppm
-20 to +75 °C
≤ 80 Ω
≤ 100 µW
X1E000251003300
1.6 x 1.2 x 0.35mm
FA-118T
25.000000 MHz
10 pF
+/-30 ppm
+/-30 ppm
-20 to +75 °C
≤ 200 Ω
≤ 100 µW
X1E000251003400
1.6 x 1.2 x 0.35mm
FA-118T
25.000000 MHz
9 pF
+/-30 ppm
+/-30 ppm
-20 to +75 °C
≤ 200 Ω
≤ 100 µW
X1E000251003500
1.6 x 1.2 x 0.35mm
FA-118T
30.000000 MHz
8 pF
+/-20 ppm
+/-20 ppm
-20 to +75 °C
≤ 200 Ω
≤ 100 µW

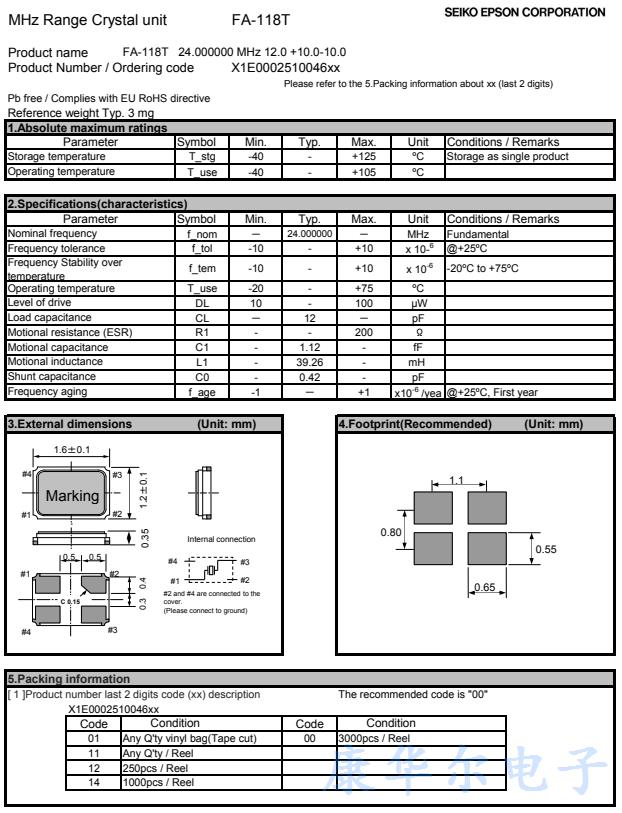

X1E000251004600
1.6 x 1.2 x 0.35mm
FA-118T
24.000000 MHz
12 pF
+/-10 ppm
+/-10 ppm
-20 to +75 °C
≤ 200 Ω
≤ 100 µW
X1E000251005000
1.6 x 1.2 x 0.35mm
FA-118T
32.000000 MHz
9 pF
+/-10 ppm
+/-12 ppm
-20 to +75 °C
≤ 100 Ω
≤ 100 µW
X1E000251005600
1.6 x 1.2 x 0.35mm
FA-118T
52.000000 MHz
9 pF
+/-15 ppm
+/-12 ppm
-20 to +75 °C
≤ 80 Ω
≤ 100 µW
X1E000251005700
1.6 x 1.2 x 0.35mm
FA-118T
25.000000 MHz
7 pF
+/-30 ppm
+/-30 ppm
-20 to +75 °C
≤ 200 Ω
≤ 100 µW
X1E000251005900
1.6 x 1.2 x 0.35mm
FA-118T
32.000000 MHz
8 pF
+/-10 ppm
+/-10 ppm
-20 to +75 °C
≤ 100 Ω
≤ 100 µW
X1E000251006000
1.6 x 1.2 x 0.35mm
FA-118T
48.000000 MHz
10 pF
+/-30 ppm
+/-30 ppm
-20 to +75 °C
≤ 80 Ω
≤ 100 µW
X1E000251006400
1.6 x 1.2 x 0.35mm
FA-118T
26.000000 MHz
12 pF
+/-10 ppm
+/-12 ppm
-20 to +75 °C
≤ 200 Ω
≤ 100 µW
X1E000251006500
1.6 x 1.2 x 0.35mm
FA-118T
32.000000 MHz
10 pF
+/-10 ppm
+/-12 ppm
-20 to +75 °C
≤ 100 Ω
≤ 100 µW
X1E000251006800
1.6 x 1.2 x 0.35mm
FA-118T
24.000000 MHz
8 pF
+/-30 ppm
+/-30 ppm
-20 to +75 °C
≤ 200 Ω
≤ 100 µW
X1E000251006900
1.6 x 1.2 x 0.35mm
FA-118T
24.000000 MHz
10 pF
+/-30 ppm
+/-30 ppm
-20 to +75 °C
≤ 200 Ω
≤ 100 µW
X1E000251007100
1.6 x 1.2 x 0.35mm
FA-118T
40.000000 MHz
12 pF
+/-8 ppm
+/-10 ppm
-30 to +85 °C
≤ 80 Ω
≤ 100 µW
X1E000251007500
1.6 x 1.2 x 0.35mm
FA-118T
26.000000 MHz
8 pF
+/-10 ppm
+/-10 ppm
-30 to +85 °C
≤ 200 Ω
≤ 100 µW
X1E000251007700
1.6 x 1.2 x 0.35mm
FA-118T
25.000000 MHz
9 pF
+/-10 ppm
+/-10 ppm
-20 to +75 °C
≤ 200 Ω
≤ 100 µW
X1E000251007800
1.6 x 1.2 x 0.35mm
FA-118T
40.000000 MHz
7 pF
+/-10 ppm
+/-10 ppm
-20 to +75 °C
≤ 80 Ω
≤ 100 µW
X1E000251007900
1.6 x 1.2 x 0.35mm
FA-118T
32.000000 MHz
9 pF
+/-10 ppm
+/-10 ppm
-20 to +75 °C
≤ 100 Ω
≤ 100 µW
在购买晶振产品时要区分无源晶振和有源晶振的区别,因为无源晶振只是具有两个引脚的无极性元件输入端、输出端,不需要直接连接供电电源,可以适应多种电压,所以更需要注重品牌和品质.
无源晶振日本进口晶体本身没有起振电路需要外部配有精准的电路才能发挥作用,在购买无源晶振的时候就要提前做好规划.无论是晶振产品的采购渠道和品牌还是购买后进行测试环节都要重视,牢记采购无源晶振的注意事项.
日本爱普生1612无源晶振,X1E000251004600智能手机晶振
