Epson now offers the new SPXO sample SG-8201CJA for automotive applications
-Excellent stability and jitter performance make the SG-8201CJA the ideal choice for LiDAR and ADAS electronic control units. In 2022, Tokyo Seiko Epson (TSE: 6724, " Epson) has begun shipping SG-8201CJA 爱普生有源晶振samples, a new member of Epson's crystal oscillator (SPXO) series with CMOS output 1 for automotive applications. SG-8201CJA provides high stability and low jitter 2, is a simple package of SPXO, usually size 2.0mmx1.6mmx0.6mm.
SG-8201CJA爱普生OSC晶振X1G004801007700,智能汽车激光雷达和车载摄像头XO有源晶振
Applications in autonomous driving (AD), such as on-board cameras in optical detection and ranging 3 (LiDAR) and Advanced Driver Assistance Systems (ADAS), require reference clock-processing speeds in the 100MHz range due to high RF and high frequency. Furthermore, improvements in AD and ADAS performance drive a growing demand for clocks with excellent stability and jitter performance. Demand for small products is also strong in all automotive applications.Like its predecessor, the SG-8101CGA, the new crystal oscillator supports automotive application output frequencies of up to 170MHz, but its frequency tolerance increases by 50%, and the phase jitter is about 1 / 25. 日本进口晶体The package footprint is also 64% and 55% less than the cubic volume, respectively. The SG-8201CJA meets the AEC-Q1004 standards and operates at ambient temperatures of up to 125℃, meeting the requirements of automotive applications and helping to improve vehicle safety and reliability.
Epson also began to provide samples of the SG-8200CJ and SG-8201CJ crystal oscillators for both industrial and consumer applications. With this, Epson has assembled a range of products for consumer, commercial, industrial, and automotive applications.
Epson seeks to use its device technology to achieve an intelligent society. To this end, the company will continue to develop products for automotive applications that require uncompromising accuracy and safety, and improved performance of the customer's products.

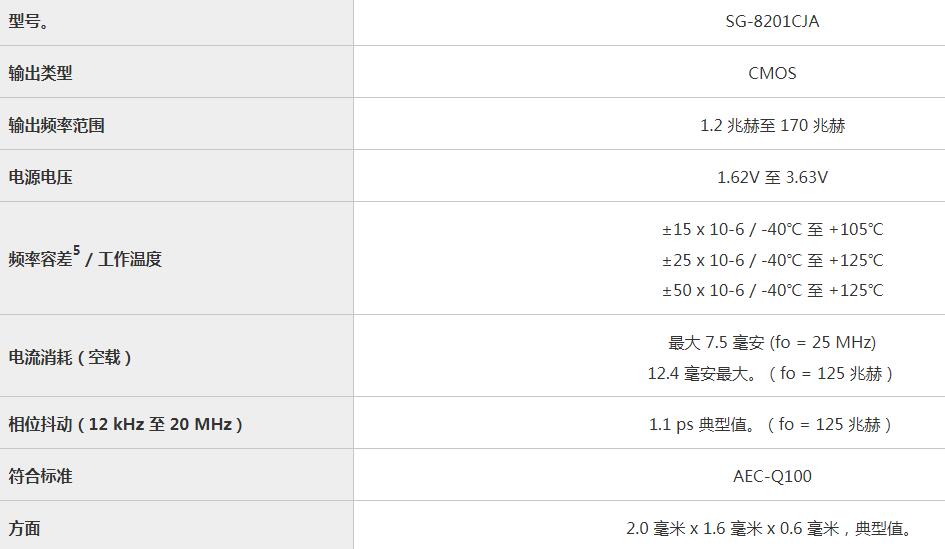

Product characteristics
AD and ADAS related features (for, lidar and car camera)
SG-8201CJA爱普生OSC晶振X1G004801007700,智能汽车激光雷达和车载摄像头XO有源晶振
爱普生有源晶振编码 | 型号 | 频率 | 长X宽X高 | 输出波 | 电源电压 | 工作温度 | 频差 |
X1G004801007700 | SG2016CAN | 26.000000 MHz | 2.00 x 1.60 x 0.70 mm | CMOS | 1.600 to 3.630 V | -20 to 70 °C | +/-25 ppm |
X1G005341000200 | SG2016CAA | 27.000000 MHz | 2.00 x 1.60 x 0.70 mm | CMOS | 1.600 to 3.630 V | -40 to 105 °C | +/-50 ppm |
X1G005341000400 | SG2016CAA | 40.000000 MHz | 2.00 x 1.60 x 0.70 mm | CMOS | 1.600 to 3.630 V | -40 to 105 °C | +/-50 ppm |
X1G005341000900 | SG2016CAA | 25.000000 MHz | 2.00 x 1.60 x 0.70 mm | CMOS | 1.600 to 3.630 V | -40 to 125 °C | +/-100 ppm |
X1G005341001100 | SG2016CAA | 24.000000 MHz | 2.00 x 1.60 x 0.70 mm | CMOS | 1.600 to 3.630 V | -40 to 105 °C | +/-50 ppm |
X1G005341001300 | SG2016CAA | 27.000000 MHz | 2.00 x 1.60 x 0.70 mm | CMOS | 1.600 to 3.630 V | -40 to 125 °C | +/-100 ppm |
X1G005341001500 | SG2016CAA | 48.000000 MHz | 2.00 x 1.60 x 0.70 mm | CMOS | 1.600 to 3.630 V | -40 to 105 °C | +/-50 ppm |
X1G005341001700 | SG2016CAA | 12.288000 MHz | 2.00 x 1.60 x 0.70 mm | CMOS | 1.600 to 3.630 V | -40 to 105 °C | +/-50 ppm |
X1G005341001900 | SG2016CAA | 48.000000 MHz | 2.00 x 1.60 x 0.70 mm | CMOS | 1.600 to 3.630 V | -40 to 125 °C | +/-100 ppm |
X1G005341002400 | SG2016CAA | 20.000000 MHz | 2.00 x 1.60 x 0.70 mm | CMOS | 1.600 to 3.630 V | -40 to 105 °C | +/-50 ppm |
X1G005341002700 | SG2016CAA | 24.576000 MHz | 2.00 x 1.60 x 0.70 mm | CMOS | 1.600 to 3.630 V | -40 to 105 °C | +/-50 ppm |
X1G005341002900 | SG2016CAA | 24.000000 MHz | 2.00 x 1.60 x 0.70 mm | CMOS | 1.600 to 3.630 V | -40 to 125 °C | +/-100 ppm |
X1G005341003400 | SG2016CAA | 50.000000 MHz | 2.00 x 1.60 x 0.70 mm | CMOS | 1.600 to 3.630 V | -40 to 105 °C | +/-50 ppm |
X1G005341003500 | SG2016CAA | 25.000000 MHz | 2.00 x 1.60 x 0.70 mm | CMOS | 1.600 to 3.630 V | -40 to 105 °C | +/-50 ppm |
X1G005341003700 | SG2016CAA | 54.000000 MHz | 2.00 x 1.60 x 0.70 mm | CMOS | 1.600 to 3.630 V | -40 to 105 °C | +/-50 ppm |
X1G005341003800 | SG2016CAA | 54.000000 MHz | 2.00 x 1.60 x 0.70 mm | CMOS | 1.600 to 3.630 V | -40 to 125 °C | +/-100 ppm |
X1G005341004100 | SG2016CAA | 8.000000 MHz | 2.00 x 1.60 x 0.70 mm | CMOS | 1.600 to 3.630 V | -40 to 125 °C | +/-100 ppm |
X1G005341004400 | SG2016CAA | 12.000000 MHz | 2.00 x 1.60 x 0.70 mm | CMOS | 1.600 to 3.630 V | -40 to 105 °C | +/-50 ppm |
X1G005341004500 | SG2016CAA | 24.000000 MHz | 2.00 x 1.60 x 0.70 mm | CMOS | 1.600 to 3.630 V | -40 to 105 °C | +/-50 ppm |
X1G005341004600 | SG2016CAA | 33.333300 MHz | 2.00 x 1.60 x 0.70 mm | CMOS | 1.600 to 3.630 V | -40 to 105 °C | +/-50 ppm |
X1G005341005000 | SG2016CAA | 50.000000 MHz | 2.00 x 1.60 x 0.70 mm | CMOS | 1.600 to 3.630 V | -40 to 125 °C | +/-100 ppm |
X1G005341005100 | SG2016CAA | 14.745600 MHz | 2.00 x 1.60 x 0.70 mm | CMOS | 1.600 to 3.630 V | -40 to 105 °C | +/-50 ppm |
X1G005341005300 | SG2016CAA | 33.000000 MHz | 2.00 x 1.60 x 0.70 mm | CMOS | 1.600 to 3.630 V | -40 to 105 °C | +/-50 ppm |
X1G005341005400 | SG2016CAA | 16.666600 MHz | 2.00 x 1.60 x 0.70 mm | CMOS | 1.600 to 3.630 V | -40 to 105 °C | +/-50 ppm |
X1G005341005600 | SG2016CAA | 8.000000 MHz | 2.00 x 1.60 x 0.70 mm | CMOS | 1.600 to 3.630 V | -40 to 105 °C | +/-50 ppm |
2 Jitter: fluctuations in clock cycles can cause fluctuations in display images and bit errors in data transmission.
3LiDAR: The technology for a sensor to emit a pulse laser wave that rebounds from the surrounding objects and returns to the receiver. The sensor is able to measure the distance and instantaneous velocity to the object based on the time required for each pulse to return
4AEC-Q100: The Automotive Electronics Commission 车规级晶振(AEC) is an industry organization that sets standards for the reliability and certification of automotive electronics products. It was formed by American "big three" automakers in partnership with major electronic components manufacturers. The AEC standard is a de facto global standard, and has been widely used as a standard for automotive electronic components.
5 Includes frequency tolerance, frequency / temperature coefficient, frequency supply voltage change characteristics, frequency load change characteristics, reflux welding characteristics, and frequency aging (+ 25℃, 1 year)
