民用电子产品中Q22FA1280014000爱普生石英晶振优势
尽管石英晶体振荡器的应用已有几十年的历史,但因其具有频率稳定度高这一特点,故在电子技术领域中一直占有重要的地位.尤其是信息技术（IT）产业的高速发展,更使这种晶体振荡器焕发出勃勃生机.石英晶体振荡器在远程通信、卫星通信、移动电话系统、全球定位系统（GPS）、导航、遥控、航空航天、高速计算机、精密计测仪器及消费类民用电子产品中.
民用晶振Q22FA1280014000,爱普生石英晶振
爱普生晶振编码
长x宽x高
型号
石英晶振频率
负载
频率25°C
频率公差
工作温度范围
ESR最大
驱动电平
Q22FA1280012500
2x1.6x0.5mm
FA-128
24.000000MHz
6pF
+/-30ppm
+/-30ppm
-20to+75°C
≤80Ω
≤100µW
Q22FA1280012600
2x1.6x0.5mm
FA-128
25.000000MHz
8pF
+/-30ppm
+/-30ppm
-20to+75°C
≤80Ω
≤100µW
Q22FA1280012700
2x1.6x0.5mm
FA-128
24.576000MHz
10pF
+/-30ppm
+/-20ppm
-20to+75°C
≤80Ω
≤100µW
Q22FA1280012900
2x1.6x0.5mm
FA-128
27.120000MHz
12pF
+/-30ppm
+/-30ppm
-20to+75°C
≤60Ω
≤100µW
Q22FA1280013100
2x1.6x0.5mm
FA-128
32.000000MHz
9pF
+/-10ppm
+/-9ppm
-20to+75°C
≤60Ω
≤100µW
Q22FA1280013200
2x1.6x0.5mm
FA-128
26.000000MHz
15pF
+/-10ppm
+/-10ppm
-20to+70°C
≤60Ω
≤100µW
Q22FA1280013500
2x1.6x0.5mm
FA-128
27.000000MHz
12pF
+/-10ppm
+/-18ppm
-40to+85°C
≤60Ω
≤100µW
Q22FA1280013700
2x1.6x0.5mm
FA-128
32.000000MHz
9pF
+/-20ppm
+/-30ppm
-30to+85°C
≤60Ω
≤100µW

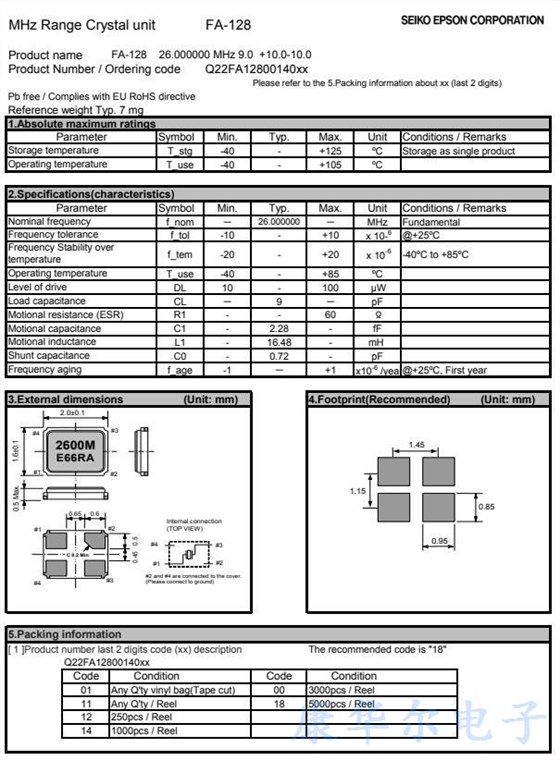

Q22FA1280014000
2x1.6x0.5mm
FA-128
26.000000MHz
9pF
+/-10ppm
+/-20ppm
-40to+85°C
≤60Ω
≤100µW
Q22FA1280014100
2x1.6x0.5mm
FA-128
20.000000MHz
10pF
+/-10ppm
+/-10ppm
-20to+70°C
≤100Ω
≤100µW
Q22FA1280014300
2x1.6x0.5mm
FA-128
48.000000MHz
6pF
+/-50ppm
+/-30ppm
-30to+85°C
≤60Ω
≤100µW
Q22FA1280014500
2x1.6x0.5mm
FA-128
24.000000MHz
6pF
+/-10ppm
+/-10ppm
-20to+75°C
≤80Ω
≤100µW
Q22FA1280014600
2x1.6x0.5mm
FA-128
24.000000MHz
7pF
+/-10ppm
+/-10ppm
-20to+75°C
≤80Ω
≤100µW
Q22FA1280014700
2x1.6x0.5mm
FA-128
38.400000MHz
8pF
+/-10ppm
+/-10ppm
-20to+75°C
≤60Ω
≤100µW
Q22FA1280014800
2x1.6x0.5mm
FA-128
26.000000MHz
8pF
+/-10ppm
+/-12ppm
-30to+85°C
≤60Ω
≤100µW
Q22FA1280014900
2x1.6x0.5mm
FA-128
27.000000MHz
8pF
+/-10ppm
+/-18ppm
-40to+85°C
≤60Ω
≤100µW
Q22FA1280015000
2x1.6x0.5mm
FA-128
48.000000MHz
10pF
+/-10ppm
+/-20ppm
-40to+85°C
≤60Ω
≤100µW
Q22FA1280015200
2x1.6x0.5mm
FA-128
40.000000MHz
10pF
+/-10ppm
+/-10ppm
-20to+75°C
≤60Ω
≤100µW
Q22FA1280015600
2x1.6x0.5mm
FA-128
25.000000MHz
6pF
+/-30ppm
+/-30ppm
-30to+85°C
≤80Ω
≤100µW
Q22FA1280015800
2x1.6x0.5mm
FA-128
27.000000MHz
10pF
+/-10ppm
+/-10ppm
-20to+75°C
≤60Ω
≤100µW
Q22FA1280015900
2x1.6x0.5mm
FA-128
27.000000MHz
12pF
+/-27ppm
+/-50ppm
-20to+70°C
≤60Ω
≤100µW
Q22FA1280016000
2x1.6x0.5mm
FA-128
25.000000MHz
7pF
+/-30ppm
+/-30ppm
-20to+75°C
≤80Ω
≤100µW
Q22FA1280016600
2x1.6x0.5mm
FA-128
25.000000MHz
10pF
+/-10ppm
+/-10ppm
-20to+75°C
≤80Ω
≤100µW
Q22FA1280016800
2x1.6x0.5mm
FA-128
24.000000MHz
12.5pF
+/-10ppm
+/-30ppm
-20to+75°C
≤80Ω
≤100µW
Q22FA1280016900
2x1.6x0.5mm
FA-128
24.000000MHz
7pF
+/-10ppm
+/-30ppm
-20to+75°C
≤80Ω
≤100µW
作为标准频率源或脉冲信号源,提供频率基准,是其它类型的振荡器所不能替代的.小型化、片式化、低噪声化、频率高精度化与高稳定度及高频化,是移动电话和天线寻呼机为代表的便携式产品对石英晶体振荡器提出的要求.事实上石英晶体振荡器在发展过程中,也面临像频率发生器这类电路的潜在威胁和挑战.此类振荡器只有在技术上不断创新,才能延长其寿命周期,在竞争中占有优势.民用晶振Q22FA1280014000,爱普生石英晶振
