SUNTSU CRYSTAL QUARTZ原厂编码，Suntsu是一家极其有声望的元器件供应商，致力于用户解决在晶体行业所遇到的问题点，同时也提供完美的晶振解决方案，又以高于用户的满意度为最大的追求，凭借着自身的努力，在制作晶振产品上面有了极大的突破，所生产出来的产品具有出色的稳定性能以及耐压性，凭着高超的技术与精湛的工艺松图晶振能成为时下最畅销的元器件之一，
Suntsu石英晶体提供通孔或表面贴装封装，有多种尺寸可供选择。从下面的数据表中选择一个标准零件号，或者联系我们的销售团队，请求您想要的任何定制参数，我们将根据您的特定需求进行设计。
AT切割石英晶体非常受欢迎，通常出现在频率范围为1MHz至约200MHz的电子设备中。BT切割石英晶体用于略高的频率。SC切石英晶体最初是为晶体炉开发的，因为它特别抗过早老化，并且在操作时有效地将噪音降至最低。
石英晶振具有压电特性；当施加机械应力时，它们产生电势。它们是当今最常用的压电谐振器。
Suntsu手表水晶提供通孔或表面贴装封装，有多种尺寸可供选择。从下面的数据表中选择一个标准零件号，或者联系我们的销售团队，请求您想要的任何定制参数，我们将根据您的特定需求进行设计。
|
系列
|
图像
|
包裹
|
对的稳定性
|
频率
|
卷
|
关键特征
|
环
|
|---|---|---|---|---|---|---|---|

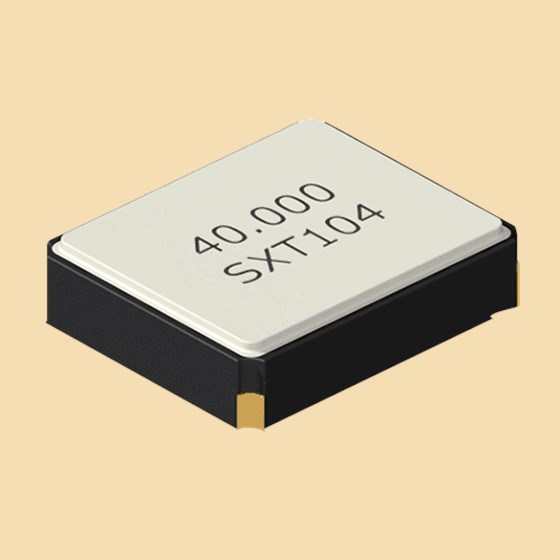

| SXT104 |
|
1.2X1.0陶瓷SMT(4个焊盘) | 10/10 ppm | 36.000兆赫-80.000兆赫 | 3K | 超小型封装 |
|

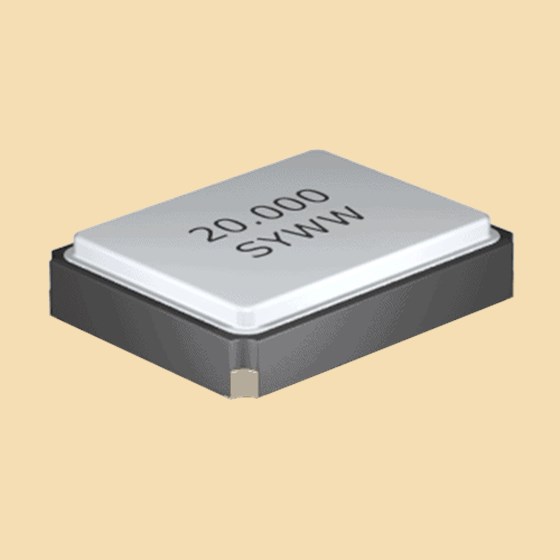

| SXT114 |
|
1.6X1.2陶瓷SMT(4焊盘) | 10/10 ppm | 26.000兆赫至54.000兆赫 | 3K | 超小型封装 |
|

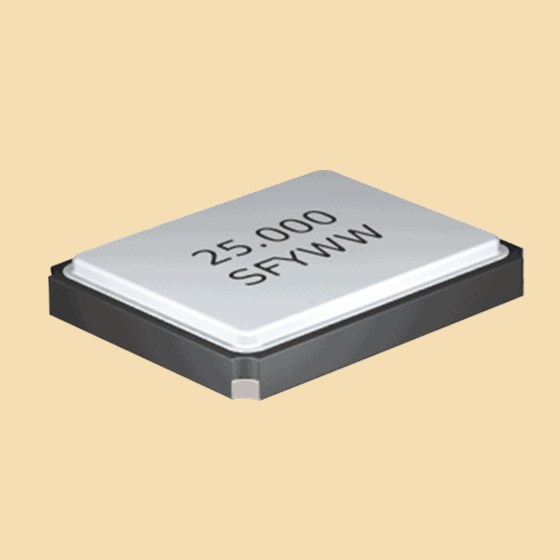

| SAX214 |
|
2.0X1.6陶瓷SMT(4个焊盘) | 10ppm/ 30ppm | 16.000兆赫–54.000兆赫 | 3K | 符合AEC-Q200标准 |
|

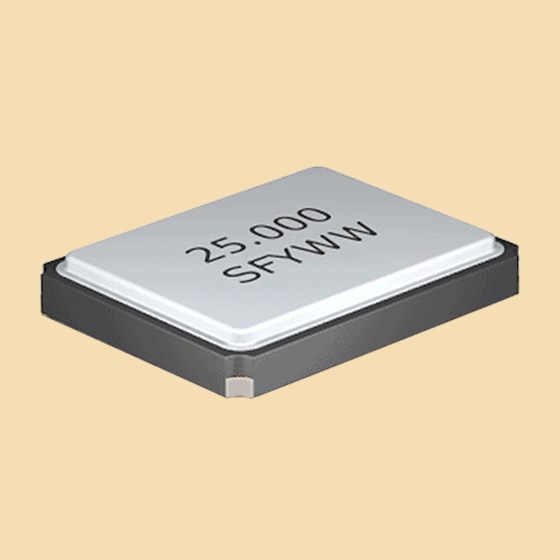

| SXT214 |
|
2.0X1.6陶瓷SMT(4个焊盘) | 10/10 ppm | 16.000兆赫至60.000兆赫 | 3K | 超小型封装 |
|

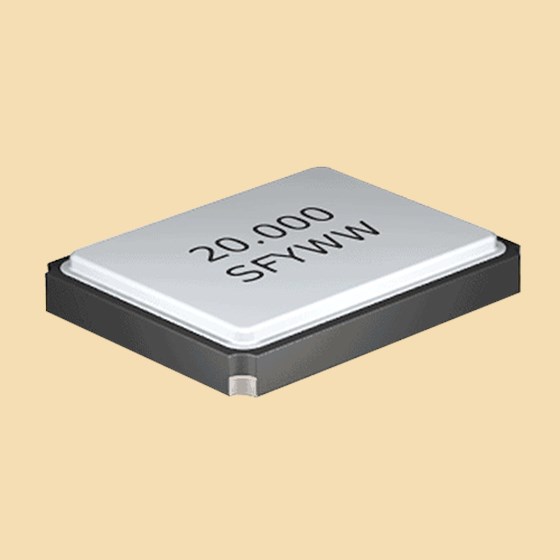

| SAX224 |
|
2.5X2.0陶瓷SMT(4焊盘) | 10ppm/ 30ppm | 12.000兆赫–54.000兆赫 | 3K | 符合AEC-Q200标准 |
|
| SXT224 |
|
2.5X2.0陶瓷SMT(4焊盘) | 10/10 ppm | 12.000兆赫至66.000兆赫 | 3K | 超小型封装 |
|

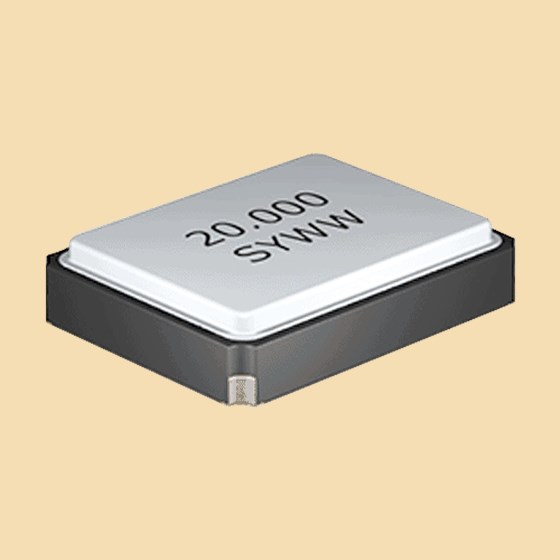

| SAX324 |
|
3.2X2.5陶瓷SMD(4个焊盘) | 10ppm/ 30ppm | 8.000兆赫–54.000兆赫 | 3K | 符合AEC-Q200标准 |
|

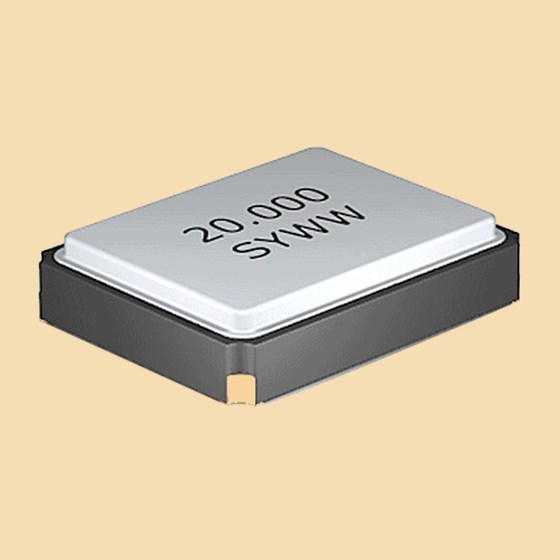

| SXT324 |
|
3.2X2.5陶瓷SMT(4个焊盘) | 10/10 ppm | 10.000兆赫至60.000兆赫 | 3K | 最小尺寸，玻璃密封，低高度 |
|

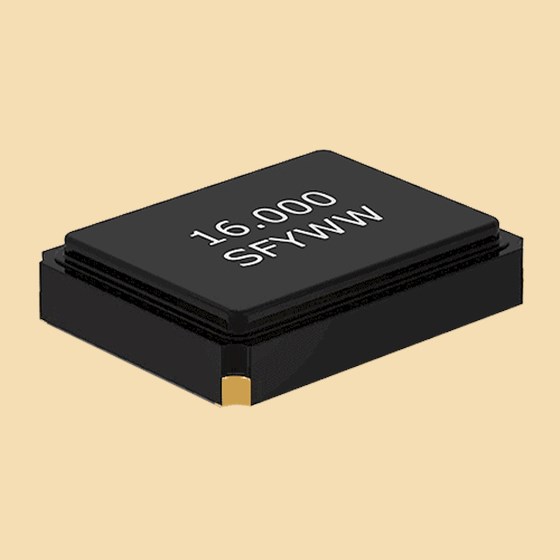

| SXT3G4 |
|
3.2x2.5陶瓷SMT(4片玻璃) | 10/10 ppm | 10.000兆赫至60.000兆赫 | 3K | 最小尺寸，玻璃密封，低高度 |
|

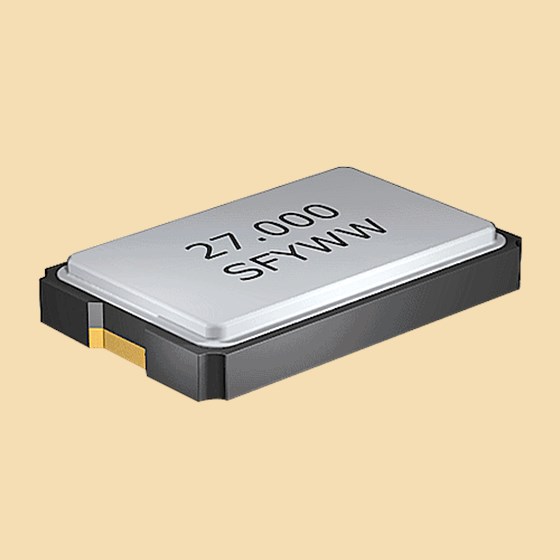

| SXT532 |
|
5.0X3.2陶瓷SMT(2个焊盘) | 10/10 ppm | 8.000兆赫-100.000兆赫 | 1K | 小尺寸 |
|

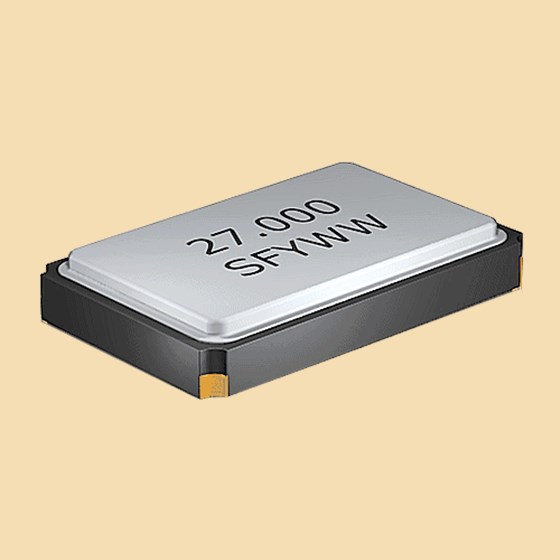

| SXT534 |
|
5.0X3.2陶瓷SMT(2个焊盘) | 10/10 ppm | 7.992兆赫-125.000兆赫 | 1K | 小尺寸 |
|

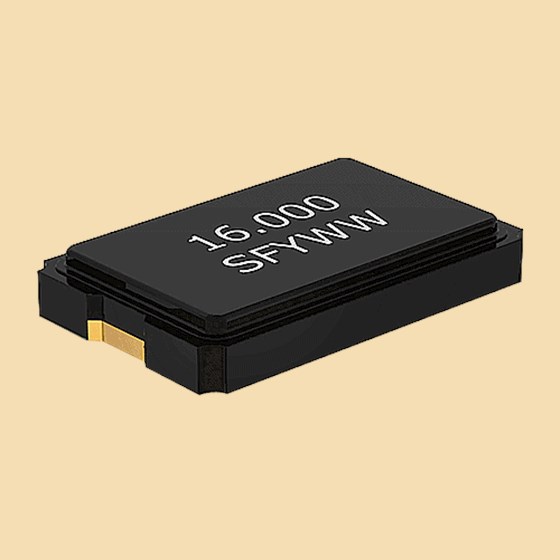

| SXT5G2 |
|
5.0X3.2陶瓷SMT(双面玻璃) | 10/10 ppm | 8.000兆赫至54.000兆赫 | 1K | 小尺寸 |
|

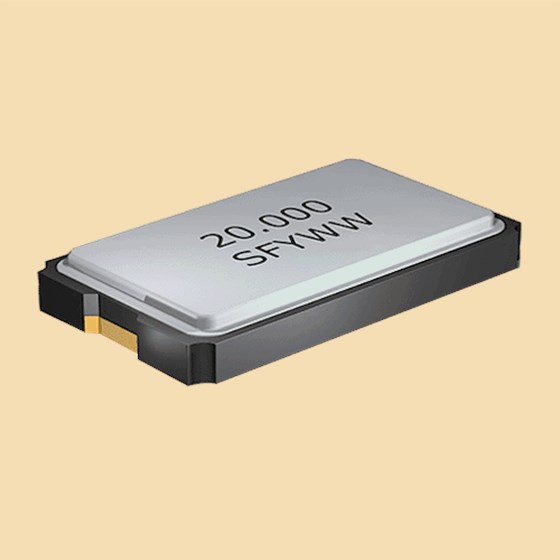

| SXT632 |
|
6.0X3.5陶瓷SMT(2个焊盘) | 10/10 ppm | 7.000兆赫至100.000兆赫 | 1K | 小尺寸 |
|

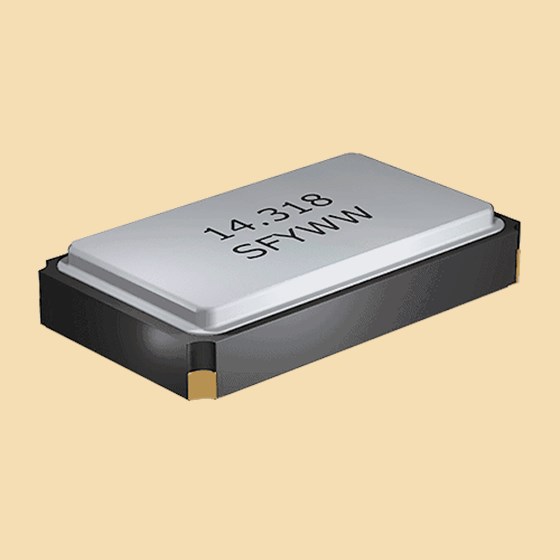

| SXT634 |
|
6.0X3.5陶瓷SMT(4个焊盘) | 10/10 ppm | 8.000兆赫-80.000兆赫 | 1K | 小尺寸 |
|

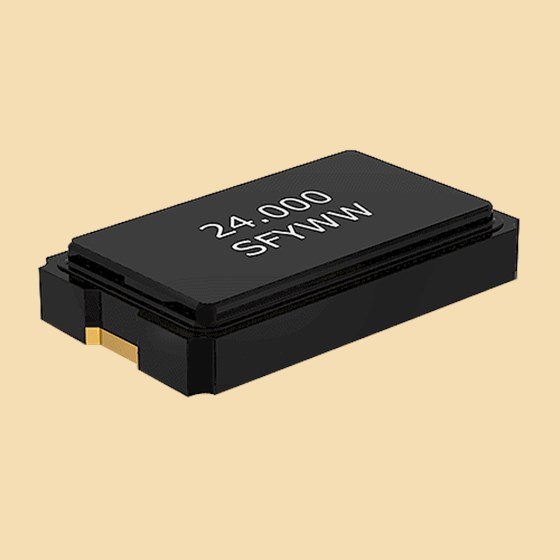

| SXT6G2 |
|
6.0X3.5陶瓷SMT(双面玻璃) | 10/10 ppm | 8.000兆赫-80.000兆赫 | 1K | 低成本、小尺寸 |
|

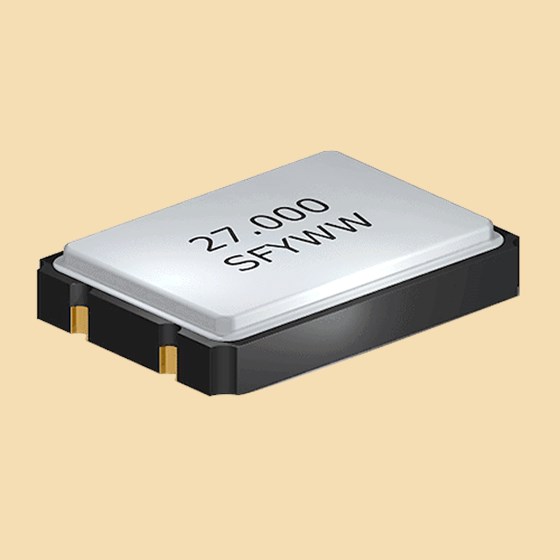

| SXT754 |
|
7.0X5.0陶瓷SMT(4个焊盘) | 10/10 ppm | 6.000兆赫-125.000兆赫 | 1K | 宽频率范围 |
|

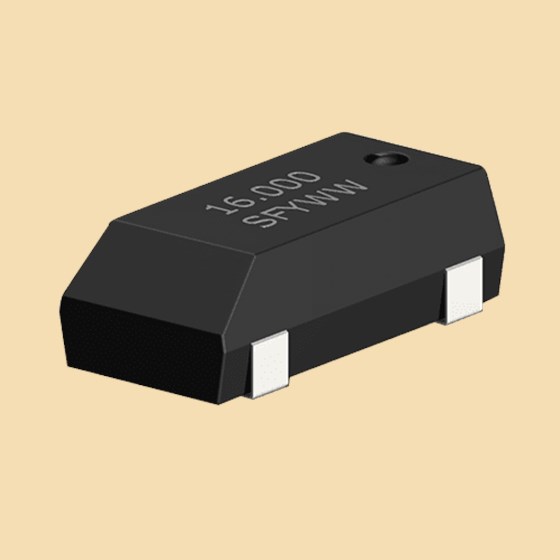

| SXT834 |
|
8.0X3.8塑料贴片(4个焊盘) | 10/10 ppm | 8.000兆赫–54.000兆赫 | 3K | 塑料SMD 4焊盘封装 |
|

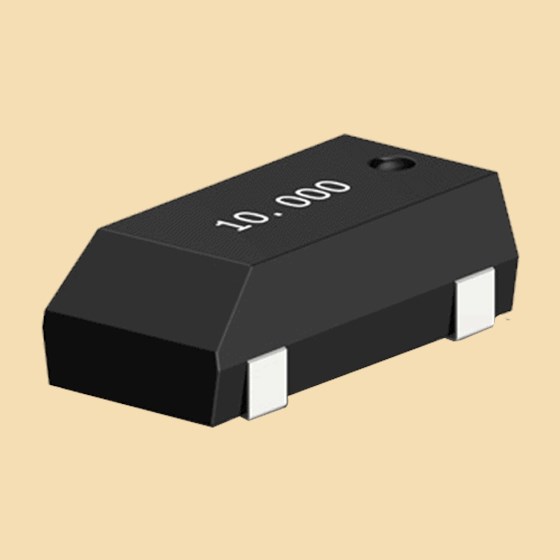

| SXT144 |
|
12.5X4.6塑料SMT(4个焊盘) | 15ppm | 3.579兆赫-27兆赫 | 2K | 塑料SMD 4焊盘封装 |
|

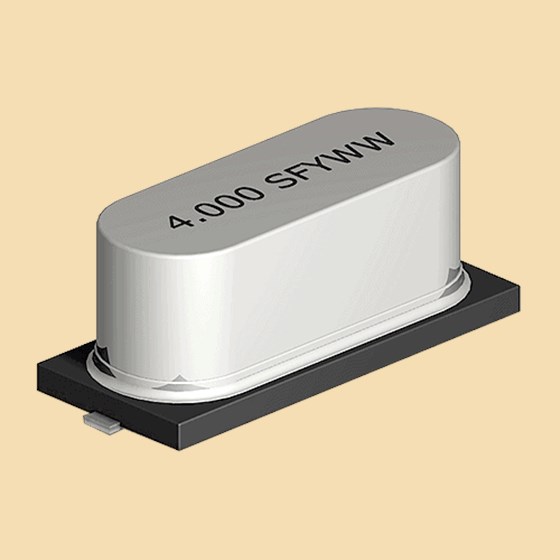

| SXTHM2 |
|
HC-49/美国SMD(2个) | 10/10 ppm | 3.000兆赫至90.000兆赫 | 1K | 低成本、标准封装 |
|
| SXTHM4 |
|
HC-49/美国贴片天线(4个) | 10/10 ppm | 3.000兆赫至90.000兆赫 | 1K | 低成本塑料替代品 |
|

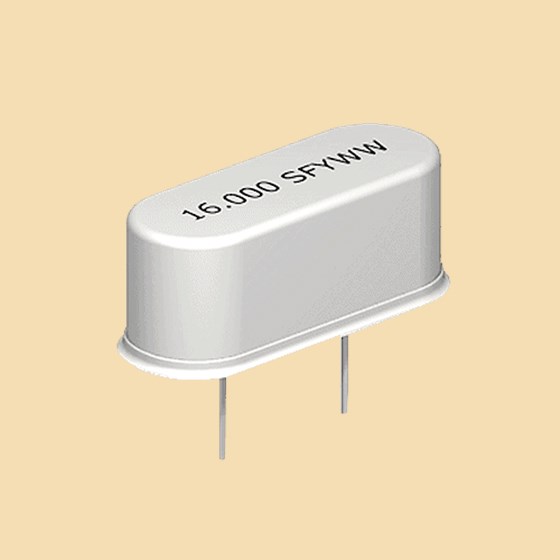

| SXTHS2 |
|
HC-49/美国 | 10/10 ppm | 3.000兆赫至90.000兆赫 | 不适用的 | 低成本、标准封装 |
|

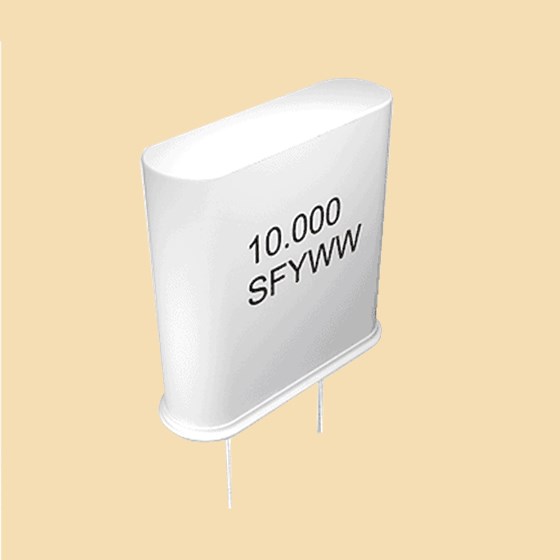

| SXTHU2 |
|
HC-49/U | 10/10 ppm | 1.500兆赫-125.000兆赫 | 不适用的 | 低成本、标准封装 |
|

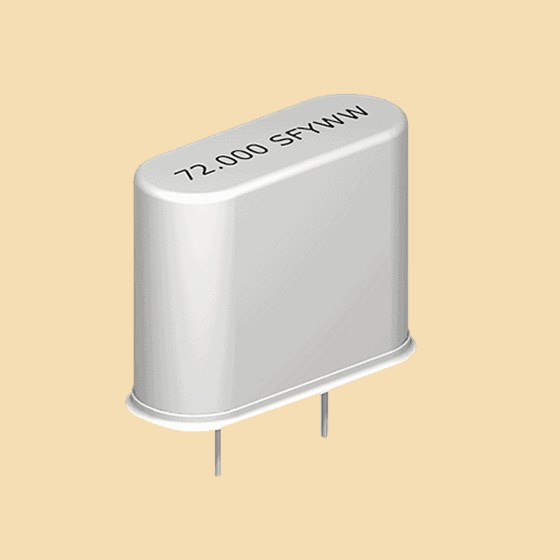

| SXTUM2 |
|
嗯-1 | 10/10 ppm | 8.000兆赫至200.000兆赫 | 不适用的 | 宽频率范围 |
|

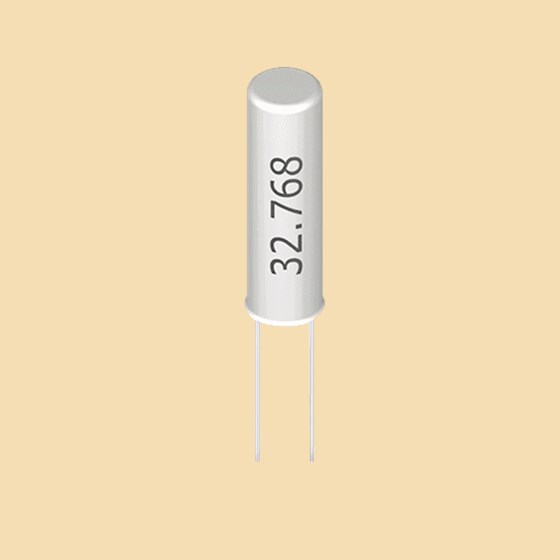

| STF832 |
|
8.3X3.2气缸 | 20ppm | 25.000千赫至200.000千赫 | 不适用的 | 低频 |
|

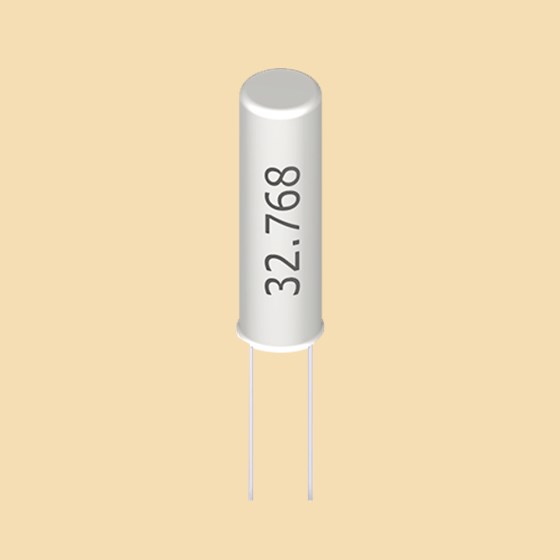

| SCM832 |
|
8.3X3.2气缸 | 20ppm/ 30ppm | 3.579兆赫-90.000兆赫 | 不适用的 | 微型包装 |
|
| SCM132 |
|
10.5X3.2气缸 | 20ppm/ 30ppm | 3.579兆赫-90.000兆赫 | 不适用的 | 微型包装 |
|

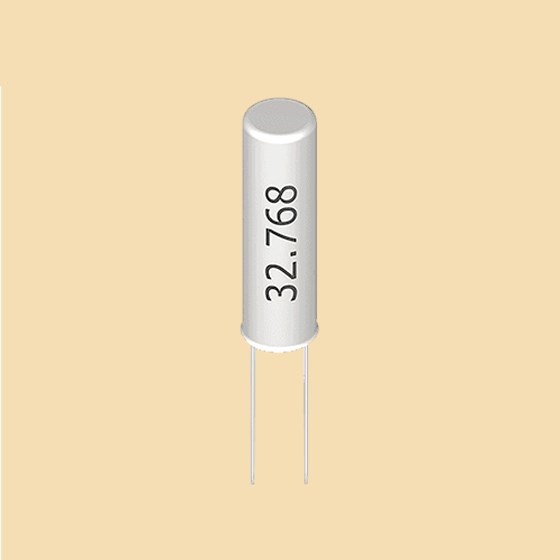

| STF622 |
|
6.2X2.1气缸 | 20ppm | 25.000千赫至200.000千赫 | 不适用的 | 低频 |
|
手表水晶具有压电特性；当施加机械应力时，它们产生电势。它们是当今最常用的压电谐振器。
Suntsu晶体振荡器提供通孔或表面贴装封装，有多种尺寸可供选择。我们提供宽频率范围和许多不同的电压和逻辑选项。从下面列出的数据表中选择一个标准零件号，或者联系我们的销售团队请求您想要的任何定制参数，我们将根据您的特定需求进行设计。
A晶体振荡器是一种电子电路，它利用压电材料振动晶体的机械共振来产生频率非常精确的电信号。该频率通常用于记录时间，为数字集成电路提供稳定的时钟信号，以及稳定无线电发射机和接收机的频率。
Suntsu VCXO的提供通孔或表面贴装封装。我们提供宽频率范围和许多不同的电压和逻辑选项。从下面列出的数据表中选择一个标准零件号，或者联系我们的销售团队请求您想要的任何定制参数，我们将根据您的特定需求进行设计。SUNTSU CRYSTAL QUARTZ原厂编码.
压控晶体振荡器当需要调整工作频率时使用。压控晶体振荡器的频率通常可以变化百万分之一百(ppm ),因为晶体的高Q因子允许在一个频率范围内“牵引”。
使用的原因VCXO调整输出频率，使其与精确的外部基准相匹配(或者可能是其整数倍),或者振荡器驱动的设备可能会产生射频干扰(向其控制输入添加可变电压可以分散干扰频谱，降低干扰程度)。
TCXO
松图·TCXO的VCTCXO提供通孔或表贴封装，有多种尺寸可供选择。我们提供许多不同的电压，并能提供符合Stratum 3标准的零件。从下面列出的数据表中选择一个标准零件号，或者联系我们的销售团队请求您可能需要的任何定制参数，我们将根据您的具体需求进行设计。
温度补偿晶体振荡器使用采样技术来校正晶体振荡器电路、其封装及其环境的温度不足。典型地，校正技术包括SMD晶体坯的运动电感和终端电容的物理和电特性。其知识用于创建校正多项式或算法，该校正多项式或算法又在电路块中实现，并保持比标准振荡器更好的稳定性。
地层3/3E振荡器
Part Number
Manufacturer
Package Size
Load Cap.
Freq. Tolerance
Freq. Stability
Operating Temp.
Frequency
SXT11410CB07-25.000M
Suntsu晶振
1.6X1.2 SMD (4 PAD) CRYSTAL
10pF
±25ppm
±30ppm
0°C - +70°C
25.000M
SXT11410CB07-26.000M
Suntsu晶振
1.6X1.2 SMD (4 PAD) CRYSTAL
10pF
±25ppm
±30ppm
0°C - +70°C
26.000M
SXT11410CB07-27.000M
Suntsu晶振
1.6X1.2 SMD (4 PAD) CRYSTAL
10pF
±25ppm
±30ppm
0°C - +70°C
27.000M
SXT11410CB07-27.120M
Suntsu晶振
1.6X1.2 SMD (4 PAD) CRYSTAL
10pF
±25ppm
±30ppm
0°C - +70°C
27.120M
SXT11410CB07-30.000M
Suntsu晶振
1.6X1.2 SMD (4 PAD) CRYSTAL
10pF
±25ppm
±30ppm
0°C - +70°C
30.000M
SXT11410CB07-32.000M
Suntsu晶振
1.6X1.2 SMD (4 PAD) CRYSTAL
10pF
±25ppm
±30ppm
0°C - +70°C
32.000M
SXT11410CB07-38.400M
Suntsu晶振
1.6X1.2 SMD (4 PAD) CRYSTAL
10pF
±25ppm
±30ppm
0°C - +70°C
38.400M
SXT11410CB07-40.000M
Suntsu晶振
1.6X1.2 SMD (4 PAD) CRYSTAL
10pF
±25ppm
±30ppm
0°C - +70°C
40.000M
SXT11410CB16-24.000M
Suntsu晶振
1.6X1.2 SMD (4 PAD) CRYSTAL
10pF
±25ppm
±30ppm
-10°C - +60°C
24.000M
SXT11410CB16-25.000M
Suntsu晶振
1.6X1.2 SMD (4 PAD) CRYSTAL
10pF
±25ppm
±30ppm
-10°C - +60°C
25.000M
SXT11410CB16-26.000M
Suntsu晶振
1.6X1.2 SMD (4 PAD) CRYSTAL
10pF
±25ppm
±30ppm
-10°C - +60°C
26.000M
SXT11410CB16-27.000M
Suntsu晶振
1.6X1.2 SMD (4 PAD) CRYSTAL
10pF
±25ppm
±30ppm
-10°C - +60°C
27.000M
SXT11410CB16-27.120M
Suntsu晶振
1.6X1.2 SMD (4 PAD) CRYSTAL
10pF
±25ppm
±30ppm
-10°C - +60°C
27.120M
SXT11410CB16-30.000M
Suntsu晶振
1.6X1.2 SMD (4 PAD) CRYSTAL
10pF
±25ppm
±30ppm
-10°C - +60°C
30.000M
SXT11410CB16-32.000M
Suntsu晶振
1.6X1.2 SMD (4 PAD) CRYSTAL
10pF
±25ppm
±30ppm
-10°C - +60°C
32.000M
SXT11410CB16-38.400M
Suntsu晶振
1.6X1.2 SMD (4 PAD) CRYSTAL
10pF
±25ppm
±30ppm
-10°C - +60°C
38.400M
SXT11410CB16-40.000M
Suntsu晶振
1.6X1.2 SMD (4 PAD) CRYSTAL
10pF
±25ppm
±30ppm
-10°C - +60°C
40.000M
SXT11410CB17-24.000M
Suntsu晶振
1.6X1.2 SMD (4 PAD) CRYSTAL
10pF
±25ppm
±30ppm
-10°C - +70°C
24.000M
SXT11410CB17-25.000M
Suntsu晶振
1.6X1.2 SMD (4 PAD) CRYSTAL
10pF
±25ppm
±30ppm
-10°C - +70°C
25.000M
SXT11410CB17-26.000M
Suntsu晶振
1.6X1.2 SMD (4 PAD) CRYSTAL
10pF
±25ppm
±30ppm
-10°C - +70°C
26.000M
SXT11410CB17-27.000M
Suntsu晶振
1.6X1.2 SMD (4 PAD) CRYSTAL
10pF
±25ppm
±30ppm
-10°C - +70°C
27.000M
SXT11410CB17-27.120M
Suntsu晶振
1.6X1.2 SMD (4 PAD) CRYSTAL
10pF
±25ppm
±30ppm
-10°C - +70°C
27.120M
SXT11410CB17-30.000M
Suntsu晶振
1.6X1.2 SMD (4 PAD) CRYSTAL
10pF
±25ppm
±30ppm
-10°C - +70°C
30.000M
SXT11410CB17-32.000M
Suntsu晶振
1.6X1.2 SMD (4 PAD) CRYSTAL
10pF
±25ppm
±30ppm
-10°C - +70°C
32.000M
SXT11410CB17-38.400M
Suntsu晶振
1.6X1.2 SMD (4 PAD) CRYSTAL
10pF
±25ppm
±30ppm
-10°C - +70°C
38.400M
SXT11410CB17-40.000M
Suntsu晶振
1.6X1.2 SMD (4 PAD) CRYSTAL
10pF
±25ppm
±30ppm
-10°C - +70°C
40.000M
SXT11410CB27-24.000M
Suntsu晶振
1.6X1.2 SMD (4 PAD) CRYSTAL
10pF
±25ppm
±30ppm
-20°C - +70°C
24.000M
SXT11410CB27-25.000M
Suntsu晶振
1.6X1.2 SMD (4 PAD) CRYSTAL
10pF
±25ppm
±30ppm
-20°C - +70°C
25.000M
SXT11410CB27-26.000M
Suntsu晶振
1.6X1.2 SMD (4 PAD) CRYSTAL
10pF
±25ppm
±30ppm
-20°C - +70°C
26.000M
SXT11410CB27-27.000M
Suntsu晶振
1.6X1.2 SMD (4 PAD) CRYSTAL
10pF
±25ppm
±30ppm
-20°C - +70°C
27.000M
SXT11410CB27-27.120M
Suntsu晶振
1.6X1.2 SMD (4 PAD) CRYSTAL
10pF
±25ppm
±30ppm
-20°C - +70°C
27.120M
SXT11410CB27-30.000M
Suntsu晶振
1.6X1.2 SMD (4 PAD) CRYSTAL
10pF
±25ppm
±30ppm
-20°C - +70°C
30.000M
SXT11410CB27-32.000M
Suntsu晶振
1.6X1.2 SMD (4 PAD) CRYSTAL
10pF
±25ppm
±30ppm
-20°C - +70°C
32.000M
SXT11410CB27-38.400M
Suntsu晶振
1.6X1.2 SMD (4 PAD) CRYSTAL
10pF
±25ppm
±30ppm
-20°C - +70°C
38.400M
SXT11410CB27-40.000M
Suntsu晶振
1.6X1.2 SMD (4 PAD) CRYSTAL
10pF
±25ppm
±30ppm
-20°C - +70°C
40.000M
SXT11410CB38-24.000M
Suntsu晶振
1.6X1.2 SMD (4 PAD) CRYSTAL
10pF
±25ppm
±30ppm
-30°C - +85°C
24.000M
SXT11410CB38-25.000M
Suntsu晶振
1.6X1.2 SMD (4 PAD) CRYSTAL
10pF
±25ppm
±30ppm
-30°C - +85°C
25.000M
SXT11410CB38-26.000M
Suntsu晶振
1.6X1.2 SMD (4 PAD) CRYSTAL
10pF
±25ppm
±30ppm
-30°C - +85°C
26.000M
SXT11410CB38-27.000M
Suntsu晶振
1.6X1.2 SMD (4 PAD) CRYSTAL
10pF
±25ppm
±30ppm
-30°C - +85°C
27.000M
SXT11410CB38-27.120M
Suntsu晶振
1.6X1.2 SMD (4 PAD) CRYSTAL
10pF
±25ppm
±30ppm
-30°C - +85°C
27.120M
SXT11410CB38-30.000M
Suntsu晶振
1.6X1.2 SMD (4 PAD) CRYSTAL
10pF
±25ppm
±30ppm
-30°C - +85°C
30.000M
SXT11410CB38-32.000M
Suntsu晶振
1.6X1.2 SMD (4 PAD) CRYSTAL
10pF
±25ppm
±30ppm
-30°C - +85°C
32.000M
SXT11410CB38-38.400M
Suntsu晶振
1.6X1.2 SMD (4 PAD) CRYSTAL
10pF
±25ppm
±30ppm
-30°C - +85°C
38.400M
SXT11410CB38-40.000M
Suntsu晶振
1.6X1.2 SMD (4 PAD) CRYSTAL
10pF
±25ppm
±30ppm
-30°C - +85°C
40.000M
SXT11410CB48-24.000M
Suntsu晶振
1.6X1.2 SMD (4 PAD) CRYSTAL
10pF
±25ppm
±30ppm
-40°C - +85°C
24.000M
SXT11410CB48-25.000M
Suntsu晶振
1.6X1.2 SMD (4 PAD) CRYSTAL
10pF
±25ppm
±30ppm
-40°C - +85°C
25.000M
SXT11410CB48-26.000M
Suntsu晶振
1.6X1.2 SMD (4 PAD) CRYSTAL
10pF
±25ppm
±30ppm
-40°C - +85°C
26.000M
SXT11410CB48-27.000M
Suntsu晶振
1.6X1.2 SMD (4 PAD) CRYSTAL
10pF
±25ppm
±30ppm
-40°C - +85°C
27.000M
SXT11410CB48-27.120M
Suntsu晶振
1.6X1.2 SMD (4 PAD) CRYSTAL
10pF
±25ppm
±30ppm
-40°C - +85°C
27.120M
SXT11410CB48-30.000M
Suntsu晶振
1.6X1.2 SMD (4 PAD) CRYSTAL
10pF
±25ppm
±30ppm
-40°C - +85°C
30.000M
SXT11410CB48-32.000M
Suntsu晶振
1.6X1.2 SMD (4 PAD) CRYSTAL
10pF
±25ppm
±30ppm
-40°C - +85°C
32.000M
SXT11410CB48-38.400M
Suntsu晶振
1.6X1.2 SMD (4 PAD) CRYSTAL
10pF
±25ppm
±30ppm
-40°C - +85°C
38.400M
SXT11410CB48-40.000M
Suntsu晶振
1.6X1.2 SMD (4 PAD) CRYSTAL
10pF
±25ppm
±30ppm
-40°C - +85°C
40.000M
SXT11410CC07-24.000M
Suntsu晶振
1.6X1.2 SMD (4 PAD) CRYSTAL
10pF
±25ppm
±25ppm
0°C - +70°C
24.000M
SXT11410CC07-25.000M
Suntsu晶振
1.6X1.2 SMD (4 PAD) CRYSTAL
10pF
±25ppm
±25ppm
0°C - +70°C
25.000M
SXT11410CC07-26.000M
Suntsu晶振
1.6X1.2 SMD (4 PAD) CRYSTAL
10pF
±25ppm
±25ppm
0°C - +70°C
26.000M
SXT11410CC07-27.000M
Suntsu晶振
1.6X1.2 SMD (4 PAD) CRYSTAL
10pF
±25ppm
±25ppm
0°C - +70°C
27.000M
SXT11410CC07-27.120M
Suntsu晶振
1.6X1.2 SMD (4 PAD) CRYSTAL
10pF
±25ppm
±25ppm
0°C - +70°C
27.120M
SXT11410CC07-30.000M
Suntsu晶振
1.6X1.2 SMD (4 PAD) CRYSTAL
10pF
±25ppm
±25ppm
0°C - +70°C
30.000M
SXT11410CC07-32.000M
Suntsu晶振
1.6X1.2 SMD (4 PAD) CRYSTAL
10pF
±25ppm
±25ppm
0°C - +70°C
32.000M
SXT11410CC07-38.400M
Suntsu晶振
1.6X1.2 SMD (4 PAD) CRYSTAL
10pF
±25ppm
±25ppm
0°C - +70°C
38.400M
SXT11410CC07-40.000M
Suntsu晶振
1.6X1.2 SMD (4 PAD) CRYSTAL
10pF
±25ppm
±25ppm
0°C - +70°C
40.000M
SXT11410CC16-24.000M
Suntsu晶振
1.6X1.2 SMD (4 PAD) CRYSTAL
10pF
±25ppm
±25ppm
-10°C - +60°C
24.000M
SXT11410CC16-25.000M
Suntsu晶振
1.6X1.2 SMD (4 PAD) CRYSTAL
10pF
±25ppm
±25ppm
-10°C - +60°C
25.000M
SXT11410CC16-26.000M
Suntsu晶振
1.6X1.2 SMD (4 PAD) CRYSTAL
10pF
±25ppm
±25ppm
-10°C - +60°C
26.000M
SXT11410CC16-27.000M
Suntsu晶振
1.6X1.2 SMD (4 PAD) CRYSTAL
10pF
±25ppm
±25ppm
-10°C - +60°C
27.000M
SXT11410CC16-27.120M
Suntsu晶振
1.6X1.2 SMD (4 PAD) CRYSTAL
10pF
±25ppm
±25ppm
-10°C - +60°C
27.120M
SXT11410CC16-30.000M
Suntsu晶振
1.6X1.2 SMD (4 PAD) CRYSTAL
10pF
±25ppm
±25ppm
-10°C - +60°C
30.000M
SXT11410CC16-32.000M
Suntsu晶振
1.6X1.2 SMD (4 PAD) CRYSTAL
10pF
±25ppm
±25ppm
-10°C - +60°C
32.000M
SXT11410CC16-38.400M
Suntsu晶振
1.6X1.2 SMD (4 PAD) CRYSTAL
10pF
±25ppm
±25ppm
-10°C - +60°C
38.400M
SXT11410CC16-40.000M
Suntsu晶振
1.6X1.2 SMD (4 PAD) CRYSTAL
10pF
±25ppm
±25ppm
-10°C - +60°C
40.000M
SXT11410CC17-24.000M
Suntsu晶振
1.6X1.2 SMD (4 PAD) CRYSTAL
10pF
±25ppm
±25ppm
-10°C - +70°C
24.000M
SXT11410CC17-25.000M
Suntsu晶振
1.6X1.2 SMD (4 PAD) CRYSTAL
10pF
±25ppm
±25ppm
-10°C - +70°C
25.000M
SXT11410CC17-26.000M
Suntsu晶振
1.6X1.2 SMD (4 PAD) CRYSTAL
10pF
±25ppm
±25ppm
-10°C - +70°C
26.000M
SXT11410CC17-27.000M
Suntsu晶振
1.6X1.2 SMD (4 PAD) CRYSTAL
10pF
±25ppm
±25ppm
-10°C - +70°C
27.000M
SXT11410CC17-27.120M
Suntsu晶振
1.6X1.2 SMD (4 PAD) CRYSTAL
10pF
±25ppm
±25ppm
-10°C - +70°C
27.120M
SXT11410CC17-30.000M
Suntsu晶振
1.6X1.2 SMD (4 PAD) CRYSTAL
10pF
±25ppm
±25ppm
-10°C - +70°C
30.000M
SXT11410CC17-32.000M
Suntsu晶振
1.6X1.2 SMD (4 PAD) CRYSTAL
10pF
±25ppm
±25ppm
-10°C - +70°C
32.000M
SXT11410CC17-38.400M
Suntsu晶振
1.6X1.2 SMD (4 PAD) CRYSTAL
10pF
±25ppm
±25ppm
-10°C - +70°C
38.400M
SXT11410CC17-40.000M
Suntsu晶振
1.6X1.2 SMD (4 PAD) CRYSTAL
10pF
±25ppm
±25ppm
-10°C - +70°C
40.000M
SXT11410CC27-24.000M
Suntsu晶振
1.6X1.2 SMD (4 PAD) CRYSTAL
10pF
±25ppm
±25ppm
-20°C - +70°C
24.000M
SXT11410CC27-25.000M
Suntsu晶振
1.6X1.2 SMD (4 PAD) CRYSTAL
10pF
±25ppm
±25ppm
-20°C - +70°C
25.000M
SXT11410CC27-26.000M
Suntsu晶振
1.6X1.2 SMD (4 PAD) CRYSTAL
10pF
±25ppm
±25ppm
-20°C - +70°C
26.000M
SXT11410CC27-27.000M
Suntsu晶振
1.6X1.2 SMD (4 PAD) CRYSTAL
10pF
±25ppm
±25ppm
-20°C - +70°C
27.000M
SXT11410CC27-27.120M
Suntsu晶振
1.6X1.2 SMD (4 PAD) CRYSTAL
10pF
±25ppm
±25ppm
-20°C - +70°C
27.120M
SXT11410CC27-30.000M
Suntsu晶振
1.6X1.2 SMD (4 PAD) CRYSTAL
10pF
±25ppm
±25ppm
-20°C - +70°C
30.000M
SXT11410CC27-32.000M
Suntsu晶振
1.6X1.2 SMD (4 PAD) CRYSTAL
10pF
±25ppm
±25ppm
-20°C - +70°C
32.000M
SXT11410CC27-38.400M
Suntsu晶振
1.6X1.2 SMD (4 PAD) CRYSTAL
10pF
±25ppm
±25ppm
-20°C - +70°C
38.400M
SXT11410CC27-40.000M
Suntsu晶振
1.6X1.2 SMD (4 PAD) CRYSTAL
10pF
±25ppm
±25ppm
-20°C - +70°C
40.000M
SXT11410CC38-24.000M
Suntsu晶振
1.6X1.2 SMD (4 PAD) CRYSTAL
10pF
±25ppm
±25ppm
-30°C - +85°C
24.000M
SXT11410CC38-25.000M
Suntsu晶振
1.6X1.2 SMD (4 PAD) CRYSTAL
10pF
±25ppm
±25ppm
-30°C - +85°C
25.000M
SXT11410CC38-26.000M
Suntsu晶振
1.6X1.2 SMD (4 PAD) CRYSTAL
10pF
±25ppm
±25ppm
-30°C - +85°C
26.000M
SXT11410CC38-27.000M
Suntsu晶振
1.6X1.2 SMD (4 PAD) CRYSTAL
10pF
±25ppm
±25ppm
-30°C - +85°C
27.000M
SXT11410CC38-27.120M
Suntsu晶振
1.6X1.2 SMD (4 PAD) CRYSTAL
10pF
±25ppm
±25ppm
-30°C - +85°C
27.120M
SXT11410CC38-30.000M
Suntsu晶振
1.6X1.2 SMD (4 PAD) CRYSTAL
10pF
±25ppm
±25ppm
-30°C - +85°C
30.000M
SXT11410CC38-32.000M
Suntsu晶振
1.6X1.2 SMD (4 PAD) CRYSTAL
10pF
±25ppm
±25ppm
-30°C - +85°C
32.000M
SXT11410CC38-38.400M
Suntsu晶振
1.6X1.2 SMD (4 PAD) CRYSTAL
10pF
±25ppm
±25ppm
-30°C - +85°C
38.400M
SXT11410CC38-40.000M
Suntsu晶振
1.6X1.2 SMD (4 PAD) CRYSTAL
10pF
±25ppm
±25ppm
-30°C - +85°C
40.000M
SXT11410CC48-24.000M
Suntsu晶振
1.6X1.2 SMD (4 PAD) CRYSTAL
10pF
±25ppm
±25ppm
-40°C - +85°C
24.000M
SXT11410CC48-25.000M
Suntsu晶振
1.6X1.2 SMD (4 PAD) CRYSTAL
10pF
±25ppm
±25ppm
-40°C - +85°C
25.000M
SXT11410CC48-26.000M
Suntsu晶振
1.6X1.2 SMD (4 PAD) CRYSTAL
10pF
±25ppm
±25ppm
-40°C - +85°C
26.000M
SXT11410CC48-27.000M
SUNTSU晶振
1.6X1.2 SMD (4 PAD) CRYSTAL
10pF
±25ppm
±25ppm
-40°C - +85°C
27.000M
SXT11410CC48-27.120M
Suntsu晶振
1.6X1.2 SMD (4 PAD) CRYSTAL
10pF
±25ppm
±25ppm
-40°C - +85°C
27.120M
SXT11410CC48-30.000M
Suntsu晶振
1.6X1.2 SMD (4 PAD) CRYSTAL
10pF
±25ppm
±25ppm
-40°C - +85°C
30.000M
SXT11410CC48-32.000M
Suntsu晶振
1.6X1.2 SMD (4 PAD) CRYSTAL
10pF
±25ppm
±25ppm
-40°C - +85°C
32.000M
SXT11410CC48-38.400M
Suntsu晶振
1.6X1.2 SMD (4 PAD) CRYSTAL
10pF
±25ppm
±25ppm
-40°C - +85°C
38.400M
SXT11410CC48-40.000M
Suntsu晶振
1.6X1.2 SMD (4 PAD) CRYSTAL
10pF
±25ppm
±25ppm
-40°C - +85°C
40.000M
SXT11410DA07-24.000M
Suntsu晶振
1.6X1.2 SMD (4 PAD) CRYSTAL
10pF
±20ppm
±50ppm
0°C - +70°C
24.000M
SXT11410DA07-25.000M
Suntsu晶振
1.6X1.2 SMD (4 PAD) CRYSTAL
10pF
±20ppm
±50ppm
0°C - +70°C
25.000M
SXT11410DA07-26.000M
Suntsu晶振
1.6X1.2 SMD (4 PAD) CRYSTAL
10pF
±20ppm
±50ppm
0°C - +70°C
26.000M
SXT11410DA07-27.000M
Suntsu晶振
1.6X1.2 SMD (4 PAD) CRYSTAL
10pF
±20ppm
±50ppm
0°C - +70°C
27.000M
SXT11410DA07-27.120M
Suntsu晶振
1.6X1.2 SMD (4 PAD) CRYSTAL
10pF
±20ppm
±50ppm
0°C - +70°C
27.120M
SXT11410DA07-30.000M
Suntsu晶振
1.6X1.2 SMD (4 PAD) CRYSTAL
10pF
±20ppm
±50ppm
0°C - +70°C
30.000M
SXT11410DA07-32.000M
Suntsu晶振
1.6X1.2 SMD (4 PAD) CRYSTAL
10pF
±20ppm
±50ppm
0°C - +70°C
32.000M
SXT11410DA07-38.400M
Suntsu晶振
1.6X1.2 SMD (4 PAD) CRYSTAL
10pF
±20ppm
±50ppm
0°C - +70°C
38.400M
SXT11410DA07-40.000M
Suntsu晶振
1.6X1.2 SMD (4 PAD) CRYSTAL
10pF
±20ppm
±50ppm
0°C - +70°C
40.000M
SXT11410DA16-24.000M
Suntsu晶振
1.6X1.2 SMD (4 PAD) CRYSTAL
10pF
±20ppm
±50ppm
-10°C - +60°C
24.000M
SXT11410DA16-25.000M
Suntsu晶振
1.6X1.2 SMD (4 PAD) CRYSTAL
10pF
±20ppm
±50ppm
-10°C - +60°C
25.000M
SXT11410DA16-26.000M
Suntsu晶振
1.6X1.2 SMD (4 PAD) CRYSTAL
10pF
±20ppm
±50ppm
-10°C - +60°C
26.000M
SXT11410DA16-27.000M
Suntsu晶振
1.6X1.2 SMD (4 PAD) CRYSTAL
10pF
±20ppm
±50ppm
-10°C - +60°C
27.000M
SXT11410DA16-27.120M
Suntsu晶振
1.6X1.2 SMD (4 PAD) CRYSTAL
10pF
±20ppm
±50ppm
-10°C - +60°C
27.120M
SXT11410DA16-30.000M
Suntsu晶振
1.6X1.2 SMD (4 PAD) CRYSTAL
10pF
±20ppm
±50ppm
-10°C - +60°C
30.000M
SXT11410DA16-32.000M
Suntsu晶振
1.6X1.2 SMD (4 PAD) CRYSTAL
10pF
±20ppm
±50ppm
-10°C - +60°C
32.000M
SXT11410DA16-38.400M
Suntsu晶振
1.6X1.2 SMD (4 PAD) CRYSTAL
10pF
±20ppm
±50ppm
-10°C - +60°C
38.400M
SXT11410DA16-40.000M
Suntsu晶振
1.6X1.2 SMD (4 PAD) CRYSTAL
10pF
±20ppm
±50ppm
-10°C - +60°C
40.000M
SXT11410DA17-24.000M
Suntsu晶振
1.6X1.2 SMD (4 PAD) CRYSTAL
10pF
±20ppm
±50ppm
-10°C - +70°C
24.000M
SXT11410DA17-25.000M
Suntsu晶振
1.6X1.2 SMD (4 PAD) CRYSTAL
10pF
±20ppm
±50ppm
-10°C - +70°C
25.000M
SXT11410DA17-26.000M
Suntsu晶振
1.6X1.2 SMD (4 PAD) CRYSTAL
10pF
±20ppm
±50ppm
-10°C - +70°C
26.000M
SXT11410DA17-27.000M
Suntsu晶振
1.6X1.2 SMD (4 PAD) CRYSTAL
10pF
±20ppm
±50ppm
-10°C - +70°C
27.000M
SXT11410DA17-27.120M
Suntsu晶振
1.6X1.2 SMD (4 PAD) CRYSTAL
10pF
±20ppm
±50ppm
-10°C - +70°C
27.120M
SXT11410DA17-30.000M
Suntsu晶振
1.6X1.2 SMD (4 PAD) CRYSTAL
10pF
±20ppm
±50ppm
-10°C - +70°C
30.000M
SXT11410DA17-32.000M
Suntsu晶振
1.6X1.2 SMD (4 PAD) CRYSTAL
10pF
±20ppm
±50ppm
-10°C - +70°C
32.000M
SXT11410DA17-38.400M
Suntsu晶振
1.6X1.2 SMD (4 PAD) CRYSTAL
10pF
±20ppm
±50ppm
-10°C - +70°C
38.400M
SXT11410DA17-40.000M
Suntsu晶振
1.6X1.2 SMD (4 PAD) CRYSTAL
10pF
±20ppm
±50ppm
-10°C - +70°C
40.000M
SXT11410DA27-24.000M
Suntsu晶振
1.6X1.2 SMD (4 PAD) CRYSTAL
10pF
±20ppm
±50ppm
-20°C - +70°C
24.000M
SXT11410DA27-25.000M
Suntsu晶振
1.6X1.2 SMD (4 PAD) CRYSTAL
10pF
±20ppm
±50ppm
-20°C - +70°C
25.000M
SXT11410DA27-26.000M
Suntsu晶振
1.6X1.2 SMD (4 PAD) CRYSTAL
10pF
±20ppm
±50ppm
-20°C - +70°C
26.000M
SXT11410DA27-27.000M
Suntsu晶振
1.6X1.2 SMD (4 PAD) CRYSTAL
10pF
±20ppm
±50ppm
-20°C - +70°C
27.000M
SXT11410DA27-27.120M
Suntsu晶振
1.6X1.2 SMD (4 PAD) CRYSTAL
10pF
±20ppm
±50ppm
-20°C - +70°C
27.120M
SXT11410DA27-30.000M
Suntsu晶振
1.6X1.2 SMD (4 PAD) CRYSTAL
10pF
±20ppm
±50ppm
-20°C - +70°C
30.000M
SXT11410DA27-32.000M
Suntsu晶振
1.6X1.2 SMD (4 PAD) CRYSTAL
10pF
±20ppm
±50ppm
-20°C - +70°C
32.000M
SXT11410DA27-38.400M
Suntsu晶振
1.6X1.2 SMD (4 PAD) CRYSTAL
10pF
±20ppm
±50ppm
-20°C - +70°C
38.400M
SXT11410DA27-40.000M
Suntsu晶振
1.6X1.2 SMD (4 PAD) CRYSTAL
10pF
±20ppm
±50ppm
-20°C - +70°C
40.000M
SXT11410DA38-24.000M
Suntsu晶振
1.6X1.2 SMD (4 PAD) CRYSTAL
10pF
±20ppm
±50ppm
-30°C - +85°C
24.000M
SXT11410DA38-25.000M
Suntsu晶振
1.6X1.2 SMD (4 PAD) CRYSTAL
10pF
±20ppm
±50ppm
-30°C - +85°C
25.000M
SXT11410DA38-26.000M
Suntsu晶振
1.6X1.2 SMD (4 PAD) CRYSTAL
10pF
±20ppm
±50ppm
-30°C - +85°C
26.000M
SXT11410DA38-27.000M
Suntsu晶振
1.6X1.2 SMD (4 PAD) CRYSTAL
10pF
±20ppm
±50ppm
-30°C - +85°C
27.000M
SXT11410DA38-27.120M
Suntsu晶振
1.6X1.2 SMD (4 PAD) CRYSTAL
10pF
±20ppm
±50ppm
-30°C - +85°C
27.120M
SXT11410DA38-30.000M
Suntsu晶振
1.6X1.2 SMD (4 PAD) CRYSTAL
10pF
±20ppm
±50ppm
-30°C - +85°C
30.000M
SXT11410DA38-32.000M
Suntsu晶振
1.6X1.2 SMD (4 PAD) CRYSTAL
10pF
±20ppm
±50ppm
-30°C - +85°C
32.000M
SXT11410DA38-38.400M
Suntsu晶振
1.6X1.2 SMD (4 PAD) CRYSTAL
10pF
±20ppm
±50ppm
-30°C - +85°C
38.400M
SXT11410DA38-40.000M
Suntsu晶振
1.6X1.2 SMD (4 PAD) CRYSTAL
10pF
±20ppm
±50ppm
-30°C - +85°C
40.000M
SXT11410DA48-24.000M
Suntsu晶振
1.6X1.2 SMD (4 PAD) CRYSTAL
10pF
±20ppm
±50ppm
-40°C - +85°C
24.000M
SXT11410DA48-25.000M
Suntsu晶振
1.6X1.2 SMD (4 PAD) CRYSTAL
10pF
±20ppm
±50ppm
-40°C - +85°C
25.000M
SXT11410DA48-26.000M
Suntsu晶振
1.6X1.2 SMD (4 PAD) CRYSTAL
10pF
±20ppm
±50ppm
-40°C - +85°C
26.000M
SXT11410DA48-27.000M
Suntsu晶振
1.6X1.2 SMD (4 PAD) CRYSTAL
10pF
±20ppm
±50ppm
-40°C - +85°C
27.000M
SXT11410DA48-27.120M
Suntsu晶振
1.6X1.2 SMD (4 PAD) CRYSTAL
10pF
±20ppm
±50ppm
-40°C - +85°C
27.120M
SXT11410DA48-30.000M
Suntsu晶振
1.6X1.2 SMD (4 PAD) CRYSTAL
10pF
±20ppm
±50ppm
-40°C - +85°C
30.000M
SXT11410DA48-32.000M
Suntsu晶振
1.6X1.2 SMD (4 PAD) CRYSTAL
10pF
±20ppm
±50ppm
-40°C - +85°C
32.000M
Suntsu电子公司设计了定制TXCOs和OCXO这是专门针对第三层和3E层的。第三层TCXOs采用小型陶瓷SMD封装，通过卷带和卷轴交付。Stratum 3时钟用于在正常工作条件下跟踪输入，但范围比Stratum 2更宽。stratum 3E ocxo针对IEEE-1855v2时序应用进行了优化，例如网络同步时钟、相干光时钟和抖动消除器。
OCXO
OCXO晶振的采用通孔封装，有多种尺寸可供选择。我们提供许多不同的电压和逻辑选项，并可提供800ppt稳定性的器件。从下面列出的数据表中选择一个标准零件号，或者联系我们的销售团队请求您想要的任何定制参数，我们将根据您的特定需求进行设计。
恒温晶体振荡器使用温控室将振荡器内部的石英晶体保持在恒定温度，以防止由于外部温度变化而导致频率变化。OCXO的通常用于控制无线电发射机、蜂窝基站、军事通信设备的频率，以及需要晶体提供最高频率稳定性的测量应用。
Suntsu铷振荡器有多种封装可供选择。从下面列出的数据表中选择一个标准零件号，或者联系我们的销售团队请求您想要的任何定制参数，我们将根据您的特定需求进行设计。
铷振荡器是一种原子钟，是已知最精确的时间标准，用作时间分配服务来控制电信基础设施、电视广播和全球导航卫星系统(GPS)等。
瑞斯克C33xx有源晶振,C3390-14.318180低抖动晶振
Crystek振荡器C3291晶振,C3291-3.686400有源贴片晶振
Crystek瑞斯克振荡器C33,C3390-1.843200低相位噪声晶振
