FR系列VCXO采用7050mm陶瓷封装,FRXDSL035,压控晶体振荡器,ECERA有源晶振

2022-07-08 15:43:06 康华尔电子

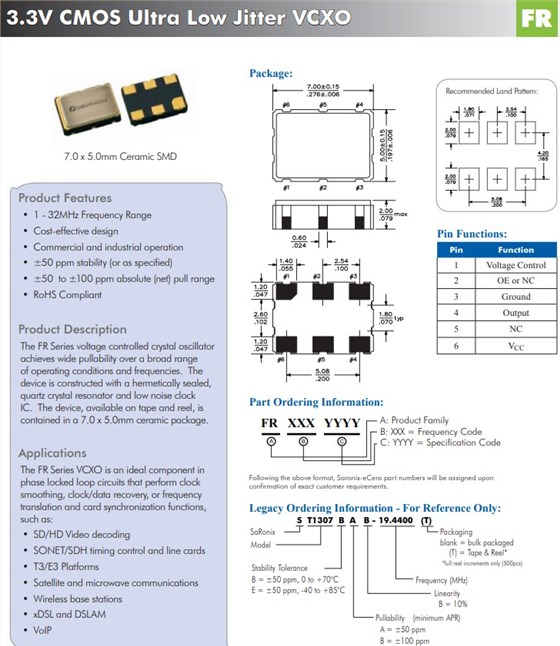

亚陶晶振FR系列压控晶体振荡器在广泛的工作条件和频率范围内实现了广泛的可拉性。该器件由密封的石英晶体谐振器和低噪声时钟IC构成。该器件采用卷带包装，采用7.0x5.0mm陶瓷封装。FR系列VCXO是执行时钟平滑、时钟/数据恢复或频率转换和卡同步功能的锁相环电路中的理想组件

特征：
频率范围：1至32MHz有源晶振
高性价比的设计
商业和工业运营
±50ppm稳定性（或按规定）
±50至±100ppm绝对（净）牵引范围
符合RoHS标准
应用：
标清/高清视频解码
SONET/SDH时序控制和线卡
T3/E3平台
卫星和微波通信
无线基站
xDSL和DSLAM
网络电话

FR系列VCXO采用7050mm陶瓷封装,FRXDSL035,压控晶体振荡器,ECERA有源晶振

Manufacturer Part Number原厂代码 Manufacturer品牌 Series型号 Frequency 频率 Frequency Stability频率稳定度 Operating Temperature 工作温度
FNETHE025 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 25MHz ±25ppm -20°C ~ 70°C
FNETHE025 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 25MHz ±25ppm -20°C ~ 70°C
FNETHE025 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 25MHz ±25ppm -20°C ~ 70°C
FNSURV027 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 27MHz ±30ppm -20°C ~ 70°C
FNSURV027 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 27MHz ±30ppm -20°C ~ 70°C
FNSURV027 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 27MHz ±30ppm -20°C ~ 70°C
FNGEPO002 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 2.048MHz ±50ppm -20°C ~ 70°C
FNGEPO002 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 2.048MHz ±50ppm -20°C ~ 70°C
FNGEPO002 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 2.048MHz ±50ppm -20°C ~ 70°C
FKSSD1025 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 25MHz ±25ppm -10°C ~ 70°C
FKSSD1025 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 25MHz ±25ppm -10°C ~ 70°C
FKSSD1025 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 25MHz ±25ppm -10°C ~ 70°C
UJWIFI026 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 26MHz ±20ppm -30°C ~ 85°C
UJWIFI026 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 26MHz ±20ppm -30°C ~ 85°C
UJWIFI026 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 26MHz ±20ppm -30°C ~ 85°C
FNEPON125 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 125MHz ±50ppm -20°C ~ 70°C
FNEPON125 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 125MHz ±50ppm -20°C ~ 70°C
FNEPON125 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 125MHz ±50ppm -20°C ~ 70°C
FK1330001Z Diodes Incorporated SaRonix-eCera™ FK 13.3333MHz ±25ppm -40°C ~ 85°C
FK1330001Z Diodes Incorporated SaRonix-eCera™ FK 13.3333MHz ±25ppm -40°C ~ 85°C
FK1330001Z Diodes Incorporated SaRonix-eCera™ FK 13.3333MHz ±25ppm -40°C ~ 85°C
FJ2400011 Diodes Incorporated SaRonix-eCera™ FJ 24MHz ±50ppm -40°C ~ 85°C
FJ2400011 Diodes Incorporated SaRonix-eCera™ FJ 24MHz ±50ppm -40°C ~ 85°C
FJ2400011 Diodes Incorporated SaRonix-eCera™ FJ 24MHz ±50ppm -40°C ~ 85°C
2

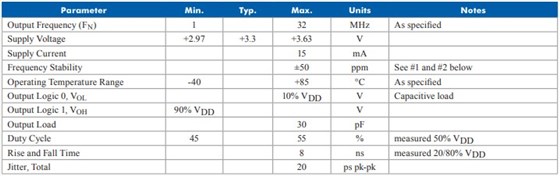

Product Parameters

ProductSeries FR_3
Family VCXO
Legacy PN ST1307
Output Logic CMOS
SupplyVoltage 3.3
PullRange 50 to 100 ppm
Freq Range (MHz) 1 to 66
Jitter RMS (ps) <2 ps RMS
Package Type Ceramic Seam
Package Size (mm) 7.0 x 5.0 x 2.0
Pads 6
NotRecommended 0

FR系列VCXO采用7050mm陶瓷封装,FRXDSL035,压控晶体振荡器,ECERA有源晶振

产品参数：

产品系列 FR_3
家庭 VCXO晶振
旧版 PN ST1307
输出逻辑 CMOS
电源电压 3.3V
拉距 50至100ppm
频率范围 1MHz至66MHz
抖动均方根 (ps) <2 ps RMS
包装类型 陶瓷缝
包装尺寸 7.0x5.0x2.0mm
垫 6脚
不建议 0

FJ2400002 Diodes Incorporated SaRonix-eCera™ FJ 24MHz ±50ppm -40°C ~ 85°C
FJ2400002 Diodes Incorporated SaRonix-eCera™ FJ 24MHz ±50ppm -40°C ~ 85°C
FJ2400002 Diodes Incorporated SaRonix-eCera™ FJ 24MHz ±50ppm -40°C ~ 85°C
FN2500149 Diodes Incorporated SaRonix-eCera™ FN 25MHz ±50ppm -40°C ~ 85°C
FN2500149 Diodes Incorporated SaRonix-eCera™ FN 25MHz ±50ppm -40°C ~ 85°C
FN2500149 Diodes Incorporated SaRonix-eCera™ FN 25MHz ±50ppm -40°C ~ 85°C
SXGPON155 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 155.52MHz ±50ppm -40°C ~ 85°C
SXGPON155 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 155.52MHz ±50ppm -40°C ~ 85°C
SXGPON155 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 155.52MHz ±50ppm -40°C ~ 85°C
HX2513F0026.000000 Diodes Incorporated SaRonix-eCera™ HX 26MHz ±50ppm -40°C ~ 105°C
HX2513F0026.000000 Diodes Incorporated SaRonix-eCera™ HX 26MHz ±50ppm -40°C ~ 105°C
HX2513F0026.000000 Diodes Incorporated SaRonix-eCera™ HX 26MHz ±50ppm -40°C ~ 105°C
HX3125006Q Diodes Incorporated SaRonix-eCera™ HX 25MHz ±30ppm -40°C ~ 105°C
HX3125006Q Diodes Incorporated SaRonix-eCera™ HX 25MHz ±30ppm -40°C ~ 105°C
HX3125006Q Diodes Incorporated SaRonix-eCera™ HX 25MHz ±30ppm -40°C ~ 105°C
NX3211C0125.000000 Diodes Incorporated SaRonix-eCera™ NX 125MHz ±50ppm -20°C ~ 70°C
NX3211C0125.000000 Diodes Incorporated SaRonix-eCera™ NX 125MHz ±50ppm -20°C ~ 70°C
NX3211C0125.000000 Diodes Incorporated SaRonix-eCera™ NX 125MHz ±50ppm -20°C ~ 70°C
FJ1600002 Diodes Incorporated SaRonix-eCera™ FJ 16MHz ±50ppm -20°C ~ 70°C
FJ1600002 Diodes Incorporated SaRonix-eCera™ FJ 16MHz ±50ppm -20°C ~ 70°C
FJ1600002 Diodes Incorporated SaRonix-eCera™ FJ 16MHz ±50ppm -20°C ~ 70°C
JX7011D0070.656000 Diodes Incorporated SaRonix-eCera™ JX 70.656MHz ±25ppm -40°C ~ 85°C
JX7011D0070.656000 Diodes Incorporated SaRonix-eCera™ JX 70.656MHz ±25ppm -40°C ~ 85°C
JX7011D0070.656000 Diodes Incorporated SaRonix-eCera™ JX 70.656MHz ±25ppm -40°C ~ 85°C
UJ2600007Z Diodes Incorporated SaRonix-eCera™ UJ 26MHz ±20ppm -20°C ~ 70°C
1

我们的振荡器是低抖动、高度稳定的振荡器模块，将成熟的石英晶体谐振器技术与领先的时钟IC技术相结合。我们的电压控制振荡器提供CMOS/TTL、LVPECL或LVDS输出逻辑，可为各种应用（包括 WiFi、WiMax、PON和SONET/SDH 等电信标准）实现非常严格的±20 ppm 整体精度。此外，一些振荡器产品具有电压控制功能，可以在线调整输出频率，用于数据信号采集、时钟重定时和抖动衰减或频率合成

FR系列VCXO采用7050mm陶瓷封装,FRXDSL035,压控晶体振荡器,ECERA有源晶振

UJ2600007Z Diodes Incorporated SaRonix-eCera™ UJ 26MHz ±20ppm -20°C ~ 70°C
UJ2600007Z Diodes Incorporated SaRonix-eCera™ UJ 26MHz ±20ppm -20°C ~ 70°C
FJ1120001Z Diodes Incorporated SaRonix-eCera™ FJ 11.2896MHz ±25ppm -40°C ~ 85°C
FJ1120001Z Diodes Incorporated SaRonix-eCera™ FJ 11.2896MHz ±25ppm -40°C ~ 85°C
FJ1120001Z Diodes Incorporated SaRonix-eCera™ FJ 11.2896MHz ±25ppm -40°C ~ 85°C
FDC500026 Diodes Incorporated SaRonix-eCera™ FD 125MHz ±50ppm -20°C ~ 70°C
FDC500026 Diodes Incorporated SaRonix-eCera™ FD 125MHz ±50ppm -20°C ~ 70°C
FDC500026 Diodes Incorporated SaRonix-eCera™ FD 125MHz ±50ppm -20°C ~ 70°C
HX7011C0025.000000 Diodes Incorporated SaRonix-eCera™ HX 25MHz ±25ppm -40°C ~ 105°C
HX7011C0025.000000 Diodes Incorporated SaRonix-eCera™ HX 25MHz ±25ppm -40°C ~ 105°C
HX7011C0025.000000 Diodes Incorporated SaRonix-eCera™ HX 25MHz ±25ppm -40°C ~ 105°C
NX5011B0125.000000 Diodes Incorporated SaRonix-eCera™ NX 125MHz ±25ppm -20°C ~ 70°C
NX5011B0125.000000 Diodes Incorporated SaRonix-eCera™ NX 125MHz ±25ppm -20°C ~ 70°C
NX5011B0125.000000 Diodes Incorporated SaRonix-eCera™ NX 125MHz ±25ppm -20°C ~ 70°C
FNA000088Z Diodes Incorporated SaRonix-eCera™ FN 100MHz ±50ppm -40°C ~ 85°C
FNA000088Z Diodes Incorporated SaRonix-eCera™ FN 100MHz ±50ppm -40°C ~ 85°C
FNA000088Z Diodes Incorporated SaRonix-eCera™ FN 100MHz ±50ppm -40°C ~ 85°C
FNA000065 Diodes Incorporated SaRonix-eCera™ FN 100MHz ±25ppm -20°C ~ 70°C
FNA000065 Diodes Incorporated SaRonix-eCera™ FN 100MHz ±25ppm -20°C ~ 70°C
FNA000065 Diodes Incorporated SaRonix-eCera™ FN 100MHz ±25ppm -20°C ~ 70°C
NX71C50003 Diodes Incorporated SaRonix-eCera™ NX 125MHz ±25ppm -40°C ~ 85°C
NX71C50003 Diodes Incorporated SaRonix-eCera™ NX 125MHz ±25ppm -40°C ~ 85°C
NX71C50003 Diodes Incorporated SaRonix-eCera™ NX 125MHz ±25ppm -40°C ~ 85°C
FNC500131 Diodes Incorporated SaRonix-eCera™ FN 125MHz ±50ppm -40°C ~ 85°C
FNC500131 Diodes Incorporated SaRonix-eCera™ FN 125MHz ±50ppm -40°C ~ 85°C

压控晶振（VCXO）是通过红外加控制电压使振荡效率可变或是可以调制的石英晶体振荡器，其振荡频率由晶体决定，可用控制电压在小范围内进行频率调整。VCXO大多用于锁相技术、频率负反馈调制的目的。 控制电压范围一般为0V至2V或0V至3V。VCXO的调谐范围为±100ppm至±200ppm。

FR系列VCXO采用7050mm陶瓷封装,FRXDSL035,压控晶体振荡器,ECERA有源晶振

FNC500131 Diodes Incorporated SaRonix-eCera™ FN 125MHz ±50ppm -40°C ~ 85°C
NX71C50001 Diodes Incorporated SaRonix-eCera™ NX 125MHz ±20ppm -20°C ~ 70°C
NX71C50001 Diodes Incorporated SaRonix-eCera™ NX 125MHz ±20ppm -20°C ~ 70°C
NX71C50001 Diodes Incorporated SaRonix-eCera™ NX 125MHz ±20ppm -20°C ~ 70°C
FM3900001Z Diodes Incorporated SaRonix-eCera™ FM 39.0625MHz ±50ppm -40°C ~ 85°C
FM3900001Z Diodes Incorporated SaRonix-eCera™ FM 39.0625MHz ±50ppm -40°C ~ 85°C
FM3900001Z Diodes Incorporated SaRonix-eCera™ FM 39.0625MHz ±50ppm -40°C ~ 85°C
FKA000018Z Diodes Incorporated SaRonix-eCera™ FK 100MHz ±50ppm -40°C ~ 85°C
FKA000018Z Diodes Incorporated SaRonix-eCera™ FK 100MHz ±50ppm -40°C ~ 85°C
FKA000018Z Diodes Incorporated SaRonix-eCera™ FK 100MHz ±50ppm -40°C ~ 85°C
HX3124501Q Diodes Incorporated SaRonix-eCera™ HX 24.545452MHz ±25ppm -40°C ~ 105°C
HX3124501Q Diodes Incorporated SaRonix-eCera™ HX 24.545452MHz ±25ppm -40°C ~ 105°C
HX3124501Q Diodes Incorporated SaRonix-eCera™ HX 24.545452MHz ±25ppm -40°C ~ 105°C
HX31330001 Diodes Incorporated SaRonix-eCera™ HX 33MHz ±50ppm -40°C ~ 90°C
HX31330001 Diodes Incorporated SaRonix-eCera™ HX 33MHz ±50ppm -40°C ~ 90°C
HX31330001 Diodes Incorporated SaRonix-eCera™ HX 33MHz ±50ppm -40°C ~ 90°C
HX3212F0040.000000 Diodes Incorporated SaRonix-eCera™ HX 40MHz ±50ppm -40°C ~ 105°C
HX3212F0040.000000 Diodes Incorporated SaRonix-eCera™ HX 40MHz ±50ppm -40°C ~ 105°C
HX3212F0040.000000 Diodes Incorporated SaRonix-eCera™ HX 40MHz ±50ppm -40°C ~ 105°C
SX10GE156 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 156.25MHz ±50ppm -40°C ~ 85°C
SX10GE156 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 156.25MHz ±50ppm -40°C ~ 85°C
SX10GE156 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 156.25MHz ±50ppm -40°C ~ 85°C
HX3127001Q Diodes Incorporated SaRonix-eCera™ HX 27MHz ±25ppm -40°C ~ 105°C
HX3127001Q Diodes Incorporated SaRonix-eCera™ HX 27MHz ±25ppm -40°C ~ 105°C
HX3127001Q Diodes Incorporated SaRonix-eCera™ HX 27MHz ±25ppm -40°C ~ 105°C

FR系列VCXO采用7050mm陶瓷封装,FRXDSL035,压控晶体振荡器,ECERA有源晶振

FR 3.3V ST1307 CMOS 1 to 66 <2 ps RMS Ceramic Seam 7.0x5.0x2.0 6 Fund Base, Phase Jitter < 1ps
LR 3.3V None LVDS 19.44 to 800 <3 ps RMS Ceramic Seam 7.0x5.0x2.0 6高频
PR 3.3V S1577 PECL 19.44 to 800 <3 ps RMS Ceramic Seam 7.0x5.0x2.0 6高频
YD 3.3V None CMOS 1 to 66 <2 ps RMS Ceramic Seam 5.0 x 3.2x1.3 4 超低抖动晶振
YJ 3.3V None CMOS 1 to 52 <2 ps RMS Ceramic Seam 2.5 x 2.0x0.9 4 超低抖动
YK 3.3V None CMOS 1 to 66 <2 ps RMS Ceramic Seam 3.2 x 2.5x1.0 4 超低抖动
YN 3.3V ST1307 CMOS 66 to 166 <2 ps RMS Ceramic Seam 7.0x 5.0x2.0 6 PLL Base, 相位抖动 > 1ps
