1XSF033333ARA,DSO221SR多媒体设备晶振,大真空CMOS输出晶振，尺寸2.5x2.0mm，频率33.333MHZ，输出逻辑CMOS，日本进口晶振，KDS石英振荡子，贴片有源晶振，2520mm有源晶振，石英晶体振荡器，有源晶体振荡器，oscillator Crystal，低电压有源晶振，低功耗有源晶振，低相位有源晶振，低相噪有源晶振，电脑专用有源晶振，娱乐设备有源晶振，蓝光应用有源晶，照相机有源 晶振，千兆以太网有源晶振，车载音响有源晶振，多媒体就设备 有源晶振，具有低电压低功耗的特点。
OSC晶振产品超级适合用于电脑、娱乐设备，DSC、DVD、蓝光、HDTV、DVC和HDD，WiMAX，照相机模块，千兆以太网，车载多媒体设备等领域。1XSF033333ARA,DSO221SR多媒体设备晶振,大真空CMOS输出晶振.
1XSF033333ARA,DSO221SR多媒体设备晶振,大真空CMOS输出晶振参数表
| 项目 | 特性代码 |
对应频率范围 ( MHz ) |
符号 | 规格 | 条件 | ||||
|---|---|---|---|---|---|---|---|---|---|
|
电源 电压 |
频率 允许偏差 |
最小。 | typ | 最大。 | 单位 | ||||
| 电源电压 | A | ＊ | 0.2≦fo≦125 | VCC | +3.0 | +3.3 | +3.6 | V | |
| M | 0.2≦fo≦125 | +2.7 | +3.0 | +3.3 | |||||
| B | 0.2≦fo≦100 | +2.6 | +2.8 | +3.0 | |||||
| C | 0.2≦fo≦100 | +2.25 | +2.5 | +2.75 | |||||
| D | 0.2≦fo≦80 | +1.6 | +1.8 | +2.0 | |||||
|
频率允许偏差 (包括常温偏差) |
＊ | Y | 0.2≦fo≦100 | f_tol | -100 | ー | +100 | ×10-6 | 40~+125℃ |
| Z | 0.2≦fo≦100 | -80 | ー | +80 | 40~+110℃ | ||||
| A | 100<fo≦125 | -100 | ー | +100 | 40~+85℃ | ||||
| B | 0.2≦fo≦100 | -50 | ー | +50 | |||||
| 消耗电流 | a，m | ＊ | 0.2≦fo<54 | ICC | ー | ー | +4.0 | mA | No Load |
| 54≦fo<80 | ー | ー | +6.0 | ||||||
| 80≦fo≦125 | ー | ー | +8.0 | ||||||
| B | ＊ | 0.2≦fo<54 | ー | ー | +3.5 | ||||
| 54≦fo<80 | ー | ー | +5.5 | ||||||
| 80≦fo≦100 | ー | ー | +7.5 | ||||||
| C | ＊ | 0.2≦fo<54 | ー | ー | +3.0 | ||||
| 54≦fo<80 | ー | ー | +5.0 | ||||||
| 80≦fo≦100 | ー | ー | +7.0 | ||||||
| D | ＊ | 0.2≦fo<54 | ー | ー | +2.5 | ||||
| 54≦fo≦80 | ー | ー | +4.5 | ||||||
| 待机时电流( #1针" l " ) | ＊ | ＊ | ＊ | I_std | ー | ー | +10 | μA | |
| 输出负载 | ＊ | ＊ | ＊ | L_CMOS | ー | ー | 15 | pF | |
| 波形对称 | ＊ | ＊ | ＊ | SYM | 40 | 50 | 60 | % | 50% V抄送级别 |
| 0电平电压 | ＊ | ＊ | ＊ | VOL | ー | ー | VCC×0.1 | V | |
| 1电平电压 | ＊ | ＊ | ＊ | VOH | VCC×0.9 | ー | ー | ||
|
上升时间 下降时间 |
＊ | ＊ | 0.2≦fo≦54 | tr，tf | ー | ー | 8 | 美国全国广播公司 | 10~90% V抄送级别 |
| 54<fo<100 | ー | ー | 4 | ||||||
| 100≦fo≦125 | ー | ー | 3 | ||||||
| OE引脚0电平输入电压 | ＊ | ＊ | ＊ | VIL | ー | ー | VCC×0.2 | V | |
| OE引脚1电平输入电压 | ＊ | ＊ | ＊ | VIH | VCC×0.8 | ー | ー | ||
| 输出禁用时间 | ＊ | ＊ | ＊ | tPLZ | ー | ー | 150 | 美国全国广播公司 | |
| 输出使能时间 | ＊ | ＊ | ＊ | tPZL | ー | ー | 5 | 微软 | |
| 句点抖动(1) | ＊ | ＊ | ＊ | tRMS | ー | 2.2 | ー | 销售点 | σ |
| tp-p | ー | 20 | ー | Peak to peak | |||||
| 总抖动(1) | ＊ | ＊ | ＊ | tTL | ー | 31 | ー | 销售点 | tDJ+n×tRJ n=14.1(BER=1×10-12(2) |
| 相位抖动 | ＊ | ＊ | 40≦fo≦125 | tpj | ー | ー | 1 | 销售点 | fo offset:12kHz~20MHz |
| 10≦fo<40 | fo offset:12kHz~5MHz | ||||||||
| 可靠性规格 | AEC-Q100/AEC-Q200 | ||||||||
| 包装单位(3) | 2000pcs./reel(180φ) | ||||||||

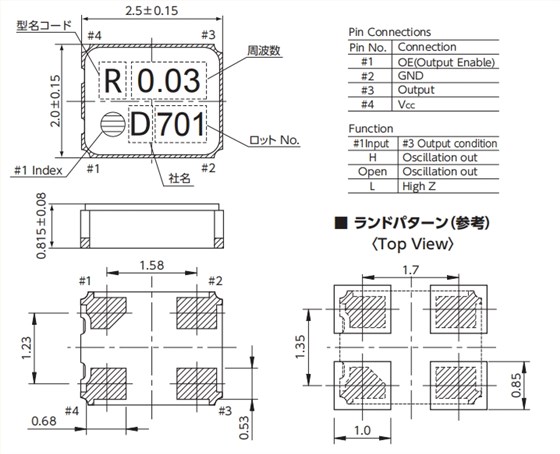

1XSF033333ARA,DSO221SR多媒体设备晶振,大真空CMOS输出晶振 尺寸图

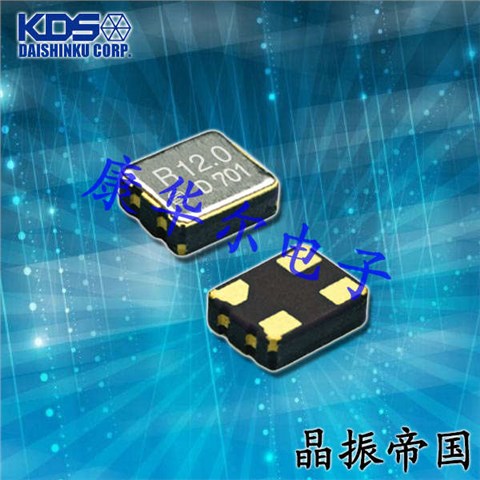

1XSF033333ARA,DSO221SR多媒体设备晶振,大真空CMOS输出晶振
有源晶振产品特性：
2520大小
低功耗: 8mA max.(125MHz，3.3V )
电源电压: 1.8V/2.5V/2.8V/3.0V/3.3V
带三态功能
-40~+125℃动作
矮型对应: 0.815mm毫米
符合AEC-Q100/AEC-Q200标准
CMOS输出
| 品牌 | 原厂代码 | 型号 | 尺寸 | 频率 | 负载/电压 | 精度 |
| KDS晶振 | 1AC125821EA | AT-49 | 11*4.6 | 12.58291M | 8.8PF | 20ppm |
| KDS晶振 | 1AY289002DB | AT-49 | 11*4.6 | 28.900M | 12PF | 50PPM |
| KDS晶振 | SB103CE1MM | SINGLE | ||||
| KDS晶振 | 1JAAL0032768BAAX | MO1532 | 32.768K | |||
| KDS晶振 | 17CG03840A06 | DSR1612ATH | 1612 | 38.400M | 8PF | 10ppm |
| KDS晶振 | 1RAK38400CKA | DSR211STH | 2016 | 38.4M | 7pf | 12ppm |
| KDS晶振 | 1XZA032768AD19 | DSK321STD | 3225 | 32.768K | ||
| KDS晶振 | 7FG00003A03 | DSO1612AR | 1612 | 32.768KHZ | 3.3V | 20PPM |
| KDS晶振 | ZC08759 | DSO211AH | 2016 | 25.000M | 3.3V | 50ppm |
| KDS晶振 | 1XSF016000EH | DSO221SHF | 2520 | 16.000M | ||
| KDS晶振 | 1XSE012000AR58 | DSO321SR | 3225 | 12.000M | 3.3V | 50ppm |
| KDS晶振 | 7FE02496A00 | DSO221SX | 2520 | 24.96M | ||
| KDS晶振 | 1XSF033333ARA | DSO221SR | 2520 | 33.3333M | 100ppm | |
| KDS晶振 | 1XSE024000AW1 | DSO321SW | 3225 | 24.000M | ||
| KDS晶振 | 1XSE025000AR5 | DSO321SR | 3225 | 25.000M | ||
| KDS晶振 | 1XSE033333ARD | DSO321SR | 3225 | 33.3333M | ||
| KDS晶振 | 1XSE038702AR | DSO321SRAB | 3225 | 38.7024M | ||
| KDS晶振 | 1XSE050000ART | DSO321SR | 3225 | 50.000M | 100ppm | |
| KDS晶振 | 1XST156250AKM | DSO323SK | 3225 | 156.25M | 50PPM | |
| KDS晶振 | 1XSR025000AR25 | DSO751SR | 7050 | 25.000M | 3.3V | 50ppm |
| KDS晶振 | 1XSA050000AVW | DSO751SV | 7050 | 50.000M | 3.3V | 100ppm |
| KDS晶振 | ZC12456 | DSB211SDN | 2016 | 16.320M | 3.3V | 1.5ppm |
| KDS晶振 | 1XXD16367MAA | DSB211SDN | 2016 | 16.367667M | 3.3V | 1.5ppm |
| KDS晶振 | 1XXB16367MAA | DSB221SDN | 2520 | 16.367667M | 2.8V | 1.5ppm |
| KDS晶振 | 1XXD24000MBA | DSB211SDN | 2016 | 24.000M | ||
| KDS晶振 | 1XXD26000MAA | DSB211SDN | 2016 | 26.000M | ||
| KDS晶振 | 1XXD38400MFA | DSB211SDN | 2016 | 38.400M | ||
| KDS晶振 | 1XXD40000PDA | DSB211SDN | 2016 | 40.000M | ||
| KDS晶振 | 1XXD32000PBA | DSB211SDN | 2016 | 32.000M | ||
| KDS晶振 | 1XXD52000PBA | DSB211SDN | 2016 | 52.000M | ||
| KDS晶振 | ZC12467 | DSA211SDN | 2016 | 16.32M | 3.3V | 1.5ppm |
| KDS晶振 | 7DF01920A09 | DSA211SDN | 2016 | 19.200M | ||
| KDS晶振 | 1XXC20000MAA | DSA211SDN | 2016 | 20.000M | ||
| KDS晶振 | 1XXB16369JFA | DSB221SDN | 2520 | 16.369M | 3.3V | 1.5ppm |
| KDS晶振 | 1XXB24000MEA | DSB221SDN | 2520 | 24.000M | ||
| KDS晶振 | 1XXB25000PAA | DSB221SDN | 2520 | 25.000M | ||
| KDS晶振 | 1XXB26000MAA | DSB221SDN | 2520 | 26.000M | ||
| KDS晶振 | 1XXB30000MBA | DSB221SDN | 2520 | 30.000M | ||
| KDS晶振 | 1XXB32000PAA | DSB221SDN | 2520 | 32.000M | ||
| KDS晶振 | 7ED03360A00 | DSB321SDN | 3225 | 33.6M | ||
| KDS晶振 | 7ED01638A03 | DSB321SDN | 3225 | 16.384M | ||
| KDS晶振 | 1XSE022579ARC | DSO321SR | 3225 | 22.5792M | 50PPM | |
| KDS晶振 | 1XTQ19200ELA | DSA535SG | 5032 | 19.200M | 50PPM | |
| KDS晶振 | 1XXA26000FSB | DSA221SCL | 2520 | 26.000M | ||
| KDS晶振 | 1XXB38400MCB | DSB221SDN | 2520 | 38.4M | 3.3V | |
| KDS晶振 | 7EE05200A02 | DSB221SDN | 2520 | 52.000M | ||
| KDS晶振 | 1XXA10000MBA | DSA221SDN | 2520 | 10.000M | 3.3V | 0.5PPM |
| KDS晶振 | 1XXA26000MAA | DSA221SDN | 2520 | 26.000M | ||
| KDS晶振 | 1XXA32000MBA | DSA221SDN | 2520 | 32.000M | ||
| KDS晶振 | 1XXA20000CAA | DSA221SDN | 2520 | 20.000M | 3.3V | 1.5ppm |
| KDS晶振 | 1XTW16368FEA | DSB321SCL | 3225 | 16.368M | 2.8V | 2.5ppm |
| KDS晶振 | 1XSE009600AV | DSO321SV | 3225 | 9.6M | 3.3V | 100ppm |
| KDS晶振 | 1XSE098304AR2 | DSO321SR | 3225 | 98.304M | 3.3V | 50ppm |
| KDS晶振 | 1XTW38400MAA | DSB321SDN | 3225 | 38.400M | ||
| KDS晶振 | 1XTV21700PAA | DSA321SDN | 3225 | 21.7M | ||
| KDS晶振 | ZC12965 | DSA321SDN | 3225 | 23.04M | 3.3V | 1.5ppm |
| KDS晶振 | 1XVD008192VB | DSV321SV | 3225 | 8.192M | 3.3V | 40ppm |
| KDS晶振 | 1XVD024000VA | DSV321SV | 3225 | 24.000M | 3.3V | 40ppm |
| KDS晶振 | 1XVD030240VA | DSV321SV | 3225 | 30.240M | 3.3V | 50ppm |
| KDS晶振 | 1XVD051993VB | DSV321SV | 3225 | 51.993652M | 3.3V | 50ppm |
| KDS晶振 | 1XVD059928VA | DSV321SV | 3225 | 59.9285M | 3.3V | 50ppm |
| KDS晶振 | 1D73375GR1 | DSF633SDF | 6035 | 73.35M | ||
| KDS晶振 | 1D21407AQ3 | DSF753SAF | 7050 | 21.400M | ||
| KDS晶振 | 1D21430FQ4 | DSF753SCF | 7050 | 21.4M | ||
| KDS晶振 | 1D44818GQ1 | DSF753SBF | 7050 | 44.85M | ||
| KDS晶振 | 1D49915GQ24 | DSF753SDF | 7050 | 49.95M | ||
| KDS晶振 | 1D51610GQ1 | DSF753SBF | 7050 | 51.65M | ||
| KDS晶振 | CSTLS8M00G53-B0 | CSTLS | 9060 | 8.000M | 15PF | 0.50% |
| KDS晶振 | CSTLS4M00G53-B0 | CSTLS | 9060 | 4.000M | 15PF | 0.50% |
| KDS晶振 | CSTNE8M00G520000R0 | CSTNE | 3213 | 8.000M | 10PF | 0.50% |
| KDS晶振 | CSTNE8M00G550000R0 | CSTNE | 3213 | 8.000M | 33PF | 0.50% |
| KDS晶振 | CSTNE10M00G520000R0 | CSTNE | 3213 | 10.000M | 10PF | 0.50% |
| KDS晶振 | CSTNE10M00G550000R0 | CSTNE | 3213 | 10.000M | 33PF | 0.50% |
| KDS晶振 | CSTNE12M0G550000R0 | CSTNE | 3213 | 12.000M | 33PF | 0.50% |
| KDS晶振 | CSTNE16M0V53-R0 | CSTNE | 3213 | 16.000M | 15PF | 0.50% |
| KDS晶振 | XRCGB24M00F0L00R0 | XRCGB | 3225 | 24.000M | ||
| KDS晶振 | CSTCR4M00G53-R0 | CSTCR | 4520 | 4.000M | 15PF | 0.50% |
| KDS晶振 | CSTCC3M58G53-R0 | CSTCC | 7234 | 3.58M | 15PF | 0.50% |
| KDS晶振 | CSTCC4M00G53-R0 | CSTCC | 7234 | 4.000M | ||
| KDS晶振 | Q-SC20S0322070AAAF | SC-20S | 2012 | 32.768K | 7PF | 20PPM |
| KDS晶振 | X1A000061000500 | FC-12M | 2012 | 32.768K | 12.5PF | 20PPM |
