BC22系列晶体,BC22CCI112.5-32.768K,Bomar实时时钟晶振,1610mm,美国进口晶振,Bomar音叉晶体,无源晶体,两脚贴片晶振,1612mm小体积晶振,32.768K晶体,SMD晶振,尺寸1.6x1.2mm,频率32.768KHZ,负载12.5pF,工作温度-40℃~+85℃,低损耗晶振,低老化晶振,高性能晶振,实时实时晶振,无线通信晶振,移动设备晶振,游戏设备晶振,数字显示晶振,收音机晶振.
BC22系列晶体,BC22CCI112.5-32.768K,Bomar实时时钟晶振,1610mm特点:
BC22系列是一种超小型smd陶瓷音叉晶体，高度为0.5mm。
非常适合最小的电路空间应用包括移动通信、芯片卡、实时时钟和无线通信。
32.768千赫
回流焊接
工作温度为-40º至+85ºC。

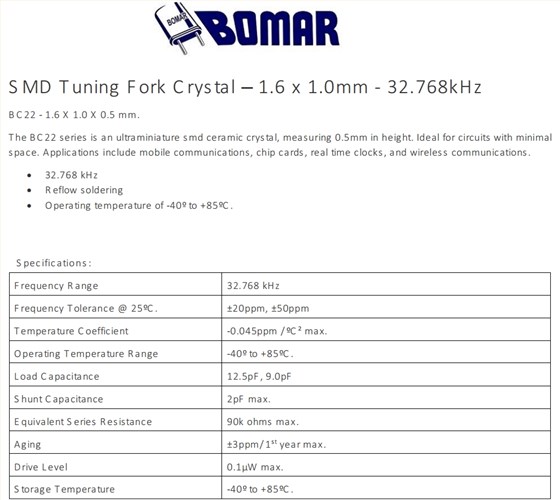

BC22系列晶体,BC22CCI112.5-32.768K,Bomar实时时钟晶振,1610mm 参数表
| Frequency Range | 32.768 kHz | |||||||||
| Frequency Tolerance @ 25ºC. | ±20ppm, ±50ppm | |||||||||
| Temperature Coefficient | -0.045ppm / ºC² max. | |||||||||
| Operating Temperature Range | -40º to +85ºC. | |||||||||
| Load Capacitance | 12.5pF, 9.0pF | |||||||||
| Shunt Capacitance | 2pF max. | |||||||||
| Equivalent Series Resistance | 90k ohms max. | |||||||||
| Aging | ±3ppm/ 1styear max. | |||||||||
| Drive Level | 0.1µW max. | |||||||||
| Storage Temperature | -40º to +85ºC. | |||||||||

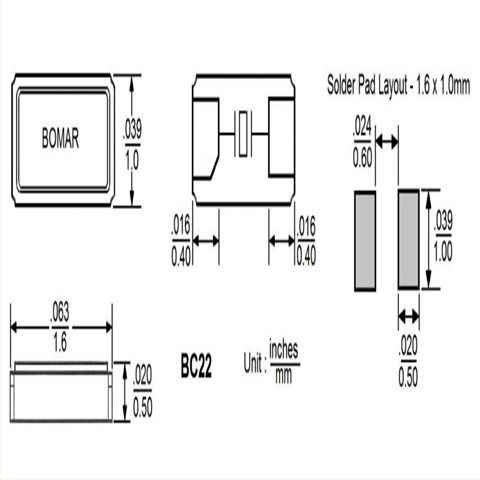

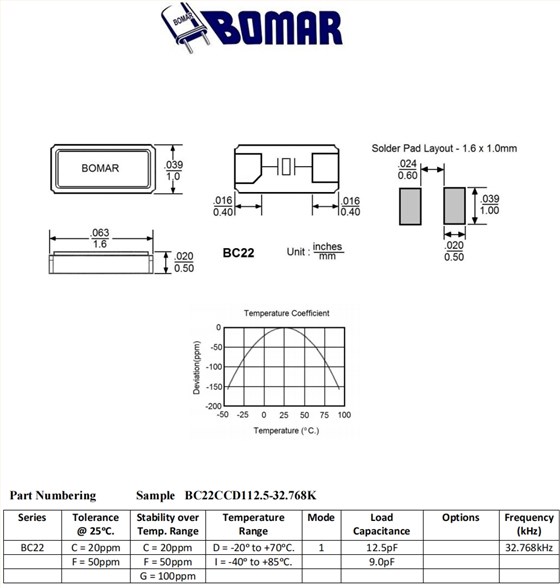

BC22系列晶体,BC22CCI112.5-32.768K,Bomar实时时钟晶振,1610mm 尺寸图
