Bliley水晶振动子,BQCSB-24MF-DCBGT,BQCSB系列,6035mm,24MHZ

Bliley水晶振动子,BQCSB-24MF-DCBGT,BQCSB系列,6035mm,24MHZBliley水晶振动子,BQCSB-24MF-DCBGT,BQCSB系列,6035mm,24MHZ

产品简介

Bliley水晶振动子,BQCSB-24MF-DCBGT,BQCSB系列,6035mm,24MHZ,美国百利晶振,Bliley石英晶体,四脚贴片晶振,石英贴片晶振,无源SMD晶体,无源晶振,石英晶体谐振器,6035mm水晶振动子,24MHZ贴片晶振,尺寸6.0x3.5mm,频率24MHZ,负载20pF,工作温度 -40°C~+85?C,平板电脑晶振,可视化智能家居晶振,小型设备晶振,数码相机晶振.






产品详情

TC-1

Bliley水晶振动子,BQCSB-24MF-DCBGT,BQCSB系列,6035mm,24MHZ,美国百利晶振,Bliley石英晶体,四脚贴片晶振,石英贴片晶振,无源SMD晶体,无源晶振,石英晶体谐振器,6035mm水晶振动子,24MHZ贴片晶振,尺寸6.0x3.5mm,频率24MHZ,负载20pF,工作温度-40°C~+85?C,平板电脑晶振,可视化智能家居晶振,小型设备晶振,数码相机晶振.

Bliley水晶振动子,BQCSB-24MF-DCBGT,BQCSB系列,6035mm,24MHZ特点:

SMD晶体结构

标准6X3.5mm封装尺寸

高温高稳定性

TC-2

Bliley水晶振动子,BQCSB-24MF-DCBGT,BQCSB系列,6035mm,24MHZ 参数表

Parameter ConditionsFundamental3rdovertoneUnit
Frequency Range 8.0 – 60.040.0 – 125.0MHz
Frequency Tolerance @ + 25℃±50 Max (see options)ppm
Frequency Stability ±100 Max (see options)ppm
Aging Max 1stYear±5.0ppm
Equivalent Series
Resistance (max) 		8.0– 10.0 MHz60?
10.0 – 14.0 MHz50?
14.0 – 20.0 MHz40?
20.0 – 60.0 MHz30?
40.0 – 125 MHz80?
Insulative Resistance Min @ 100Vdc ±15Vdc500M?
Drive Level Typical100μW
C0 (Shunt Capacitance) Max (typical)5.0pF
CL (Load Capacitance) Per Option (typical)6-20 (see options)pF
DLD 50nW to 100µW±10 Maxppm
RLD 50nW to 100µW20% Max?
Operating Temp Range -20 to +70 / -40 to +85℃
Storage Temp Range -55 to +125℃
Sealing Method Seam Weld
Moisture Sensitivity Level 1

TC-3

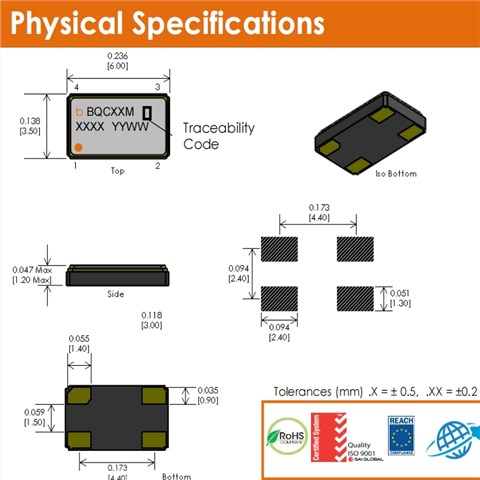

Bliley水晶振动子,BQCSB-24MF-DCBGT,BQCSB系列,6035mm,24MHZ 尺寸图

BQCSB BQCSB 1

BQCSB 2

BQCSB 3

TC-5
