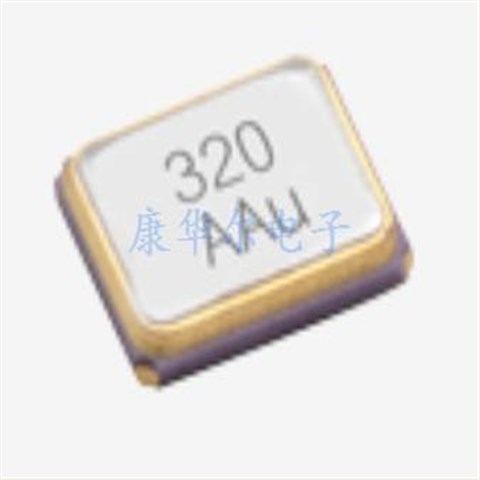

C2E-16.000-8-1530-X-R,AKER谐振器,耐低温晶振,四脚贴片

产品简介

C2E-16.000-8-1530-X-R,AKER谐振器,耐低温晶振,四脚贴片,小型晶振,高精度晶振,高频率晶振,高稳定晶振,无源晶振,安基电子,耐热晶振,贴片石英晶振,环保晶振,数字电水表晶振,无线路由器晶振,车载晶振,抗冲击晶振,有着比陶瓷更好的抗冲击性和导热性,在计时等电子产品中起到了非常重要的作用,

产品详情

C2E-16.000-8-1530-X-R,AKER谐振器,耐低温晶振,四脚贴片,小型晶振,高精度晶振,高频率晶振,高稳定晶振,无源晶振,安基电子,耐热晶振,贴片石英晶振,环保晶振,数字电水表晶振,无线路由器晶振,车载晶振,抗冲击晶振,有着比陶瓷更好的抗冲击性和导热性,在计时等电子产品中起到了非常重要的作用,

TC-2

C2E-16.000-8-1530-X-R,AKER谐振器,耐低温晶振,四脚贴片

物料编码	C2E-16.000-8-1530-X-R
频率	16MHz
厂家	AKER晶振
型号	C2E
频率偏差	±15ppm
负载电容	8pF
工作温度	-40°C至85°C

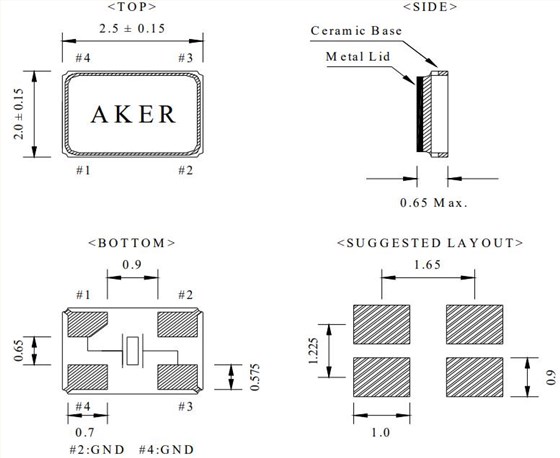

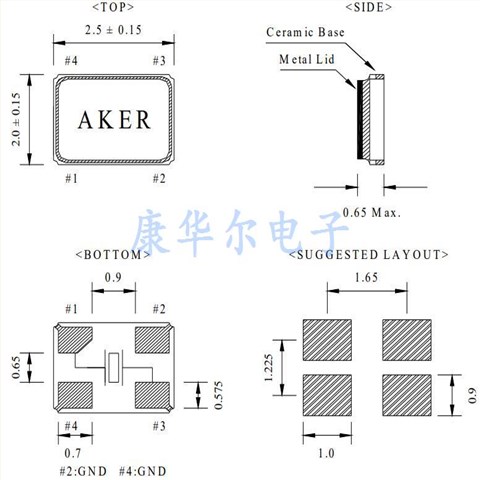

尺寸	2.5*2.0mm

TC-3

C2E-16.000-8-1530-X-R,AKER谐振器,耐低温晶振,四脚贴片

C2E(1)

物料编码	品牌	型号	频率	频率公差	负载电容
C3E-12.000-12-1015-R	Aker晶振	C3E	12 MHz	±10ppm	12pF
C3E-25.000-8-1015-X-R	Aker晶振	C3E	25 MHz	±10ppm	8pF
C3E-26.000-10-1015-X-R3	Aker晶振	C3E	26 MHz	±10ppm	10pF
C16-26.000-8-1010-R	Aker晶振	C16	26 MHz	±10ppm	8pF
C3E-16.000-8-2050-X1-R	Aker晶振	C3E X1	16 MHz	±20ppm	8pF
C3E-8.000-12-1020-R	Aker晶振	C3E	8 MHz	±10ppm	12pF
C2E-12.000-10-2050-X1-R	Aker晶振	C2E X1	12 MHz	±20ppm	10pF
C1E-96.000-8-1216-X2-R	Aker晶振	C1E X2	96 MHz	±12ppm	8pF
C3E-12.000-12-3030-X-R	Aker晶振	C3E	12 MHz	±30ppm	12pF
C3E-27.120-12-1010-R	Aker晶振	C3E	27.12 MHz	±10ppm	12pF
C3E-24.576-12-1010-R	Aker晶振	C3E	24.576 MHz	±10ppm	12pF
C3E-16.000-12-1015-R	Aker晶振	C3E	16 MHz	±10ppm	12pF
C3E-13.560-12-1530-X-R	Aker晶振	C3E	13.56 MHz	±15ppm	12pF
C2E-16.000-10-1010-R	Aker晶振	C2E	16 MHz	±10ppm	10pF
C1E-24.000-10-1015-M	Aker晶振	C1E	24 MHz	±10ppm	10pF
C1E-52.000-8-1012-X-M	Aker晶振	C1E	52 MHz	±10ppm	8pF
C1E-52.000-10-1012-X-M	Aker晶振	C1E	52 MHz	±10ppm	10pF
C3E-27.120-12-1020-X-R	Aker晶振	C3E	27.12 MHz	±20ppm	12pF
C3E-16.000-9-1010-R	Aker晶振	C3E	16 MHz	±10ppm	9pF
C5S-24.000-20-3030-X-R	Aker晶振	C5S	24 MHz	±30ppm	20pF
C5S-12.000-16-5050-X-R	Aker晶振	C5S	12 MHz	±50ppm	16pF
C5S-20.000-20-3050-X-R	Aker晶振	C5S	20 MHz	±50ppm	20pF
C5S-12.000-16-3030-X-R	Aker晶振	C5S	12 MHz	±30ppm	16pF
C5S-8.000-12-2020-X-R	Aker晶振	C5S	8 MHz	±20ppm	12pF
C6S-16.000-12-5050-X-R	Aker晶振	C6S	16 MHz	±50ppm	12pF
C2E-20.000-10-2050-X1-R	Aker晶振	C2E X1	20 MHz	±20ppm	10pF
C5S-8.000-18-3030-X-R	Aker晶振	C5S	8 MHz	±30ppm	18pF
C5S-8.000-16-3030-X-R	Aker晶振	C5S	8 MHz	±30ppm	16pF
C3E-16.000-8-50100-X1-R	Aker晶振	C3E	16 MHz	±50ppm	8pF
