1612HSMX‐4系列,艾西迪晶振,CAZ2457‐RF-KOMEF1L‐PF,1612mm,24.576MHZ,英国ACT晶振,进口贴片晶体,水晶振动子,1612mm小尺寸晶振,四脚石英晶振,无源贴片晶体,SMD晶振,石英晶体谐振器,轻薄型晶振,尺寸1.6x1.2mm,频率24.576MHZ,负载10pF,低成本晶振,低老化晶振,高可靠晶振,高品质晶振,智能穿戴晶振,游戏机晶振,射频应用晶振.
1612HSMX‐4系列,艾西迪晶振,CAZ2457‐RF-KOMEF1L‐PF,1612mm,24.576MHZ特点:
符合RoHS和REACH
最小的石英晶体
高度可靠的接缝密封4衬垫陶瓷封装
低老化晶体，专为射频应用而设计
1612HSMX‐4系列,艾西迪晶振,CAZ2457‐RF-KOMEF1L‐PF,1612mm,24.576MHZ 参数表
 Parameters
|
Specification | Remarks | |||||||||||||
| Frequency range | F_nom | 24.0MHz ~ 54.0MHz | |||||||||||||
| Frequency tolerance | F_tol | ±10.0ppm | |||||||||||||
| Frequency stability over temperature range | F_stb | ±10.0ppm | Over ‐30°C~ +85°C | ||||||||||||
| Frequency aging | F_age | ±1.0ppm | At 25°C, 1?? Year | ||||||||||||
| Operable temperature range | T_opr | ‐40°C ~ +85°C | |||||||||||||
| Storage temperature | T_stg | ‐55°C ~ +125°C | |||||||||||||
| Load capacitance | CL | 7.0pF ~ 16.0pF | |||||||||||||
| Equivalent series resistance | 24.0 ~ 29.999MHz | ESR | 100? max | ||||||||||||
| 30.0 ~ 39.999MHz | 80? max | ||||||||||||||
| 40.0 ~ 54.000MHz | 60? max | ||||||||||||||
| Shunt capacitance | C0 | 3.0pF max | |||||||||||||
| Drive level | DL | 100μW max | 50μW typical | ||||||||||||
| Moisture sensitivity level | MSL | 1 (unlimited) | |||||||||||||
| Electrostatic discharge | ESD | Not applicable | |||||||||||||
| Insulation resistance | IR | 500M? min | At 100V DC | ||||||||||||

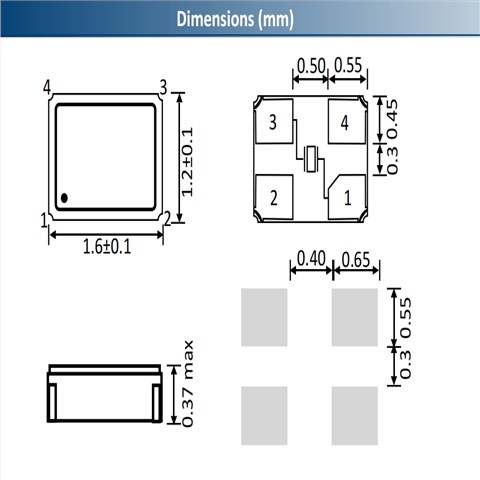

1612HSMX‐4系列,艾西迪晶振,CAZ2457‐RF-KOMEF1L‐PF,1612mm,24.576MHZ 尺寸图
