鸿星XO振荡器,D2SX低抖动晶振,D2SX003270004E,6G物联网晶振，尺寸2.5x2.0mm，频率32.768KHZ，Hosonic有源晶振，32.768KHZ有源晶振，石英晶体振荡器，oscillator Crystal，XO时钟振荡器，2520mm有源晶振，有源贴片晶振，四脚贴片有源晶振，有源晶体振荡器，低抖动有源晶振，低功耗有源晶振，低电压有源晶振，低耗能有源晶振，智能家居有源晶振，网络设备有源晶振，6G物联网有源晶振，蓝牙模块有源晶振，无线模块有源晶振，测试设备有源晶振，具有低电压低抖动的特点。
OSC晶振产品超级适合用于智能家居，网络设备，6G物联网，蓝牙模块，无线模块，测试设备等领域。鸿星XO振荡器,D2SX低抖动晶振,D2SX003270004E,6G物联网晶振.
鸿星XO振荡器,D2SX低抖动晶振,D2SX003270004E,6G物联网晶振参数图
鸿星晶振
D2SX晶振
输出类型
振荡模式
基本/第三泛音
电源电压
1.5V,1.8V,2.8V,3.3V
频率范围
1~62.5MHZ
频率稳定度
±25/±50/±100ppm
工作温度
-40~+85℃
保存温度
-55~+125℃
电压卷（最大值）/ VOH（最小值）
0.1 VDD / 0.9 VDD
启动时间
5 ms Max.
相位抖动（12兆赫~20兆赫）
1个PS最大.
老化率
±3 ppm /年最大.
TTL/CMOS

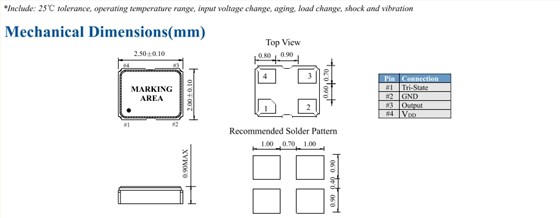

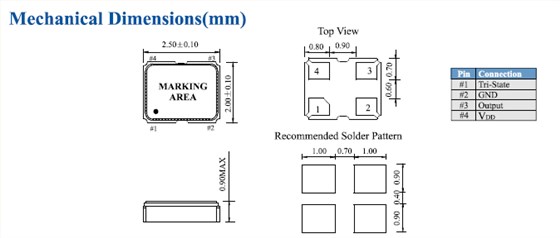

鸿星XO振荡器,D2SX低抖动晶振,D2SX003270004E,6G物联网晶振尺寸图
晶体振荡器产品特性：
可从中选择频率1MHz至62.5MHz
频率稳定性
3.3和2.5 V电源选项
行业标准2.5 x 2.0mm包装和引脚
无铅/符合RoHS
更多相关Hosonic有源晶振型号
| Mfr Part # | Supplier | Series | Type | Frequency | Voltage - Supply | Frequency Stability |
| D3SX00327000ME | Hosonic有源晶振 | D3SX | XO (Standard) | 32.768 kHz | 1.8V | ±25ppm |
| D2SX003270004E | Hosonic有源晶振 | D2SX | XO (Standard) | 32.768 kHz | 1.8V | ±25ppm |
| D7SX4E000000UE | Hosonic有源晶振 | D7SX | XO (Standard) | 4MHz | 3.3V | ±50ppm |
| D2SX25E00000BE | Hosonic有源晶振 | D2SX | XO (Standard) | 25MHz | 3.3V | ±25ppm |
| D3SX38E0X0003E | Hosonic有源晶振 | D3SX | XO (Standard) | 38.4MHz | 3.3V | ±25ppm |
| D3SX12E0X000BE | Hosonic有源晶振 | D3SX | XO (Standard) | 12.288MHz | 1.8V | 15pF |
| D3SX12E00000HE | Hosonic有源晶振 | D3SX | XO (Standard) | 12MHz | 3.3V | ±25ppm |
| D3SX24E000001E | Hosonic有源晶振 | D3SX | XO (Standard) | 24MHz | 3.3V | ±25ppm |
| D3SX100E00007E | Hosonic有源晶振 | D3SX | XO (Standard) | 100MHZ | 3.3V | ±30ppm |
| D3SX50E000002E | Hosonic有源晶振 | D3SX | XO (Standard) | 50MHZ | 3.3V | ±30ppm |
| D3SX20E000001E | Hosonic有源晶振 | D3SX | XO (Standard) | 20MHz | 3.3V | ±25ppm |
| D2SX100E00003E | Hosonic有源晶振 | D2SX | XO (Standard) | 100MHz | 1.8V | ±25ppm |
| D2SX50E000009E | Hosonic有源晶振 | D2SX | XO (Standard) | 50MHz | 3.3V | ±25ppm |
| D3SX40E00000EE | Hosonic有源晶振 | D3SX | XO (Standard) | 40MHz | 3.3V | ±25ppm |
| D2SX40E000001E | Hosonic有源晶振 | D2SX | XO (Standard) | 40MHz | 3.3V | ±25ppm |
| D3SX25E000006E | 鸿星有源晶振 | D3SX | XO (Standard) | 25MHz | 3.3V | ±25ppm |
| D2SX20E000000E | Hosonic有源晶振 | D2SX | XO (Standard) | 20MHZ | 3.3V | ±30ppm |
| D36B62.5000NNS | Hosonic有源晶振 | HXO-36 | XO (Standard) | 62.5MHz | 3.3V | ±50ppm |
| D36B3.68640NNS | Hosonic有源晶振 | HXO-36 | XO (Standard) | 3.6864MHz | 3.3V | ±50ppm |
| D36B4.00000NNS | Hosonic有源晶振 | HXO-36 | XO (Standard) | 4MHz | 3.3V | ±50ppm |
| D36B6.00000NNS | Hosonic有源晶振 | HXO-36 | XO (Standard) | 6MHz | 3.3V | ±50ppm |
| D36B8.00000NNS | Hosonic有源晶振 | HXO-36 | XO (Standard) | 8MHz | 3.3V | ±50ppm |
| D36B10.0000NNS | Hosonic有源晶振 | HXO-36 | XO (Standard) | 10MHz | 3.3V | ±50ppm |
| D36B12.0000NNS | Hosonic有源晶振 | HXO-36 | XO (Standard) | 12MHz | 3.3V | ±50ppm |
| D36B14.3181NNS | Hosonic有源晶振 | HXO-36 | XO (Standard) | 14.3181MHz | 3.3V | ±50ppm |
| D36B14.7456NNS | Hosonic有源晶振 | HXO-36 | XO (Standard) | 14.7456MHz | 3.3V | ±50ppm |
| D36B16.0000NNS | Hosonic有源晶振 | HXO-36 | XO (Standard) | 16MHz | 3.3V | ±50ppm |
| D36B18.4320NNS | Hosonic有源晶振 | HXO-36 | XO (Standard) | 18.432MHz | 3.3V | ±50ppm |
| D36B20.0000NNS | Hosonic有源晶振 | HXO-36 | XO (Standard) | 20MHz | 3.3V | ±50ppm |
| D36B24.0000NNS | Hosonic有源晶振 | HXO-36 | XO (Standard) | 24MHz | 3.3V | ±50ppm |
| D36B24.5760NNS | Hosonic有源晶振 | HXO-36 | XO (Standard) | 24.576MHz | 3.3V | ±50ppm |
| D36A25.0000WTS | Hosonic有源晶振 | HXO-36 | XO (Standard) | 25MHz | 3.3V | ±50ppm |
| D36B27.0000NNS | Hosonic有源晶振 | HXO-36 | XO (Standard) | 27MHz | 3.3V | ±50ppm |
| D36B33.0000NNS | Hosonic有源晶振 | HXO-36 | XO (Standard) | 30MHz | 3.3V | ±50ppm |
| D36B33.3330NNS | Hosonic有源晶振 | HXO-36 | XO (Standard) | 33.333MHz | 3.3V | ±50ppm |
| D36B48.0000NNS | Hosonic有源晶振 | HXO-36 | XO (Standard) | 48MHz | 3.3V | ±50ppm |
| D36B50.0000NNS | Hosonic有源晶振 | HXO-36 | XO (Standard) | 50MHz | 3.3V | ±50ppm |
| D36B66.0000NNS | Hosonic有源晶振 | HXO-36 | XO (Standard) | 66MHz | 3.3V | ±50ppm |
| D36B100.000NNS | Hosonic有源晶振 | D36B | XO (Standard) | 100MHz | 3.3V | ±50ppm |
| D36B125.0000NTS | Hosonic有源晶振 | D36B | XO (Standard) | 125MHz | 2.5V | ±50ppm |
| D56A25.0000WTS | Hosonic有源晶振 | HXO-56 | XO (Standard) | 25 MHz | 3.3V | ±50ppm |
| D56A30.0000MTS | Hosonic有源晶振 | D5 | XO (Standard) | 30Mhz | 3.3V | ±50ppm |
| D56B12.0000NNS | Hosonic有源晶振 | HXO-56 | XO (Standard) | 12 MHz | 3.3V | ±50ppm |
| D56B14.7456NNS | Hosonic有源晶振 | HXO-56 | XO (Standard) | 14.745MHz | 3.3V | ±50ppm |
| D56B16.0000NNS | Hosonic有源晶振 | HXO-56 | XO (Standard) | 16 MHz | 3.3V | ±50ppm |
| D56B24.0000NNS | Hosonic有源晶振 | HXO-56 | XO (Standard) | 24 MHz | 3.3V | ±50ppm |
| D56B25.0000NNS | Hosonic有源晶振 | HXO-56 | XO (Standard) | 25 MHz | 3.3V | ±50ppm |
| D56B33.0000WTS | Hosonic有源晶振 | D56 | XO (Standard) | 33MHz | 3.3V | ±50ppm |
| D56B50.0000NNS | Hosonic有源晶振 | HXO-56 | XO (Standard) | 50 MHz | 3.3V | ±50ppm |
| DSCB4.91520NNS | Hosonic有源晶振 | HXO-SC | XO (Standard) | 4.9152MHZ | 3.3V | ±50ppm |
| DSCB14.3181NNS | Hosonic有源晶振 | HXO-SC | XO (Standard) | 14.3181MHZ | 3.3V | ±50ppm |
| DSCB20.0000NNS | Hosonic有源晶振 | HXO-SC | XO (Standard) | 20 MHz | 3.3V | ±50ppm |
| DSCB24.0000NNS | Hosonic有源晶振 | HXO-SC | XO (Standard) | 24 MHz | 3.3V | ±50ppm |
| DSCB25.0000NNS | Hosonic有源晶振 | HXO-SC | XO (Standard) | 25 MHz | 3.3V | ±50ppm |
| DSCB27.0000NNS | Hosonic有源晶振 | HXO-SC | XO (Standard) | 27 MHz | 3.3V | ±50ppm |
