H130B系列,H130B-25.000-20-TR,卢柏GPS定位晶振,5032mm,25MHZ,Rubyquartz晶振厂家,四脚无源晶振,石英贴片晶振,石英晶体谐振器,水晶振动子,5032mm石英晶振,25MHZ无源晶振,SMD晶振,尺寸5.0x3.2mm,频率25MHZ,负载20pF,环保晶振,高性能晶振,低损耗晶振,低成本晶振,无绳电话晶振,寻呼机晶振,蓝牙应用晶振,GPS定位晶振,数字电子晶振.
H130B系列,H130B-25.000-20-TR,卢柏GPS定位晶振,5032mm,25MHZ特点:
5.0x 3.2x1.0mm的SMD晶体小包装
优异的耐受性和稳定性
提供自定义规格
H130B系列,H130B-25.000-20-TR,卢柏GPS定位晶振,5032mm,25MHZ 参数表
| PARAMETER | VALUE | |||||||||||||||||||||||||||
| FREQUENCY RANGE | 25.000 MHz | |||||||||||||||||||||||||||
| MODE OF OSCILLATION | FUNDAMENTAL | 8.000 MHz TO 50.000 MHz | ||||||||||||||||||||||||||
| THIRD OVERTONE | 45.000 MHz TO 120.000 MHz | |||||||||||||||||||||||||||
| FREQUENCY TOLERANCE AT 25°C |
±50 PPM MAXIMUM (±10, ±20, AND ±30 PPM AVAILABLE) |
|||||||||||||||||||||||||||
| FREQUENCY STABILITY OVER TEMPERATURE |
±50 PPM MAXIMUM (±10, ±20, AND ±30 PPM AVAILABLE) |
|||||||||||||||||||||||||||
| OPERATING TEMPERATURE RANGE |
-20°C TO +70°C STANDARD -30°C TO +85°C EXTENDED |
1 1 |
||||||||||||||||||||||||||
| STORAGE TEMPERATURE RANGE | -40°C TO +90°C | |||||||||||||||||||||||||||
| AGING | ±1 PPM PER YEAR MAXIMUM | |||||||||||||||||||||||||||
| LOAD CAPACITANCE | 8 pF to 32 pF OR SERIES | |||||||||||||||||||||||||||
| EQUIVALENT SERIES RESISTANCE | SEE TABLE 1 | |||||||||||||||||||||||||||
| SHUNT CAPACITANCE | 7.0 pF MAXIMUM | |||||||||||||||||||||||||||
| DRIVE LEVEL | 100 µW TYP,500 µW MAX | |||||||||||||||||||||||||||
| SHOCK RESISTANCE |
±5 PPM MAXIMUM 75 cm DROP TEST IN 3 AXES ONTO A HARD SURFACE |
|||||||||||||||||||||||||||
| REFLOW CONDITIONS | 260°C ±5°C FOR 10s MAXIMUM | |||||||||||||||||||||||||||

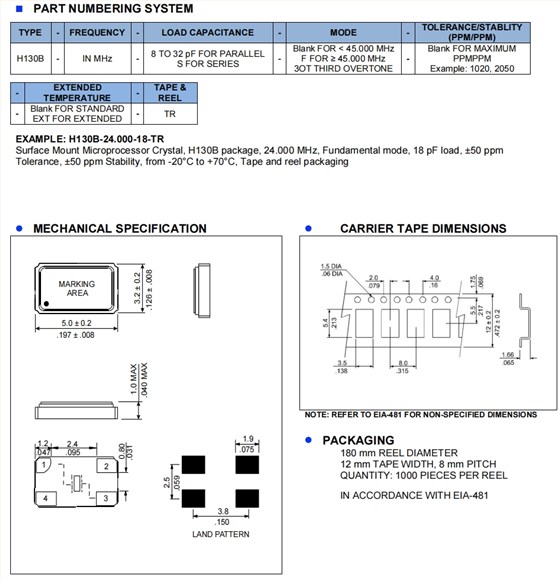

H130B系列,H130B-25.000-20-TR,卢柏GPS定位晶振,5032mm,25MHZ 尺寸图
