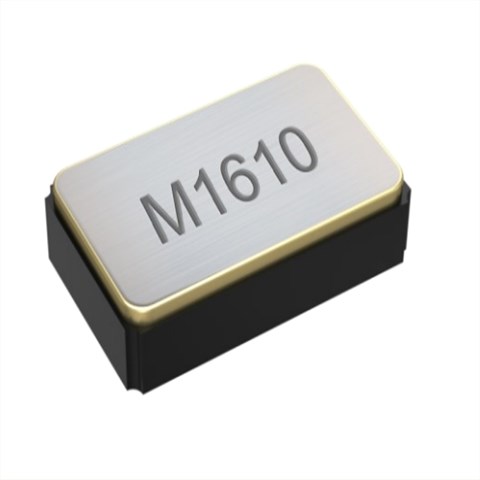

彼得曼晶振,6G通信晶振,M1610-32.768kHz-±20ppm-12.5pF(-40/+85°C)

彼得曼晶振,6G通信晶振,M1610-32.768kHz-±20ppm-12.5pF(-40/+85°C)彼得曼晶振,6G通信晶振,M1610-32.768kHz-±20ppm-12.5pF(-40/+85°C)

产品简介

彼得曼晶振,6G通信晶振,M1610-32.768kHz-±20ppm-12.5pF(-40/+85°C),尺寸1.6x1.0mm,频率32.768KHZ,PETERMANN音叉晶体,无源贴片晶振,32.768K时钟晶振,SMD晶振,无源晶振,贴片无源晶振,环保晶振,32.768KHZ晶振,32.768K音叉晶体,无源音叉晶体,无线应用晶振,可穿戴设备晶振,通信产品晶振,时计产品专用晶振,游戏机晶振,数码相机晶振,电话机晶振,汽车级晶振,小型设备晶振,便携式设备晶振,高质量晶振,低损耗晶振,低成本晶振,具有低成本低损耗的特点.
石英晶体产品超级适合用于时计产品,还可以广泛用于无线应用,可穿戴设备,通信产品,时计产品,游戏机,数码相机,电话机,汽车级,小型设备,便携式等领域。彼得曼晶振,6G通信晶振,M1610-32.768kHz-±20ppm-12.5pF(-40/+85°C).

产品详情

TC-1

彼得曼晶振,6G通信晶振,M1610-32.768kHz-±20ppm-12.5pF(-40/+85°C),尺寸1.6x1.0mm,频率32.768KHZ,PETERMANN音叉晶体,无源贴片晶振,32.768K时钟晶振,SMD晶振,无源晶振,贴片无源晶振,环保晶振,32.768KHZ晶振,32.768K音叉晶体,无源音叉晶体,无线应用晶振,可穿戴设备晶振,通信产品晶振,时计产品专用晶振,游戏机晶振,数码相机晶振,电话机晶振,汽车级晶振,小型设备晶振,便携式设备晶振,高质量晶振,低损耗晶振,低成本晶振,具有低成本低损耗的特点.
石英晶体产品超级适合用于时计产品,还可以广泛用于无线应用,可穿戴设备,通信产品,时计产品,游戏机,数码相机,电话机,汽车级,小型设备,便携式等领域。彼得曼晶振,6G通信晶振,M1610-32.768kHz-±20ppm-12.5pF(-40/+85°C).

TC-2

彼得曼晶振,6G通信晶振,M1610-32.768kHz-±20ppm-12.5pF(-40/+85°C)参数图

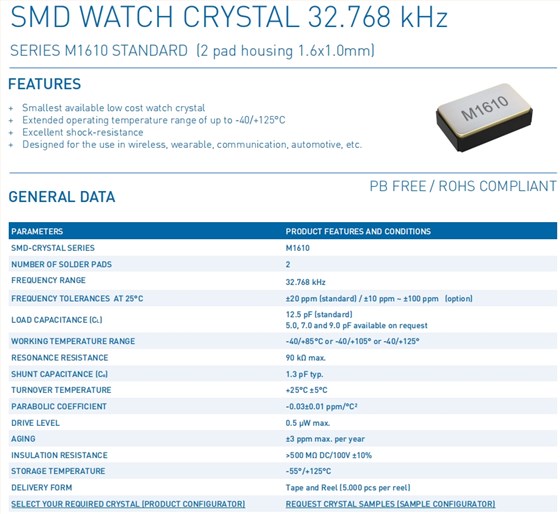

PARAMETERS PRODUCT FEATURES AND CONDITIONS
SMD-CRYSTAL SERIES M1610
NUMBER OF SOLDER PADS 2
FREQUENCY RANGE 32.768 kHz
FREQUENCY TOLERANCES AT 25°C ±20 ppm (standard) / ±10 ppm ~ ±100 ppm (option)
LOAD CAPACITANCE (CL) 12.5 pF (standard)
5.0, 7.0 and 9.0 pF available on request
WORKING TEMPERATURE RANGE -40/+85°C or -40/+105° or -40/+125°
RESONANCE RESISTANCE 90 kΩ max.
SHUNT CAPACITANCE (Co) 1.3 pF typ.
TURNOVER TEMPERATURE +25°C ±5°C
PARABOLIC COEFFICIENT -0.03±0.01 ppm/°C²
DRIVE LEVEL 0.5 μW max.
AGING ±3 ppm max. per year
INSULATION RESISTANCE >500 MΩ DC/100V ±10%
STORAGE TEMPERATURE -55°/+125°C
DELIVERY FORM Tape and Reel (5.000 pcs per reel)

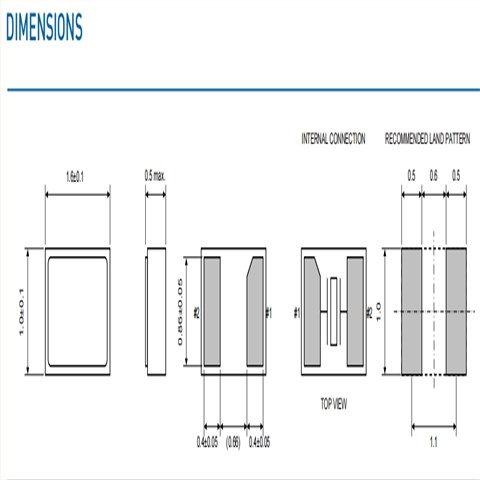

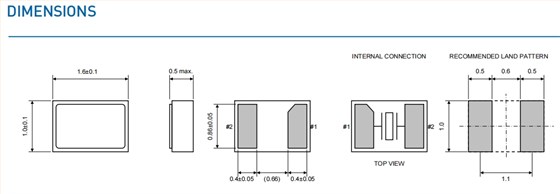

TC-3彼得曼晶振,6G通信晶振,M1610-32.768kHz-±20ppm-12.5pF(-40/+85°C)尺寸图M1610 2

音叉晶体产品特性:

最小的低成本手表水晶

扩展工作温度范围高达-40/+125°C

优秀的防震

M1610 1M1610 2

M1610 3

更多相关彼得曼PETERMANN晶振型号,请咨询我们!TC-5
