QC32物联网晶振,康泰克石英晶振,QC3260.0000F12B23R，尺寸3.2x2.5mm，频率60MHZ，美国QANTEK晶振，欧美进口晶振，康泰克高质量晶振，四脚贴片晶振，无源贴片晶振，石英贴片晶振，SMD晶振，石英晶振，无源晶振，无源石英晶体，Quartz Crystal，石英晶体谐振器，3225mm贴片晶振，环保晶振，高性能晶振，高质量晶振，低损耗晶振，低功耗晶振，轻薄型晶体，无线应用晶振，物联网晶振，移动通信晶振，汽车应用晶振，高密度应用晶振，多媒体设备晶振，便携式设备晶振，数字音频晶振，具有轻薄小低损耗的特点。
SMD晶体产品比较常用于高密度应用，调制解调器、通信和测试设备，PMCIA，无线应用，汽车应用，多媒体设备，数字音频等领域.QC32物联网晶振,康泰克石英晶振,QC3260.0000F12B23R.

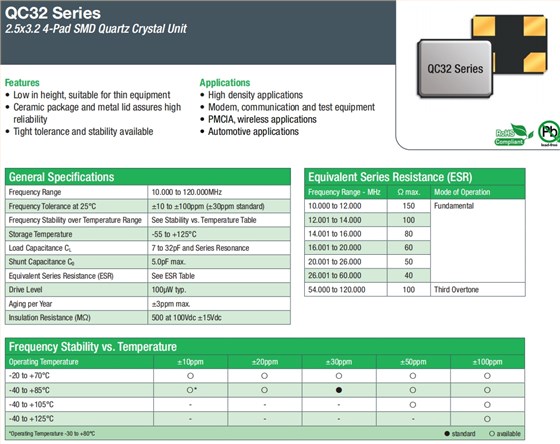

QC32物联网晶振,康泰克石英晶振,QC3260.0000F12B23R参数表
| General Specifications | |||||||||||||||||||
| Frequency Range | 60.000MHz | ||||||||||||||||||
| Frequency Tolerance at 25°C | ±10 to ±100ppm (±30ppm standard) | ||||||||||||||||||
| Frequency Stability over Temperature Range | See Stability vs. Temperature Table | ||||||||||||||||||
| Storage Temperature | -55 to +125°C | ||||||||||||||||||
| Load Capacitance CL | 7 to 32pF and Series Resonance | ||||||||||||||||||
| Shunt Capacitance C0 | 5.0pF max. | ||||||||||||||||||
| Equivalent Series Resistance (ESR) | See ESR Table | ||||||||||||||||||
| Drive Level | 100μW typ. | ||||||||||||||||||
| Aging per Year | ±3ppm max. | ||||||||||||||||||
| Insulation Resistance (MΩ) | 500 at 100Vdc ±15Vdc | ||||||||||||||||||

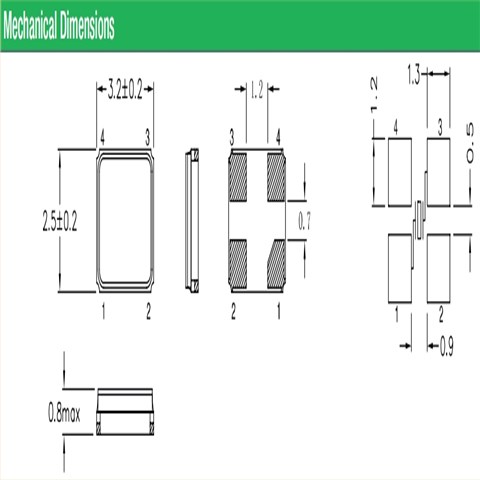

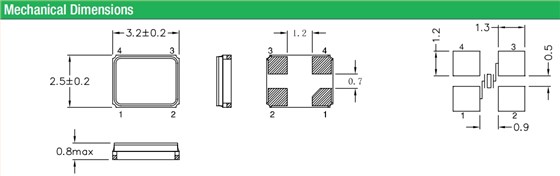

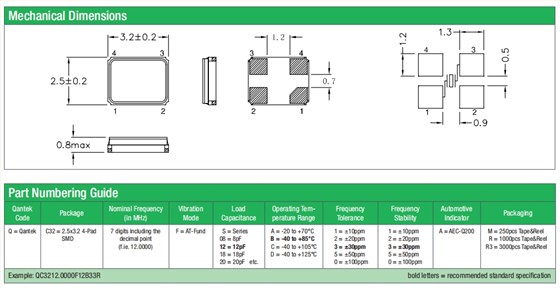

QC32物联网晶振,康泰克石英晶振,QC3260.0000F12B23R 尺寸图

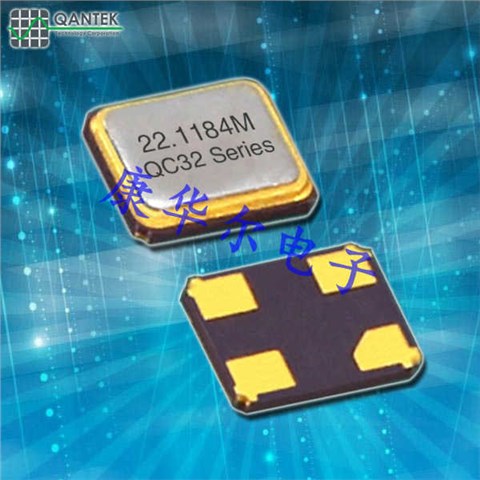

QC32物联网晶振,康泰克石英晶振,QC3260.0000F12B23R
石英晶振产品特性：
高度低，适用于薄型设备
陶瓷包装和金属盖确保可靠性
具有紧密的公差和稳定性
