康泰克SMD晶振,QC5A20.0000F8B32R,QC5A数字视频晶振，尺寸5.0x3.2mm，频率20MHZ，Qantek晶振，无源贴片晶振，贴片石英晶体，无源晶振，水晶振动子，石英晶振，石英晶体谐振器，5032mm贴片晶振，SMD无源晶体，石英无源晶体，SMD晶振，环保晶振，轻薄型晶振，高性能晶振，高质量晶振，低耗能晶振，低损耗晶振，低功耗晶振，无线应用晶振，高密度应用晶振，测试设备晶振，汽车应用晶振，数字视频专用晶振，娱乐设备晶振，可穿戴设备晶振，智能家居晶振，具有高性能低耗能的特点.
石英晶振产品适合用于高密度应用，调制解调器、通信和测试设备，PMCIA，无线应用，汽车应用，数字视频，娱乐设备等领域。康泰克SMD晶振,QC5A20.0000F8B32R,QC5A数字视频晶振.

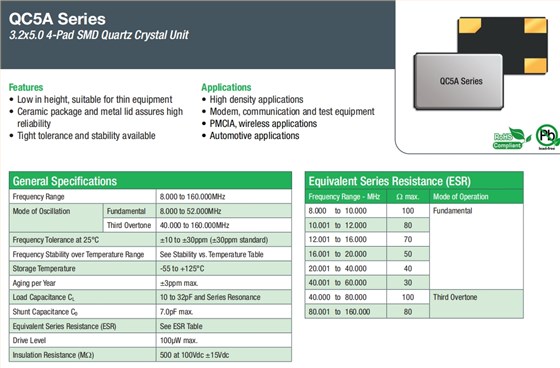

康泰克SMD晶振,QC5A20.0000F8B32R,QC5A数字视频晶振参数表
| General Specifications | |||||||||||||||||
| Frequency Range | 20.000MHz | ||||||||||||||||
| Mode of Oscillation | Fundamental | 8.000 to 52.000MHz | |||||||||||||||
| Third Overtone | 40.000 to 160.000MHz | ||||||||||||||||
| Frequency Tolerance at 25°C | ±10 to ±30ppm (±30ppm standard) | ||||||||||||||||

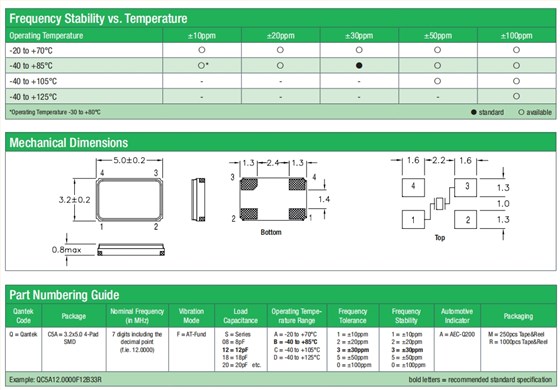

| Frequency Stability over Temperature Range | See Stability vs. Temperature Table | ||||||||||||||||
| Storage Temperature | -55 to +125°C | ||||||||||||||||
| Aging per Year | ±3ppm max. | ||||||||||||||||
| Load Capacitance CL | 10 to 32pF and Series Resonance | ||||||||||||||||
| Shunt Capacitance C0 | 7.0pF max. | ||||||||||||||||
| Equivalent Series Resistance (ESR) | See ESR Table | ||||||||||||||||
| Drive Level | 100μW max. | ||||||||||||||||
| Insulation Resistance (MΩ) | 500 at 100Vdc ±15Vdc | ||||||||||||||||

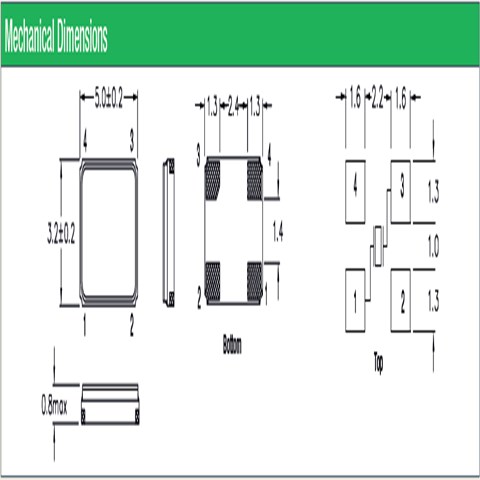

康泰克SMD晶振,QC5A20.0000F8B32R,QC5A数字视频晶振 尺寸图

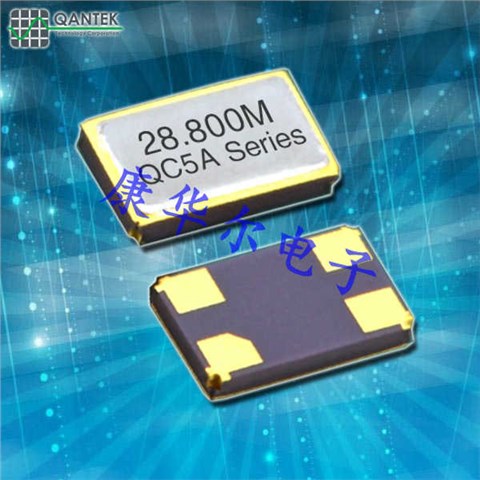

康泰克SMD晶振,QC5A20.0000F8B32R,QC5A数字视频晶振
晶振产品特性：
高度低，适用于薄型设备
陶瓷包装和金属盖确保可靠性
具有紧密的公差和稳定性
