6G以太网晶振\X2U026000B81HBZ-DHPZ\HSX211SR高性能晶振\HELE水晶振动子，尺寸2.0x1.6mm，频率26MHZ，SMD晶振，水晶振动子，石英晶体谐振器，贴片石英晶体，无源石英晶振，轻薄型晶振，环保晶振，四脚无源晶振，蓝牙模块晶振，6G以太网晶振，无线设备晶振，小型设备晶振，智能音响晶振，高性能晶振，高品质晶振，低损耗晶振，便携式设备晶振，网络设备晶振，消费电子专用晶振，可穿戴设备晶振，具有良好的耐压性能.
SMD晶体产品被广泛应用各个领域之中，尤其适合用于蓝牙模块，无线设备，小型设备，智能音响，便携式设备，网络设备，消费电子，可穿戴设备，6G以太网等领域。6G以太网晶振\X2U026000B81HBZ-DHPZ\HSX211SR高性能晶振\HELE水晶振动子.

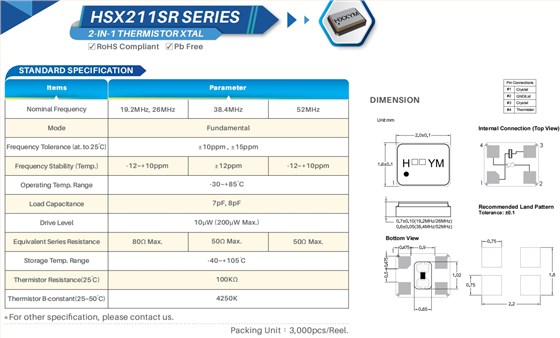

6G以太网晶振\X2U026000B81HBZ-DHPZ\HSX211SR高性能晶振\HELE水晶振动子参数图
| Items | parameter | ||
| Frequency Range | 26MHZ | 38.4MHZ | 52MHZ |
| Mode | Fundamental | ||
| Frequency Tolerance(at.25℃) | ±10ppm，±15ppm | ||
| Frequency Stability(Temp.) | -12~+10ppm | +12ppm | -12~+10ppm |
| Operating Temp.Range | -30°C ~ 85°C | ||
| Load Capacitance | 7pF,8pF | ||
| Drive Level | 10µW(200µW Max.) | ||
| Equivalent Series Resistance | 80 Ω Max. | 50 Ω Max. | 50 Ω Max. |
| Storage Temp.Range | -40°C ~ 105°C | ||
| Thermistor Resistance(25) | 100KΩ | ||
| Thermistor B-constant(25~50℃) |
4250K |
||

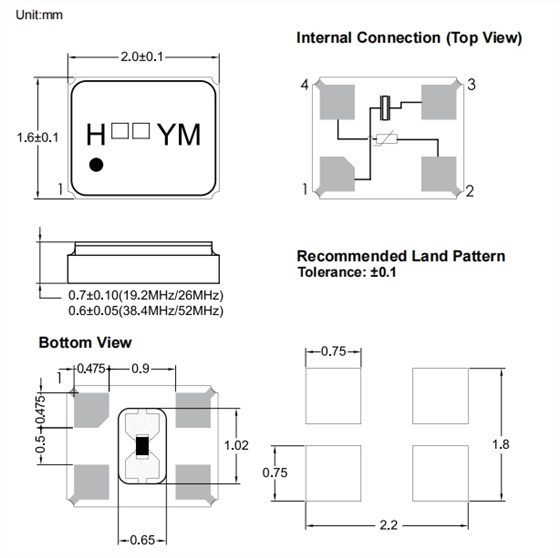

6G以太网晶振\X2U026000B81HBZ-DHPZ\HSX211SR高性能晶振\HELE水晶振动子尺寸图
产品特性：
SMD晶振封装
非常低的老化
优异的耐热性和抗冲击性
更多相关HELE加高晶振型号
| 台产晶振编码 | Series | 品牌 | 描述 | 频率 | 频率稳定性 |
| X2B026000M81H-HS | HSX221SA | HELE加高晶振 | HSX221SA/26MHZ/8PF/7PPM/15PPM/-4 | 26.000MHZ | ±15ppm |
| X2B016000BA1H-U | HSX221SA | HELE加高晶振 | HSX221SA/16MHZ/10PF/10PPM/10PPM/ | 16.000MHZ | ±10ppm |
| X2B012000BC1H-U | HSX221SA | HELE加高晶振 | HSX221SA/12MHZ/12PF/10PPM/20PPM/ | 12.000MHZ | ±20ppm |
| X2B040000BC1H-DHZ | HSX221SA | HELE加高晶振 | HSX221SA/40MHZ/12PF/10PPM/10PPM/ | 40.000MHZ | ±10ppm |
| X2U026000B81HBZ-DHPZ | HSX211SR | HELE加高晶振 | HSX211SR/26MHZ/8PF/10PPM/-40~105 | 26.000MHZ | - |
| X2U019200BZ1H-CEHQZ | HSX211SR | HELE加高晶振 | HSX211SR/19.2MHZ/7PF/10PPM/-40~1 | 19.20MHZ | - |
| X2U038400B81H-EPQZ | HSX211SR | HELE加高晶振 | HSX211SR/38.4MHZ/8PF/10PPM/-30~1 | 38.40MHZ | - |
| X12A040000BZ1H-HZ | HSX1210A | HELE加高晶振 | HSX1210A/40MHZ/6PF/10PPM/12PPM/- | 40.000MHZ | ±10ppm |
| X12A032000B81H-HZ | HSX1210A | HELE加高晶振 | HSX1210A/32MHZ/8PF/10PPM/10PPM/- | 32.000MHZ | ±10ppm |
| X2B012000DC1H-X | HSX221SA | HELE加高晶振 | SMD Crystal Resonators 12MHz ±20ppm SMD-2520_4P RoHS | 12.000MHZ | ±20ppm |
| X2B016000B91H-HU | HSX221SA | HELE加高晶振 | SMD Crystal Resonators 16MHz ±10ppm SMD-2520_4P RoHS | 16.000MHZ | ±10ppm |
| X2B027000BC1H-HU | HSX221SA | HELE加高晶振 | SMD Crystal Resonators 27MHz ±10ppm SMD-2520_4P RoHS | 27.000MHZ | ±10ppm |
| X2B032000BC1H-HZ | HSX221SA | HELE加高晶振 | SMD Crystal Resonators SMD-2520_4P RoHS | 32.000MHZ | - |
| X2C048000L71HA-CEHZ | HSX211S-AU | HELE加高晶振 | SMD Crystal Resonators 48MHz ±8ppm SMD-2016_4P RoHS | 48.000MHZ | ±8ppm |
| X2B024000BC1HA-V | HSX221SA | HELE加高晶振 | SMD Crystal Resonators SMD_2520-4P RoHS | 24.000MHZ | - |
| X2B026000B91H-HZ | HSX221SA | HELE加高晶振 | SMD Crystal Resonators 26MHz ±10ppm SMD-2520_4P RoHS | 26.000MHZ | ±10ppm |
| X2B026000B71HZ-HPR | HSX221SA | HELE加高晶振 | SMD Crystal Resonators 26MHz ±10ppm SMD-2520_4P RoHS | 26.000MHZ | ±10ppm |
| X2B026000B71HZ | HSX221SA | HELE加高晶振 | SMD Crystal Resonators 26MHz ±7ppm SMD-2520_4P RoHS | 26.000MHZ | ±7ppm |
| X2B040000BF1H-HZ | HSX221SA | HELE加高晶振 | SMD Crystal Resonators 40MHz ±10ppm SMD-2520_4P RoHS | 40.000MHZ | ±10ppm |
| X2B024000BCIH-HV | HSX221SA | HELE加高晶振 | SMD Crystal Resonators 24MHz ±10ppm SMD-2520_4P RoHS | 24.000MHZ | ±10ppm |
| X2C024000BA1H | HSX211S-AU | HELE加高晶振 | SMD Crystal Resonators SMD-2016 RoHS | 24.000MHZ | ±10ppm |
| X2C024000B71H-V | HSX211S-AU | HELE加高晶振 | SMD Crystal Resonators SMD,2.0x1.6mm RoHS | 24.000MHZ | ±10ppm |
| X2B050000BC1H-V | HSX221SA | HELE加高晶振 | SMD Crystal Resonators SMD,2.5x2.0mm RoHS | 50.000MHZ | 10PPM |
| X2C024000FA1H-X | HSX211S-AU | HELE加高晶振 | SMD Crystal Resonators SMD,2.0x1.6mm RoHS | 24.000MHZ | 30PPM |
| X2C016000B81H-HPU | HSX211S-AU | HELE加高晶振 | SMD Crystal Resonators SMD-2016 RoHS | 16.000MHZ | 10PPM |
| X2C024000B91H-HZ | HSX211S-AU | HELE加高晶振 | SMD Crystal Resonators SMD,2.0x1.6mm RoHS | 24.000MHZ | 10PPM |
| X2C037400BG1H-U | HSX211S-AU | HELE加高晶振 | SMD Crystal Resonators SMD-2016 RoHS | 37.400MHZ | 10PPM |
| X2B040000BF1H-HT | HSX221SA | HELE加高晶振 | SMD Crystal Resonators SMD-2520 RoHS | 40.000MHZ | ±15ppm |
| X2B030000BA1H-U | HSX221SA | HELE加高晶振 | SMD Crystal Resonators SMD,2.5x2.0mm RoHS | 30.000MHZ | 10PPM |
| X2B026000B91H-HR | HSX221SA | HELE加高晶振 | SMD Crystal Resonators SMD,2.5x2.0mm RoHS | 26.000MHZ | 10PPM |
| X2B038400BA1H-U | HSX221SA | HELE加高晶振 | SMD Crystal Resonators SMD-2520 RoHS | 38.400MHZ | 10PPM |
| X2B040000B91H-U | HSX221SA | HELE加高晶振 | SMD Crystal Resonators SMD,2.5x2.0mm RoHS | 40.000MHZ | 10PPM |
| X2B032000C81H-HU | HSX221SA | HELE加高晶振 | SMD Crystal Resonators SMD,2.5x2.0mm RoHS | 32.000MHZ | ±15ppm |
| X2B012000B91H-U | HSX221SA | HELE加高晶振 | SMD Crystal Resonators SMD,2.5x2.0mm RoHS | 12.000MHZ | 10PPM |
| X2C027120FA1H-HV | HSX211S-AU | HELE加高晶振 | SMD Crystal Resonators SMD,2.0x1.6mm RoHS | 27.120MHZ | ±30ppm |
| X2B030000BA1H-HW | HSX221SA | HELE加高晶振 | SMD Crystal Resonators SMD,2.5x2.0mm RoHS | 30.000MHZ | 10PPM |
| X2B026000B91H-HV | HSX221SA | HELE加高晶振 | SMD Crystal Resonators SMD-2520 RoHS | 26.000MHZ | 10PPM |
| X2C040000B91HA-Z | HSX211S-AU | HELE加高晶振 | SMD Crystal Resonators SMD-2016 RoHS | 40.000MHZ | 10PPM |
| X2B026000BC1H-Z | HSX221SA | HELE加高晶振 | SMD Crystal Resonators SMD,2.5x2.0mm RoHS | 26.000MHZ | 10PPM |
| X2B016000BC1H-HV | HSX221SA | HELE加高晶振 | SMD Crystal Resonators SMD,2.5x2.0mm RoHS | 16.000MHZ | 10PPM |
| X2C016000B91H-R | HSX211S-AU | HELE加高晶振 | SMD Crystal Resonators SMD,2.0x1.6mm RoHS | 16.000MHZ | 10PPM |
| X2B019200BZ1H-CHZ | HSX221SA | HELE加高晶振 | SMD Crystal Resonators SMD,2.5x2.0mm RoHS | 19.200MHZ | 10PPM |
| X2C032000BA1HA-U | HSX211S-AU | HELE加高晶振 | SMD Crystal Resonators SMD,2.0x1.6mm RoHS | 32.000MHZ | 10PPM |
| X2B026000B91H-U | HSX221SA | HELE加高晶振 | SMD Crystal Resonators SMD,2.5x2.0mm RoHS | 26.000MHZ | 10PPM |
| X2B026000L91H-S | HSX221SA | HELE加高晶振 | SMD Crystal Resonators SMD,2.5x2.0mm RoHS | 26.000MHZ | ±8ppm |
| X2C048000L71H-CEHZ | HSX211S-AU | HELE加高晶振 | SMD Crystal Resonators SMD,2.0x1.6mm RoHS | 48.000MHZ | ±8ppm |
| X2B030000FA1H-X | HSX221SA | HELE加高晶振 | SMD Crystal Resonators SMD-2520 RoHS | 30.000MHZ | ±30ppm |
| X2C032000BC1H-R | HSX211S-AU | HELE加高晶振 | SMD Crystal Resonators SMD,2.0x1.6mm RoHS | 32.000MHZ | 10PPM |
| X2B024000FK1H-V | HSX221SA | HELE加高晶振 | SMD Crystal Resonators SMD,2.5x2.0mm RoHS | 24.000MHZ | ±30ppm |
| X2B026000B81H-CHZ | HSX221SA | HELE加高晶振 | SMD Crystal Resonators SMD,2.5x2.0mm RoHS | 26.000MHZ | 10PPM |
| X2C038400BA1H-HZ | HSX211S-AU | HELE加高晶振 | SMD Crystal Resonators SMD-2016 RoHS | 38.400MHZ | 10PPM |
| X2B02863ADC1H-W | HSX221SA | HELE加高晶振 | SMD Crystal Resonators SMD,2.5x2.0mm RoHS | 28.63636MHZ | ±20ppm |
| X2B032000D81H-U | HSX221SA | HELE加高晶振 | SMD Crystal Resonators SMD,2.5x2.0mm RoHS | 32.000MHZ | ±20ppm |
| X2B025000BI1H-U | HSX221SA | HELE加高晶振 | SMD Crystal Resonators SMD,2.5x2.0mm RoHS | 25.000MHZ | 10PPM |
| X2C032000B81H-HS | HSX211S-AU | HELE加高晶振 | SMD Crystal Resonators SMD,2.0x1.6mm RoHS | 32.000MHZ | ±10ppm |
| X2C026000B71H-HZ | HSX211S-AU | HELE加高晶振 | SMD Crystal Resonators 26MHz ±10ppm SMD-2016_4P RoHS | 26.000MHZ | ±10ppm |
| X2C048000BA1H-HZ | HSX211S-AU | HELE加高晶振 | SMD Crystal Resonators SMD,2.0x1.6mm RoHS | 48.000MHZ | ±10ppm |
| X2BO48000BZ1H-HZ | HSX221SA-AU | HELE加高晶振 | 48.000MHZ | ||
| X2CO48000B71H-CEHZ | HSX211S-AU | HELE加高晶振 | 48.000MHZ | ||
| X2CO48000R71HA-CEHZ | HSX211S-AU | HELE加高晶振 | 48.000MHZ | ||
| X2CO40000BD1H-HZ | HSX211S-AU | HELE加高晶振 | 40.000MHZ | ||
| X2BO38400R71H-HPZ | HSX221SA-AU | HELE加高晶振 | 38.400MHZ | ||
| X2BO37400BC1H-S | HSX221SA-AU | HELE加高晶振 | 37.400MHZ | ||
| X2BO32000BC1H-HZ | HSX221SA | HELE加高晶振 | 32.000MHZ | ||
| X2BO30000C81H-HU | HSX221SA-AU | HELE加高晶振 | 30.000MHZ | ||
| X2CO27120FC1H-HX | HSX211S-AU | HELE加高晶振 | 27.120MHZ | ||
| X2BO27000FC1H-HX | HSX221SA | HELE加高晶振 | 27.000MHZ | ||
| X2BO19200FC1H-HX | HSX221SA | HELE加高晶振 | 19.200MHZ | ||
| X2BO25000II1S-H | HSX221S | HELE加高晶振 | 25.000MHZ |
