XMP-5135-1A-12pF-25MHz,XMP-5100系列,KVG石英振动子,25MHZ,7050mm,德国进口晶振,KVG无源晶振,四脚贴片晶振,SMD晶振,石英晶体谐振器,贴片石英晶体,25MHZ无源晶振,7050mm晶体,尺寸7.0×5.0mm,频率25MHZ,负载12pF,环保晶振,高品质晶振,高性能晶振,低功耗晶振,多媒体设备晶振,仪器设备晶振,小型设备晶振,网络应用晶振.
XMP-5135-1A-12pF-25MHz,XMP-5100系列,KVG石英振动子,25MHZ,7050mm特点:
7.0mmx5.0mm陶瓷SMD晶振封装
频率范围6~80MHZ
高品质高性能
符合ROHS/无铅
XMP-5135-1A-12pF-25MHz,XMP-5100系列,KVG石英振动子,25MHZ,7050mm 参数表
| Parameter: | Values (Range): | |||||||||||||||||||||||
| Frequency range, Mode of vibration : |
1:25.0 MHz fundamental 3:30.0 MHz to 80.0 MHz 3rdovertone |
|||||||||||||||||||||||
| Operating temperature range options : |
1:-10 to +60 °C 2:-20 to +70 °C 3:-40 to +85 °C |
|||||||||||||||||||||||
|
Frequency stability vs. temperature options : ± 5 ppm (available for temp.range 1 ): |
1 2 3 4 5 6 |
|||||||||||||||||||||||
|
± 10 ± 15 ± 20 ± 30 ± 50 |
ppm ppm ppm ppm ppm |
|||||||||||||||||||||||
| Adjustment tolerance at +25 °C : |
A:± 10 D:± 25 |
ppm ppm |
B:± 15 E:± 30 |
ppm ppm |
C:± 20 F:± 50 |
ppm ppm |
||||||||||||||||||
| Load capacity CL : | 12 pF to 32 pF and series resonance available | |||||||||||||||||||||||
| Resonance Resistance R1max: | See table below | |||||||||||||||||||||||
| Static Capacitance Co : | 5 pF max | |||||||||||||||||||||||
| Drive level PD: | 0.01 mW nom.; 0.1 mW max. | |||||||||||||||||||||||
| Aging : | <±1 ppm/year | |||||||||||||||||||||||
| Storage temperature range : | -55 °C to +125 °C | |||||||||||||||||||||||

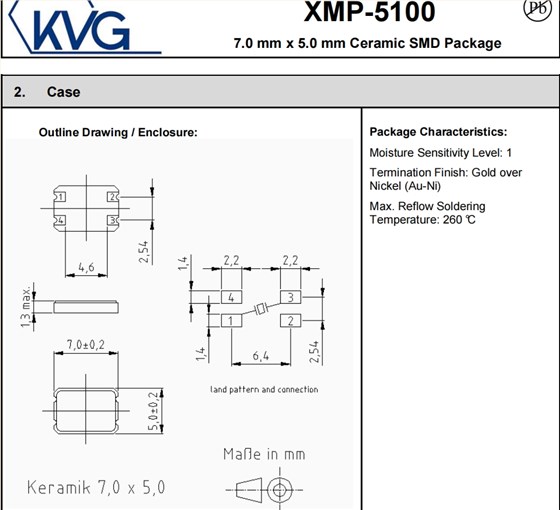

XMP-5135-1A-12pF-25MHz,XMP-5100系列,KVG石英振动子,25MHZ,7050mm 尺寸图
