12.90000|KXO-200|1MHz|GEYER晶振

频率：1MHZ

尺寸：20.8 x 13.2 x 5.08mm

贴片石英晶体,体积小,焊接可采用自动贴片系统,产品本身小型,表面贴片晶振,特别适用于有小型化要求的电子数码产品市场领域,因产品小型,薄型优势,耐环境特性,包括耐高温,耐冲击性等,在移动通信领域得到了广泛的应用,晶振产品本身可发挥优良的电气特性,达到了无铅焊接的高温回流温度曲线的标准.

订购热线：0755-27838351

12.90000|KXO-200|1 MHz|GEYER|晶振|石英晶振|贴片晶振|SMD晶振|进口晶振

编码	12.90000
型号	KXO-200
包	DIL 14
频率	1.0 MHz
频率稳定度	± 100 ppm
工作温度范围	-20°C ~ +70°C
储存温度范围	-55°C ~ + 125°C
电源电压	+5.0 V DC ± 10 %
最大供电电流	15 mA
对称	60 / 40 % at ½ VDD
最大上升和下降时间	10 ns
最高0级	+0.5 V ( 10 % VDD)
“1”级最小	+4.5 V (90 % VDD)
输出负载	1 – 8 TTL or CL = 50 pF typ.
逻辑集合	TTL or HCMOS compatible
包装单位	25 pcs.

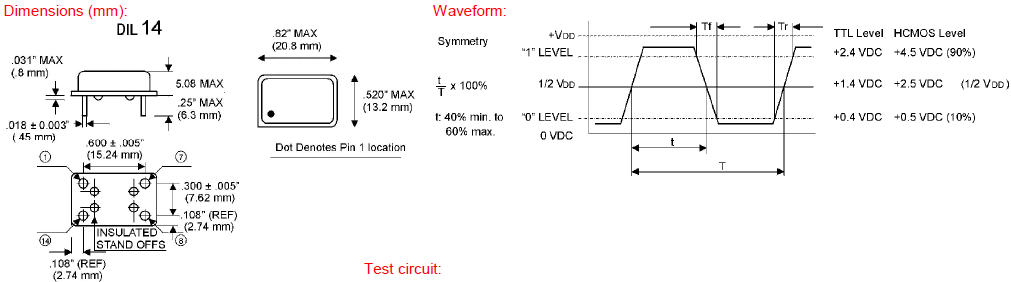

KXO-200 20.8_13.2 OSC

kx200

编码	生产商	型号	频率	电压	频率稳定度	工作温度
12.95582	Geyer晶振	KXO-V95	14.7456 MHz	-	±50ppm	-40°C ~ 85°C
12.95549	Geyer晶振	KXO-V95T	32 MHz	-	±50ppm	-40°C ~ 85°C
12.95531	Geyer晶振	KXO-V95T	3.6864 MHz	-	±50ppm	-40°C ~ 85°C
12.90328	Geyer晶振	KXO-V94T	16 MHz	3.3V	±50ppm	-40°C ~ 85°C
12.90321	Geyer晶振	KXO-V94	14.7456 MHz	3.3V	±50ppm	-40°C ~ 85°C
12.95545	Geyer晶振	KXO-V95T	20 MHz	-	±50ppm	-40°C ~ 85°C
12.95103	Geyer晶振	KXO-V96T	32 MHz	-	±50ppm	-40°C ~ 85°C
12.9558	Geyer晶振	KXO-V95	3.579545 MHz	-	±50ppm	-20°C ~ 70°C
12.95094	Geyer晶振	KXO-V96T	14.31818 MHz	-	±50ppm	-40°C ~ 85°C
12.95034	Geyer晶振	KXO-V96T	20 MHz	-	±50ppm	-40°C ~ 85°C
12.95542	Geyer晶振	KXO-V95T	12 MHz	-	±50ppm	-40°C ~ 85°C
12.94474	Geyer晶振	KXO-V97T	27 MHz	-	±100ppm	-40°C ~ 85°C
12.90343	Geyer晶振	KXO-V94T	12 MHz	-	±50ppm	-40°C ~ 85°C
12.90325	Geyer晶振	KXO-V94	3.6864 MHz	3.3V	±50ppm	-40°C ~ 85°C
12.90311	Geyer晶振	KXO-V94	14.7456 MHz	3.3V	±100ppm	-40°C ~ 85°C
12.95128	Geyer晶振	KXO-V96E	27 MHz	-	±50ppm	-40°C ~ 85°C
12.95102	Geyer晶振	KXO-V96T	80 MHz	-	±50ppm	-40°C ~ 85°C
12.90333	Geyer晶振	KXO-V94T	40 MHz	-	±50ppm	-40°C ~ 85°C
12.90337	Geyer晶振	KXO-V94T	26 MHz	-	±50ppm	-40°C ~ 85°C
12.94273	Geyer晶振	KXO-V97T	32 MHz	-	±100ppm	-40°C ~ 85°C
12.94365	Geyer晶振	KXO-V97T	14.31818 MHz	-	±100ppm	-40°C ~ 85°C
12.95546	Geyer晶振	KXO-V95T	26 MHz	-	±50ppm	-40°C ~ 85°C
12.92106	Geyer晶振	KXO-V97T	65 MHz	-	±100ppm	-40°C ~ 85°C
12.95571	Geyer晶振	KXO-V95T	32.768 kHz	-	±30ppm	-40°C ~ 85°C
12.90344	Geyer晶振	KXO-V94T	4 MHz	-	±50ppm	-40°C ~ 85°C
12.95538	Geyer晶振	KXO-V95	27.12 MHz	-	±50ppm	-20°C ~ 70°C
12.94364	Geyer晶振	KXO-V97T	48 MHz	-	±100ppm	-40°C ~ 85°C
12.95568	Geyer晶振	KXO-V95F	48 MHz	-	±50ppm	-40°C ~ 85°C
12.90324	Geyer晶振	KXO-V94	27 MHz	3.3V	±50ppm	-40°C ~ 85°C
12.94609	Geyer晶振	KXO-V99	1 MHz	-	±50ppm	-40°C ~ 85°C
12.95101	Geyer晶振	KXO-V96T	48 MHz	-	±50ppm	-40°C ~ 85°C
12.92146	Geyer晶振	KXO-V97T	22.1184 MHz	-	±100ppm	-40°C ~ 85°C
12.90327	Geyer晶振	KXO-V94T	48 MHz	3.3V	±50ppm	-40°C ~ 85°C
12.95091	Geyer晶振	KXO-V96T	10 MHz	-	±50ppm	-40°C ~ 85°C
12.94449	Geyer晶振	KXO-V97T	18.432 MHz	-	±100ppm	-40°C ~ 85°C
12.94456	Geyer晶振	KXO-V97T	3.6864 MHz	-	±100ppm	-40°C ~ 85°C
12.95551	Geyer晶振	KXO-V95T	48 MHz	-	±50ppm	-40°C ~ 85°C
12.90322	Geyer晶振	KXO-V94T	20 MHz	3.3V	±50ppm	-40°C ~ 85°C
12.95524	Geyer晶振	KXO-V95E	25 MHz	-	±100ppm	-40°C ~ 85°C
12.9034	Geyer晶振	KXO-V94T	32.768 kHz	-	±20ppm	-40°C ~ 85°C
12.95543	Geyer晶振	KXO-V95T	14.31818 MHz	-	±50ppm	-40°C ~ 85°C
12.95104	Geyer晶振	KXO-V96-18	32.768 kHz	-	±50ppm	-20°C ~ 70°C
12.94422	Geyer晶振	KXO-V97T	11.0592 MHz	-	±100ppm	-40°C ~ 85°C
12.95548	Geyer晶振	KXO-V95T	4 MHz	-	±50ppm	-40°C ~ 85°C
12.90307	Geyer晶振	KXO-V94	1.8432 MHz	3.3V	±50ppm	-40°C ~ 85°C
