6G以太网振荡器|535BB106M250DGR|思佳讯Skyworks晶振|Si535差分晶振，尺寸7.0×5.0mm，频率106.25MHZ，电压3.3V，输出逻辑LVDS，LVDS差分输出振荡器，时钟晶体振荡器，LVDS输出晶振，贴片差分晶振，7050mm差分晶振，低功耗差分晶振，低电压差分晶振，低损耗差分振荡器，低抖动差分晶振，低相位差分晶振，低相噪差分振荡器，高质量差分晶振，高性能差分振荡器，有源差分晶振，路由器差分晶振，通讯模块差分振荡器，测试测量差分晶振，网络设备差分晶振，电信应用差分晶振，具有高质量高性能的特点。

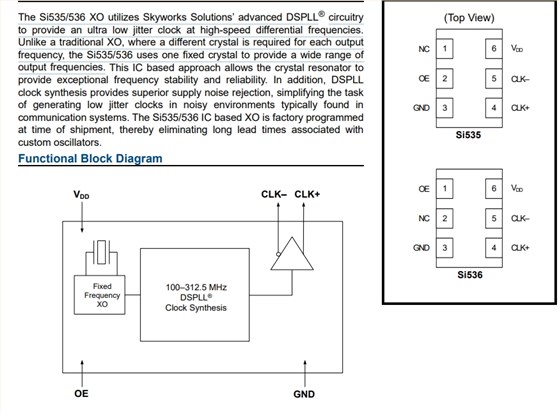

Si535/536 XO石英晶体振荡器采用Skyworks Solutions的先进DSPLL®电路以提供高速差分频率的超低抖动时钟。与传统XO不同，在传统XO中，每个输出都需要不同的晶体频率，Si535/536使用一个固定晶体来提供宽范围的输出频率。这种基于IC的方法允许晶体谐振器提供卓越的频率稳定性和可靠性。6G以太网振荡器|535BB106M250DGR|思佳讯Skyworks晶振|Si535差分晶振.
6G以太网振荡器|535BB106M250DGR|思佳讯Skyworks晶振|Si535差分晶振参数图
| Parameter | Symbol | Test Condition | Min | Typ | Max | Unit | ||||||||||||||||
| Supply Voltage1 | VDD | 3.3 V option | 2.97 | 3.3 | 3.63 | V | ||||||||||||||||
| 2.5 V option | 2.25 | 2.5 | 2.75 | V | ||||||||||||||||||
| Supply Current | IDD |
Output enabled LVPECL LVDS |
— — |
111 90 |
121 98 |
mA | ||||||||||||||||
| Tristate mode | — | 60 | 75 | mA | ||||||||||||||||||
| Output Enable (OE)2 | VIH | 0.75 x VDD | — | — | V | |||||||||||||||||
| VIL | — | — | 0.5 | V | ||||||||||||||||||
| Operating Temperature Range | TA | –40 | — | 85 | °C | |||||||||||||||||
| Parameter | Symbol | Test Condition | Min | Typ | Max | Unit | ||||||||||||||||
| Nominal Frequency1 | fO | LVPECL/LVDS | 100 | — | 312.5 | MHz | ||||||||||||||||
| Initial Accuracy | fi |
Measured at +25 °C at time of shipping |
— | ±1.5 | — | ppm | ||||||||||||||||
| Temperature Stability1,2 |
–7 –20 |
— — |
+7 +20 |
ppm | ||||||||||||||||||
| Aging | fa | Frequency drift over first year | ±3 | ppm | ||||||||||||||||||
|
Frequency drift over 20 year life |
— | — | ±10 | ppm | ||||||||||||||||||
| Total Stability2 | Temp stability = ±20 ppm | — | — | ±31.5 | ppm | |||||||||||||||||
| Temp stability = ±7 ppm | — | — | 20 | |||||||||||||||||||
| Powerup Time3 | tOSC | TA= –40°C — +85°C | 10 | ms | ||||||||||||||||||
| Parameter | Symbol | Test Condition | Min | Typ | Max | Unit | ||||||||||||||||
| LVPECL Output Option1 | VO | Mid-level | VDD– 1.42 | — | VDD– 1.25 | V | ||||||||||||||||
| VOD | Swing (diff) | 1.1 | — | 1.9 | VPP | |||||||||||||||||
| VSE | Swing (Single-ended) | 0.55 | — | 0.95 | VPP | |||||||||||||||||
| LVDS Output Option2 | VO | Mid-level | 1.125 | 1.20 | 1.275 | V | ||||||||||||||||
| VOD | Swing (diff) | 0.5 | 0.7 | 0.9 | VPP | |||||||||||||||||
| Rise/Fall time (20/80%) | tR,tF | — | — | 350 | ps | |||||||||||||||||
| Symmetry (duty cycle) | SYM | Differential | 45 | — | 55 | % | ||||||||||||||||
| Parameter | Symbol | Test Condition | Min | Typ | Max | Unit | ||||||||||||||||
|
LVPECL/LVDS Phase Jitter* (RMS) |
φJ | 10 kHz to 1 MHz (data center) | — | 0.19 | 0.35 | ps | ||||||||||||||||
| 12 kHz to 20 MHz brickwall | — | 0.25 | 0.40 | ps | ||||||||||||||||||
| Parameter | Symbol | Test Condition | Min | Typ | Max | Unit | ||||||||||||||||
| LVPECL/LVDS Period Jitter* | JPER | RMS | — | 2 | — | ps | ||||||||||||||||
| Peak-to-Peak | — | 14 | — | ps | ||||||||||||||||||
6G以太网振荡器|535BB106M250DGR|思佳讯Skyworks晶振|Si535差分晶振尺寸图
晶体振荡器产品特性：
可从中选择频率100MHz至312.5MHz
具有卓越性能的第三代DSPLL®抖动性能和高功率电源噪声抑制
频率稳定性比SAW振荡器
LVPECL和LVDS输出
3.3和2.5 V电源选项
行业标准5 x 7mm包装和引脚
无铅/符合RoHS
更多相关Skyworks晶振型号
| Mfr Part # | Mfr | Description | Series | Frequency | Output | Voltage - Supply | Frequency Stability |
| 535AC100M000DG | Skyworks有源晶振 | XTAL OSC XO 100.0000MHZ LVPECL | Si535 | 100 MHz | LVPECL | 3.3V | ±7ppm |
| 535AB125M000DGR | Skyworks有源晶振 | XTAL OSC XO 125.0000MHZ LVPECL | Si535 | 125 MHz | LVPECL | 3.3V | ±20ppm |
| 535FB125M000DG | Skyworks有源晶振 | XTAL OSC XO 125.0000MHZ LVDS SMD | Si535 | 125 MHz | LVDS | 2.5V | ±20ppm |
| 535FB156M250DG | Skyworks有源晶振 | XTAL OSC XO 156.2500MHZ LVDS SMD | Si535 | 156.25 MHz | LVDS | 2.5V | ±20ppm |
| 535BC159M375DGR | Skyworks有源晶振 | XTAL OSC XO 159.3750MHZ LVDS SMD | Si535 | 159.375 MHz | LVDS | 3.3V | ±7ppm |
| 535BC312M500DGR | Skyworks有源晶振 | XTAL OSC XO 312.5000MHZ LVDS SMD | Si535 | 312.5 MHz | LVDS | 3.3V | ±7ppm |
| 535FB000172DGR | Skyworks有源晶振 | XTAL OSC XO 166.6286MHZ LVDS SMD | Si535 | 166.6286 MHz | LVDS | 2.5V | ±20ppm |
| 535FB000175DGR | Skyworks有源晶振 | XTAL OSC XO 167.3316MHZ LVDS SMD | Si535 | 167.3316 MHz | LVDS | 2.5V | ±20ppm |
| 535FB000292DGR | Skyworks有源晶振 | XTAL OSC XO 161.1328MHZ LVDS SMD | Si535 | 161.1328 MHz | LVDS | 2.5V | ±20ppm |
| 535FB000305DGR | Skyworks有源晶振 | XTAL OSC XO 156.2578MHZ LVDS SMD | Si535 | 156.2578 MHz | LVDS | 2.5V | ±20ppm |
| 535FB106M250DGR | Skyworks有源晶振 | XTAL OSC XO 106.2500MHZ LVDS SMD | Si535 | 106.25 MHz | LVDS | 2.5V | ±20ppm |
| 535FB150M000DGR | Skyworks有源晶振 | XTAL OSC XO 150.0000MHZ LVDS SMD | Si535 | 150 MHz | LVDS | 2.5V | ±20ppm |
| 535FB155M520DGR | Skyworks有源晶振 | XTAL OSC XO 155.5200MHZ LVDS SMD | Si535 | 155.52 MHz | LVDS | 2.5V | ±20ppm |
| 535FB159M375DGR | Skyworks有源晶振 | XTAL OSC XO 159.3750MHZ LVDS SMD | Si535 | 159.375 MHz | LVDS | 2.5V | ±20ppm |
| 535FB212M500DGR | Skyworks有源晶振 | XTAL OSC XO 212.5000MHZ LVDS SMD | Si535 | 212.5 MHz | LVDS | 2.5V | ±20ppm |
| 535FB312M500DGR | Skyworks有源晶振 | XTAL OSC XO 312.5000MHZ LVDS SMD | Si535 | 312.5 MHz | LVDS | 2.5V | ±20ppm |
| 535FC000172DGR | Skyworks有源晶振 | XTAL OSC XO 166.6286MHZ LVDS SMD | Si535 | 166.6286 MHz | LVDS | 2.5V | ±7ppm |
| 535FC000175DGR | Skyworks有源晶振 | XTAL OSC XO 167.3316MHZ LVDS SMD | Si535 | 167.3316 MHz | LVDS | 2.5V | ±7ppm |
| 535FC000305DGR | Skyworks有源晶振 | XTAL OSC XO 156.2578MHZ LVDS SMD | Si535 | 156.2578 MHz | LVDS | 2.5V | ±7ppm |
| 535FC106M250DGR | Skyworks有源晶振 | XTAL OSC XO 106.2500MHZ LVDS SMD | Si535 | 106.25 MHz | LVDS | 2.5V | ±7ppm |
| 535FC150M000DGR | Skyworks有源晶振 | XTAL OSC XO 150.0000MHZ LVDS SMD | Si535 | 150 MHz | LVDS | 2.5V | ±7ppm |
| 535FC155M520DGR | Skyworks有源晶振 | XTAL OSC XO 155.5200MHZ LVDS SMD | Si535 | 155.52 MHz | LVDS | 2.5V | ±7ppm |
| 535FC156M250DGR | Skyworks有源晶振 | XTAL OSC XO 156.2500MHZ LVDS SMD | Si535 | 156.25 MHz | LVDS | 2.5V | ±7ppm |
| 535FC159M375DGR | Skyworks有源晶振 | XTAL OSC XO 159.3750MHZ LVDS SMD | Si535 | 159.375 MHz | LVDS | 2.5V | ±7ppm |
| 535FC212M500DGR | Skyworks有源晶振 | XTAL OSC XO 212.5000MHZ LVDS SMD | Si535 | 212.5 MHz | LVDS | 2.5V | ±7ppm |
| 535FC312M500DGR | Skyworks有源晶振 | XTAL OSC XO 312.5000MHZ LVDS SMD | Si535 | 312.5 MHz | LVDS | 2.5V | ±7ppm |
| 535BB000172DGR | Skyworks有源晶振 | XTAL OSC XO 166.6286MHZ LVDS SMD | Si535 | 166.6286 MHz | LVDS | 3.3V | ±20ppm |
| 535BB000175DGR | Skyworks有源晶振 | XTAL OSC XO 167.3316MHZ LVDS SMD | Si535 | 167.3316 MHz | LVDS | 3.3V | ±20ppm |
| 535BB000292DGR | Skyworks有源晶振 | XTAL OSC XO 161.1328MHZ LVDS SMD | Si535 | 161.1328 MHz | LVDS | 3.3V | ±20ppm |
| 535BB000305DGR | Skyworks Oscillator | XTAL OSC XO 156.2578MHZ LVDS SMD | Si535 | 156.2578 MHz | LVDS | 3.3V | ±20ppm |
| 535BB000335DGR | Skyworks有源晶振 | XTAL OSC XO 156.2539MHZ LVDS SMD | Si535 | 156.2539 MHz | LVDS | 3.3V | ±20ppm |
| 535BB106M250DGR | Skyworks有源晶振 | XTAL OSC XO 106.2500MHZ LVDS SMD | Si535 | 106.25 MHz | LVDS | 3.3V | ±20ppm |
| 535BB150M000DGR | Skyworks有源晶振 | XTAL OSC XO 150.0000MHZ LVDS SMD | Si535 | 150 MHz | LVDS | 3.3V | ±20ppm |
| 535BB155M520DGR | Skyworks有源晶振 | XTAL OSC XO 155.5200MHZ LVDS SMD | Si535 | 155.52 MHz | LVDS | 3.3V | ±20ppm |
| 535BB159M375DGR | Skyworks有源晶振 | XTAL OSC XO 159.3750MHZ LVDS SMD | Si535 | 159.375 MHz | LVDS | 3.3V | ±20ppm |
| 535BB212M500DGR | Skyworks有源晶振 | XTAL OSC XO 212.5000MHZ LVDS SMD | Si535 | 212.5 MHz | LVDS | 3.3V | ±20ppm |
| 535BC000172DGR | Skyworks有源晶振 | XTAL OSC XO 166.6286MHZ LVDS SMD | Si535 | 166.6286 MHz | LVDS | 3.3V | ±7ppm |
| 535BC000175DGR | Skyworks有源晶振 | XTAL OSC XO 167.3316MHZ LVDS SMD | Si535 | 167.3316 MHz | LVDS | 3.3V | ±7ppm |
| 535BC000292DGR | Skyworks有源晶振 | XTAL OSC XO 161.1328MHZ LVDS SMD | Si535 | 161.1328 MHz | LVDS | 3.3V | ±7ppm |
| 535BC000305DGR | Skyworks有源晶振 | XTAL OSC XO 156.2578MHZ LVDS SMD | Si535 | 156.2578 MHz | LVDS | 3.3V | ±7ppm |
| 535BC150M000DGR | Skyworks有源晶振 | XTAL OSC XO 150.0000MHZ LVDS SMD | Si535 | 150 MHz | LVDS | 3.3V | ±7ppm |
| 535BC155M520DGR | Skyworks有源晶振 | XTAL OSC XO 155.5200MHZ LVDS SMD | Si535 | 155.52 MHz | LVDS | 3.3V | ±7ppm |
| 535BB000172DG | Skyworks有源晶振 | XTAL OSC XO 166.6286MHZ LVDS SMD | Si535 | 166.6286 MHz | LVDS | 3.3V | ±20ppm |
| 535BB000175DG | Skyworks有源晶振 | XTAL OSC XO 167.3316MHZ LVDS SMD | Si535 | 167.3316 MHz | LVDS | 3.3V | ±20ppm |
| 535BB000292DG | Skyworks有源晶振 | XTAL OSC XO 161.1328MHZ LVDS SMD | Si535 | 161.1328 MHz | LVDS | 3.3V | ±20ppm |
| 535BB000305DG | Skyworks有源晶振 | XTAL OSC XO 156.2578MHZ LVDS SMD | Si535 | 156.2578 MHz | LVDS | 3.3V | ±20ppm |
| 535BB000335DG | Skyworks有源晶振 | XTAL OSC XO 156.2539MHZ LVDS SMD | Si535 | 156.2539 MHz | LVDS | 3.3V | ±20ppm |
| 535BB106M250DG | Skyworks有源晶振 | XTAL OSC XO 106.2500MHZ LVDS SMD | Si535 | 106.25 MHz | LVDS | 3.3V | ±20ppm |
| 535BB150M000DG | Skyworks有源晶振 | XTAL OSC XO 150.0000MHZ LVDS SMD | Si535 | 150 MHz | LVDS | 3.3V | ±20ppm |
| 535BB155M520DG | Skyworks有源晶振 | XTAL OSC XO 155.5200MHZ LVDS SMD | Si535 | 155.52 MHz | LVDS | 3.3V | ±20ppm |
| 535BB159M375DG | Skyworks有源晶振 | XTAL OSC XO 159.3750MHZ LVDS SMD | Si535 | 159.375 MHz | LVDS | 3.3V | ±20ppm |
| 535BB212M500DG | Skyworks有源晶振 | XTAL OSC XO 212.5000MHZ LVDS SMD | Si535 | 212.5 MHz | LVDS | 3.3V | ±20ppm |
| 535BC000172DG | Skyworks有源晶振 | XTAL OSC XO 166.6286MHZ LVDS SMD | Si535 | 166.6286 MHz | LVDS | 3.3V | ±7ppm |
| 535BC000175DG | Skyworks有源晶振 | XTAL OSC XO 167.3316MHZ LVDS SMD | Si535 | 167.3316 MHz | LVDS | 3.3V | ±7ppm |
| 535BC000292DG | Skyworks有源晶振 | XTAL OSC XO 161.1328MHZ LVDS SMD | Si535 | 161.1328 MHz | LVDS | 3.3V | ±7ppm |
| 535BC000305DG | Skyworks有源晶振 | XTAL OSC XO 156.2578MHZ LVDS SMD | Si535 | 156.2578 MHz | LVDS | 3.3V | ±7ppm |
| 535BC150M000DG | Skyworks有源晶振 | XTAL OSC XO 150.0000MHZ LVDS SMD | Si535 | 150 MHz | LVDS | 3.3V | ±7ppm |
| 535BC155M520DG | Skyworks有源晶振 | XTAL OSC XO 155.5200MHZ LVDS SMD | Si535 | 155.52 MHz | LVDS | 3.3V | ±7ppm |
| 535BC159M375DG | Skyworks有源晶振 | XTAL OSC XO 159.3750MHZ LVDS SMD | Si535 | 159.375 MHz | LVDS | 3.3V | ±7ppm |
| 535BC312M500DG | Skyworks有源晶振 | XTAL OSC XO 312.5000MHZ LVDS SMD | Si535 | 312.5 MHz | LVDS | 3.3V | ±7ppm |
| 535FB000172DG | Skyworks有源晶振 | XTAL OSC XO 166.6286MHZ LVDS SMD | Si535 | 166.6286 MHz | LVDS | 2.5V | ±20ppm |
| 535FB000175DG | Skyworks有源晶振 | XTAL OSC XO 167.3316MHZ LVDS SMD | Si535 | 167.3316 MHz | LVDS | 2.5V | ±20ppm |
| 535FB000292DG | Skyworks有源晶振 | XTAL OSC XO 161.1328MHZ LVDS SMD | Si535 | 161.1328 MHz | LVDS | 2.5V | ±20ppm |
| 535FB000305DG | Skyworks有源晶振 | XTAL OSC XO 156.2578MHZ LVDS SMD | Si535 | 156.2578 MHz | LVDS | 2.5V | ±20ppm |
| 535FB106M250DG | Skyworks有源晶振 | XTAL OSC XO 106.2500MHZ LVDS SMD | Si535 | 106.25 MHz | LVDS | 2.5V | ±20ppm |
| 535FB150M000DG | Skyworks有源晶振 | XTAL OSC XO 150.0000MHZ LVDS SMD | Si535 | 150 MHz | LVDS | 2.5V | ±20ppm |
| 535FB155M520DG | Skyworks有源晶振 | XTAL OSC XO 155.5200MHZ LVDS SMD | Si535 | 155.52 MHz | LVDS | 2.5V | ±20ppm |
| 535FB159M375DG | Skyworks有源晶振 | XTAL OSC XO 159.3750MHZ LVDS SMD | Si535 | 159.375 MHz | LVDS | 2.5V | ±20ppm |
| 535FB212M500DG | Skyworks有源晶振 | XTAL OSC XO 212.5000MHZ LVDS SMD | Si535 | 212.5 MHz | LVDS | 2.5V | ±20ppm |
| 535FB312M500DG | Skyworks有源晶振 | XTAL OSC XO 312.5000MHZ LVDS SMD | Si535 | 312.5 MHz | LVDS | 2.5V | ±20ppm |
