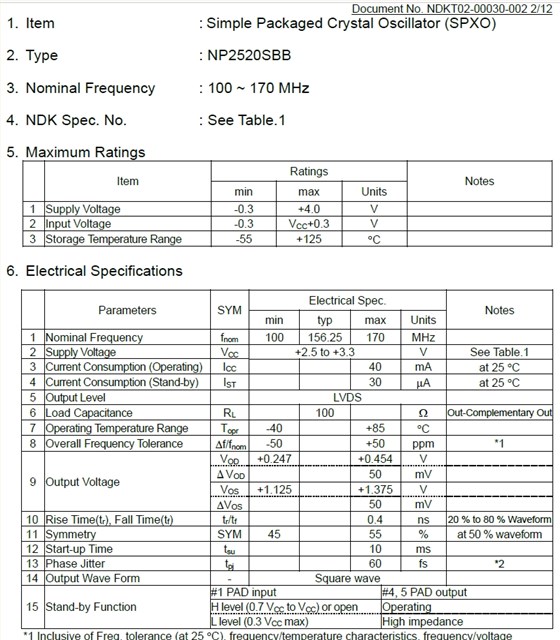

NDK差分振荡器,NP2520SB交换机晶振,NP2520SB-156.25MHZ-NSC5301A参数表
| Parameters | SYM | Electrical Spec. | Notes | ||||||||||||||||||||
| min | typ | max | Units | ||||||||||||||||||||
| 1 | Nominal Frequency | fnom | 156.25 | MHz | |||||||||||||||||||
| 2 | Supply Voltage | VCC | +2.5 to +3.3 | V | See Table.1 | ||||||||||||||||||
| 3 | Current Consumption (Operating) | ICC | 40 | mA | at 25。C | ||||||||||||||||||
| 4 | Current Consumption (Stand-by) | IST | 30 | μA | at 25。C | ||||||||||||||||||
| 5 | Output Level | LVDS | |||||||||||||||||||||
| 6 | Load Capacitance | RL | 100 | Ω | Out-Complementary Out | ||||||||||||||||||
| 7 | Operating Temperature Range | Topr | -40 | +85 | 。C | ||||||||||||||||||
| 8 | Overall Frequency Tolerance | Δf/fnom | -50 | +50 | ppm | *1 | |||||||||||||||||
| 9 | Output Voltage | VOD | +0.247 | +0.454 | V | ||||||||||||||||||
| ΔVOD | 50 | mV | |||||||||||||||||||||
| VOS | +1.125 | +1.375 | V | ||||||||||||||||||||
| ΔVOS | 50 | mV | |||||||||||||||||||||
| 10 | Rise Time(tr), Fall Time(tf) | tr/tf | 0.4 | ns | 20 % to 80 % Waveform | ||||||||||||||||||
| 11 | Symmetry | SYM | 45 | 55 | % | at 50 % waveform | |||||||||||||||||
| 12 | Start-up Time | tsu | 10 | ms | |||||||||||||||||||
| 13 | Phase Jitter | tpj | 100 | fs | *2 | ||||||||||||||||||
| 14 | Output Wave Form | - | Square wave | ||||||||||||||||||||
| 15 | Stand-by Function | #1 PAD input | #4, 5 PAD output | ||||||||||||||||||||
| H level (0.7 VCCto VCC) or open | Operating | ||||||||||||||||||||||
| L level (0.3 VCCmax) | High impedance | ||||||||||||||||||||||
NDK差分振荡器,NP2520SB交换机晶振,NP2520SB-156.25MHZ-NSC5301A 尺寸图
NDK差分振荡器,NP2520SB交换机晶振,NP2520SB-156.25MHZ-NSC5301A
产品特性：
差分输出SPXO有源晶振
紧凑尺寸：2.5×2.0×0.8mm
电源电压：+2.5V或+3.3V
输出规格：LVDS
出色的低电压（最大100 fs@156.25MHz）
无铅。
| Model | Nominal frequency[MHz] | Specification number | 晶振厂家 | Package size(LxW)[mm] | Output specification | Operating temperature rang[℃] |
| 2725Z | 40MHZ | NSA6297C | NDK LVDS晶振 | 5.0x3.2 | CMOS | -10~+70 |
| NP2520SA | 156.25MHZ | NSC5300A | NDK LVDS晶振 | 2.5x2.0 | LVPECL | -40~+85 |
| NP2520SA | 156.25MHZ | NSC5300B | NDK LVDS晶振 | 2.5x2.0 | LVPECL | -40~+85 |
| NP2520SB | 156.25MHZ | NSC5301A | NDK LVDS晶振 | 2.5x2.0 | LVDS | -40~+85 |
| NP2520SB | 156.25MHZ | NSC5301B | NDK LVDS晶振 | 2.5x2.0 | LVDS | -40~+85 |
| NP2520SAB | 156.25MHZ | NSC5326A | NDK LVDS晶振 | 2.5x2.0 | LVPECL | -40~+85 |
| NP2520SAB | 156.25MHZ | NSC5326B | NDK LVDS晶振 | 2.5x2.0 | LVPECL | -40~+85 |
| NP2520SBB | 156.25MHZ | NSC5327A | NDK LVDS晶振 | 2.5x2.0 | LVDS | -40~+85 |
| NP2520SBB | 156.25MHZ | NSC5327B | NDK LVDS晶振 | 2.5x2.0 | LVDS | -40~+85 |
| NP3225SA | 100MHZ | NSC5080A | NDK LVDS晶振 | 3.2x2.5 | LVPECL | -40~+85 |
| NP3225SA | 122.88MHZ | NSC5080A | NDK LVDS晶振 | 3.2x2.5 | LVPECL | -40~+85 |
| NP3225SA | 125MHZ | NSC5080A | NDK LVDS晶振 | 3.2x2.5 | LVPECL | -40~+85 |
| NP3225SA | 156.25MHZ | NSC5080A | NDK LVDS晶振 | 3.2x2.5 | LVPECL | -40~+85 |
| NP3225SA | 175MHZ | NSC5080A | NDK LVDS晶振 | 3.2x2.5 | LVPECL | -40~+85 |
| NP3225SA | 100MHZ | NSC5341B | NDK LVDS晶振 | 3.2x2.5 | LVPECL | -40~+85 |
| NP3225SA | 122.88MHZ | NSC5341B | NDK LVDS晶振 | 3.2x2.5 | LVPECL | -40~+85 |
| NP3225SA | 125MHZ | NSC5341B | NDK LVDS晶振 | 3.2x2.5 | LVPECL | -40~+85 |
| NP3225SA | 156.25MHZ | NSC5341B | NDK LVDS晶振 | 3.2x2.5 | LVPECL | -40~+85 |
| NP3225SA | 175MHZ | NSC5341B | NDK LVDS晶振 | 3.2x2.5 | LVPECL | -40~+85 |
| NP3225SA | 100MHZ | NSC5189A | NDK LVDS晶振 | 3.2x2.5 | LVPECL | -40~+105 |
| NP3225SA | 122.88MHZ | NSC5189A | NDK LVDS晶振 | 3.2x2.5 | LVPECL | -40~+105 |
| NP3225SA | 125MHZ | NSC5189A | NDK LVDS晶振 | 3.2x2.5 | LVPECL | -40~+105 |
| NP3225SA | 156.25MHZ | NSC5189A | NDK LVDS晶振 | 3.2x2.5 | LVPECL | -40~+105 |
| NP3225SA | 175MHZ | NSC5189A | NDK LVDS晶振 | 3.2x2.5 | LVPECL | -40~+105 |
| NP3225SA | 100MHZ | NSC5342B | NDK LVDS晶振 | 3.2x2.5 | LVPECL | -40~+105 |
| NP3225SA | 122.88MHZ | NSC5342B | NDK LVDS晶振 | 3.2x2.5 | LVPECL | -40~+105 |
| NP3225SA | 125MHZ | NSC5342B | NDK LVDS晶振 | 3.2x2.5 | LVPECL | -40~+105 |
| NP3225SA | 156.25MHZ | NSC5342B | NDK LVDS晶振 | 3.2x2.5 | LVPECL | -40~+105 |
| NP3225SA | 175MHZ | NSC5342B | NDK LVDS晶振 | 3.2x2.5 | LVPECL | -40~+105 |
| NP3225SA | 200MHZ | NSC5235A | NDK LVDS晶振 | 3.2x2.5 | LVPECL | -40~+85 |
| NP3225SA | 212.5MHZ | NSC5235A | NDK LVDS晶振 | 3.2x2.5 | LVPECL | -40~+85 |
| NP3225SA | 200MHZ | NSC5235B | NDK LVDS晶振 | 3.2x2.5 | LVPECL | -40~+85 |
| NP3225SA | 212.5MHZ | NSC5235B | NDK LVDS晶振 | 3.2x2.5 | LVPECL | -40~+85 |
| NP3225SA | 200MHZ | NSC5237A | NDK LVDS晶振 | 3.2x2.5 | LVPECL | -40~+105 |
| NP3225SA | 212.5MHZ | NSC5237A | NDK LVDS晶振 | 3.2x2.5 | LVPECL | -40~+105 |
| NP3225SA | 200MHZ | NSC5237B | NDK LVDS晶振 | 3.2x2.5 | LVPECL | -40~+105 |
| NP3225SA | 212.5MHZ | NSC5237B | NDK LVDS晶振 | 3.2x2.5 | LVPECL | -40~+105 |
| NP3225SB | 50MHZ | NSC5343A | NDK LVDS晶振 | 3.2x2.5 | LVDS | -40~+85 |
| NP3225SB | 100MHZ | NSC5343A | NDK LVDS晶振 | 3.2x2.5 | LVDS | -40~+85 |
| NP3225SB | 125MHZ | NSC5343A | NDK LVDS晶振 | 3.2x2.5 | LVDS | -40~+85 |
| NP3225SB | 135MHZ | NSC5343A | NDK LVDS晶振 | 3.2x2.5 | LVDS | -40~+85 |
| NP3225SB | 148MHZ | NSC5343A | NDK LVDS晶振 | 3.2x2.5 | LVDS | -40~+85 |
| NP3225SB | 156.25MHZ | NSC5343A | NDK LVDS晶振 | 3.2x2.5 | LVDS | -40~+85 |
| NP3225SB | 200MHZ | NSC5236A | NDK LVDS晶振 | 3.2x2.5 | LVDS | -40~+85 |
| NP3225SB | 50MHZ | NSC5343B | NDK LVDS晶振 | 3.2x2.5 | LVDS | -40~+85 |
| NP3225SB | 100MHZ | NSC5343B | NDK LVDS晶振 | 3.2x2.5 | LVDS | -40~+85 |
| NP3225SB | 125MHZ | NSC5343B | NDK LVDS晶振 | 3.2x2.5 | LVDS | -40~+85 |
| NP3225SB | 135MHZ | NSC5343B | NDK LVDS晶振 | 3.2x2.5 | LVDS | -40~+85 |
| NP3225SB | 148MHZ | NSC5343B | NDK LVDS晶振 | 3.2x2.5 | LVDS | -40~+85 |
| NP3225SB | 156.25MHZ | NSC5343B | NDK LVDS晶振 | 3.2x2.5 | LVDS | -40~+85 |
| NP3225SB | 200MHZ | NSC5236B | NDK LVDS晶振 | 3.2x2.5 | LVDS | -40~+85 |
| NP3225SB | 50MHZ | NSC5344A | NDK LVDS晶振 | 3.2x2.5 | LVDS | -40~+105 |
| NP3225SB | 100MHZ | NSC5344A | NDK LVDS晶振 | 3.2x2.5 | LVDS | -40~+105 |
| NP3225SB | 125MHZ | NSC5344A | NDK LVDS晶振 | 3.2x2.5 | LVDS | -40~+105 |
| NP3225SB | 135MHZ | NSC5344A | NDK LVDS晶振 | 3.2x2.5 | LVDS | -40~+105 |
| NP3225SB | 148MHZ | NSC5344A | NDK LVDS晶振 | 3.2x2.5 | LVDS | -40~+105 |
| NP3225SB | 156.25MHZ | NSC5344A | NDK LVDS晶振 | 3.2x2.5 | LVDS | -40~+105 |
| NP3225SB | 200MHZ | NSC5238A | NDK LVDS晶振 | 3.2x2.5 | LVDS | -40~+105 |
| NP3225SB | 50MHZ | NSC5344B | NDK LVDS晶振 | 3.2x2.5 | LVDS | -40~+105 |
| NP3225SB | 100MHZ | NSC5344B | NDK LVDS晶振 | 3.2x2.5 | LVDS | -40~+105 |
| NP3225SB | 125MHZ | NSC5344B | NDK LVDS晶振 | 3.2x2.5 | LVDS | -40~+105 |
| NP3225SB | 135MHZ | NSC5344B | NDK LVDS晶振 | 3.2x2.5 | LVDS | -40~+105 |
| NP3225SB | 148MHZ | NSC5344B | NDK LVDS晶振 | 3.2x2.5 | LVDS | -40~+105 |
| NP3225SB | 156.25MHZ | NSC5344B | NDK LVDS晶振 | 3.2x2.5 | LVDS | -40~+105 |
| NP3225SB | 200MHZ | NSC5238B | NDK LVDS晶振 | 3.2x2.5 | LVDS | -40~+105 |
| NP3225SC | 100MHZ | NSC5082A | NDK LVDS晶振 | 3.2x2.5 | HCSL | -40~+85 |
| NP3225SC | 156.25MHZ | NSC5082A | NDK LVDS晶振 | 3.2x2.5 | HCSL | -40~+85 |
| NP3225SC | 100MHZ | NSC5345B | NDK LVDS晶振 | 3.2x2.5 | HCSL | -40~+85 |
| NP3225SC | 156.25MHZ | NSC5345B | NDK LVDS晶振 | 3.2x2.5 | HCSL | -40~+85 |
| NP3225SC | 100MHZ | NSC5191A | NDK LVDS晶振 | 3.2x2.5 | HCSL | -40~+105 |
| NP3225SC | 156.25MHZ | NSC5191A | NDK LVDS晶振 | 3.2x2.5 | HCSL | -40~+105 |
| NP3225SC | 100MHZ | NSC5346B | NDK低抖动振荡器 | 3.2x2.5 | HCSL | -40~+105 |
| NP3225SC | 156.25MHZ | NSC5346B | NDK低抖动振荡器 | 3.2x2.5 | HCSL | -40~+105 |
| NP3225SAB | 100MHZ | NSC5186A | NDK低抖动振荡器 | 3.2x2.5 | LVPECL | -40~+85 |
| NP3225SAB | 125MHZ | NSC5186A | NDK低抖动振荡器 | 3.2x2.5 | LVPECL | -40~+85 |
| NP3225SAB | 156.25MHZ | NSC5186A | NDK低抖动振荡器 | 3.2x2.5 | LVPECL | -40~+85 |
| NP3225SAB | 100MHZ | NSC5186B | 日本电波晶体 | 3.2x2.5 | LVPECL | -40~+85 |
| NP3225SAB | 125MHZ | NSC5186B | NDK低抖动振荡器 | 3.2x2.5 | LVPECL | -40~+85 |
| NP3225SAB | 156.25MHZ | NSC5186B | NDK低抖动振荡器 | 3.2x2.5 | LVPECL | -40~+85 |
| NP3225SBB | 100MHZ | NSC5187A | NDK低抖动振荡器 | 3.2x2.5 | LVDS | -40~+85 |
| NP3225SBB | 125MHZ | NSC5187A | NDK低抖动振荡器 | 3.2x2.5 | LVDS | -40~+85 |
