Si514低相位晶振,6G无线晶振,514BAC000163BAGR,思佳讯差分振荡器

Si514低相位晶振,6G无线晶振,514BAC000163BAGR,思佳讯差分振荡器Si514低相位晶振,6G无线晶振,514BAC000163BAGR,思佳讯差分振荡器

产品简介

Si514低相位晶振,6G无线晶振,514BAC000163BAGR,思佳讯差分振荡器，尺寸5.0x3.2mm，频率20MHZ，电压3.3V，输出逻辑LVDS，5032差分晶体振荡器，差分晶振LVDS，XO时钟振荡器，LVDS差分晶体振荡器，差分贴片晶振，六脚差分晶振，20MHZ差分晶振，差分石英晶体振荡器，OSC差分石英晶振，有源差分晶振，低抖动差分晶振，低相位差分晶振，低相噪差分晶振，低电压差分振荡器，低功耗差分晶振，6G无线分晶振，小型设备差分振荡器，6G模块差分晶振，光通讯差分信号输出LVDS，具有低抖动低相噪的特点。

Si514用户可编程I2C XO晶体振荡器采用Skyworks Solutions的高级PLL通过编程提供从100 kHz到250 MHz的任何频率的技术分辨率为十亿分之0.026。Si514使用单个集成晶体Skyworks Solutions专有的DSPLL合成器，可生成任何频率集使用简单的I2C命令在这个范围内。超精细调谐分辨率取代DAC和VCXO有源晶振采用全数字PLL解决方案，可在以下情况下提高性能同步是必要的，或者在自由运行的参考时钟应用程序中。这该解决方案提供卓越的电源噪声抑制，简化了低抖动时钟在嘈杂的环境中生成。Crystal ESR和DLD分别为生产测试，以保证性能和提高可靠性。Si514低相位晶振,6G无线晶振,514BAC000163BAGR,思佳讯差分振荡器.

产品详情

TC-1

Si514低相位晶振,6G无线晶振,514BAC000163BAGR,思佳讯差分振荡器，尺寸5.0x3.2mm，频率20MHZ，电压3.3V，输出逻辑LVDS，5032差分晶体振荡器，差分晶振LVDS，XO时钟振荡器，LVDS差分晶体振荡器，差分贴片晶振，六脚差分晶振，20MHZ差分晶振，差分石英晶体振荡器，OSC差分石英晶振，有源差分晶振，低抖动差分晶振，低相位差分晶振，低相噪差分晶振，低电压差分振荡器，低功耗差分晶振，6G无线分晶振，小型设备差分振荡器，6G模块差分晶振，光通讯差分信号输出LVDS，具有低抖动低相噪的特点。

Si514用户可编程I2C XO晶体振荡器采用Skyworks Solutions的高级PLL通过编程提供从100 kHz到250 MHz的任何频率的技术分辨率为十亿分之0.026。Si514使用单个集成晶体Skyworks Solutions专有的DSPLL合成器，可生成任何频率集使用简单的I2C命令在这个范围内。超精细调谐分辨率取代DAC和VCXO有源晶振采用全数字PLL解决方案，可在以下情况下提高性能同步是必要的，或者在自由运行的参考时钟应用程序中。这该解决方案提供卓越的电源噪声抑制，简化了低抖动时钟在嘈杂的环境中生成。Crystal ESR和DLD分别为生产测试，以保证性能和提高可靠性。Si514低相位晶振,6G无线晶振,514BAC000163BAGR,思佳讯差分振荡器.

TC-2

Si514低相位晶振,6G无线晶振,514BAC000163BAGR,思佳讯差分振荡器参数图

Parameter Symbol Test Condition Min Typ Max Units
Supply Voltage VDD 3.3 V option 2.97 3.3 3.63 V
2.5 V option 2.25 2.5 2.75 V
1.8 V option 1.71 1.8 1.89 V
Supply Current IDD CMOS, 100 MHz,
single-ended 		— 21 26 mA
LVDS
(output enabled) 		— 19 23 mA
LVPECL
(output enabled) 		— 39 43 mA
HCSL
(output enabled) 		— 41 44 mA
Tristate
(output disabled) 		— — 18 mA
Operating Temperature TA –40 — 85 oC
Parameter Symbol Test Condition Min Typ Max Units
SDA, SCL Input Voltage High VIH 0.80 x VDD — — V
SDA, SCL Input Voltage Low VIL — — 0.20 x VDD V
Parameter Symbol Test Condition Min Typ Max Units
Programmable
Frequency Range 		FO CMOS, Dual CMOS 0.1 — 212.5 MHz
FO LVDS/LVPECL/HCSL 0.1 — 250 MHz
Frequency
Reprogramming
Resolution 		MRES — 0.026 — ppb
Frequency Range for
Small Frequency Change
(Continuous Glitchless
Output) 		From center frequency –1000 — +1000 ppm
Settling time for Small
Frequency Change 		<±1000 ppm from
center frequency 		— — 100 µs
Settling time for Large
Frequency Change (Out-
put Squelched during Fre-
quency Transition) 		>±1000 ppm from
center frequency 		— — 10 ms
Total Stability* Frequency Stability Grade C –30 — +30 ppm
Frequency Stability Grade B –50 — +50 ppm
Frequency Stability Grade A –100 — +100 ppm
Temperature Stability Frequency Stability Grade C –20 — +20 ppm
Frequency Stability Grade B –25 — +25 ppm
Frequency Stability Grade A –50 — +50 ppm
Startup Time TSU Minimum VDDuntil output
frequency (FO) within specification 		— — 10 ms
Disable Time TD FO< 10 MHz — — 40 µs
FO>10 MHz — — 5 µs
Enable Time TE FO< 10 MHz — — 60 µs
FO>10 MHz — — 20 µs
TC-3Si514低相位晶振,6G无线晶振,514BAC000163BAGR,思佳讯差分振荡器尺寸图

Si514 5032

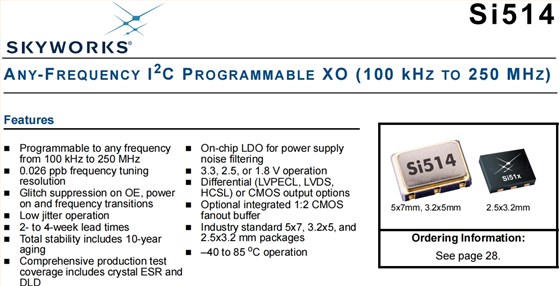

差分晶振产品特性：

可编程到任何频率从100kHz到250MHz

0.026ppb频率调谐决议

OE、电源故障抑制接通和频率转换

低抖动操作

2至4周交付周期

总体稳定性包括10年变老

综合生产试验

覆盖范围包括晶体ESR和DLD

用于电源的片上LDO噪声滤波

3.3、2.5或1.8 V操作

差分（LVPECL、LVDS、HCSL）或CMOS输出选项

可选集成1:2 CMOS扇出缓存

行业标准5x7、3.2x5和2.5x3.2mm包装

–40至85℃操作Si514 1Si514 2
