CR-153.600MBE-T,153.6MHz,5032mm,VCXO,TXC低相位噪声晶振，台湾TXC晶振，晶技晶振，型号：CR系列晶振，编码为：CR-153.600MBE-T，频率：153.600MHz，频率稳定性：±50ppm，工作温度范围：-40℃至+85℃，小体积晶振尺寸：5.0x3.2x1.2mm封装，六脚贴片晶振，VCXO压控晶振，压控晶体振荡器，5032晶振，石英晶振，有源晶振，SMD晶振，石英晶体振荡器。具有超小型晶振，轻薄型晶振，低抖动晶振，低功耗晶振，低相位噪声晶振，低电源电压晶振，低损耗晶振，低耗能等特点。应用于：SDH/SONET、以太网晶振、基站晶振，通讯晶振，导航晶振，GPS定位，汽车电子等应用。
CR-153.600MBE-T,153.6MHz,5032mm,VCXO,TXC低相位噪声晶振,产品特点：
压控晶体振荡器（VCXO）
CMOS输出，输出频率为50MHz至200MHz
拉程宽，线性好，晶体振荡器
出色的低相位噪声和抖动
提供三态功能
符合RoHS标准/无铅
CR-153.600MBE-T,153.6MHz,5032mm,VCXO,TXC低相位噪声晶振,参数表
Output Type
CMOS
Output Load
15 pF , or specify
Oscillation Mode
Fundamental
Supply Voltage (VDD)
3 .3 V
Frequency Range
153.600 MHz
Operating Temperature Range
- 10 ~ + 70℃, - 40 ~ + 85℃, or specify
Storage Temperature Range
- 55 ~ + 125℃
Voltage Vol ( Max. ) / Voh ( Min. )
0.1 VDD / 0.9 VDD
Rise ( Tr ) / Fall ( Tf ) Time
5 nS Max.
Supply Current
60 mA Max.
Symmetry
45 ~ 55 %
Start-up Time
10 mS Max.
Absolute Pulling Range ( APR ) *
±50 ppm Min. , or specify
Nominal Control Voltage
0.5 VDD
Control Voltage Range
0 ~ VDD
Linearity
10 % Max.
Phase Jitter ( 12 KHz ~ 20 MHz )
1 pS Max.

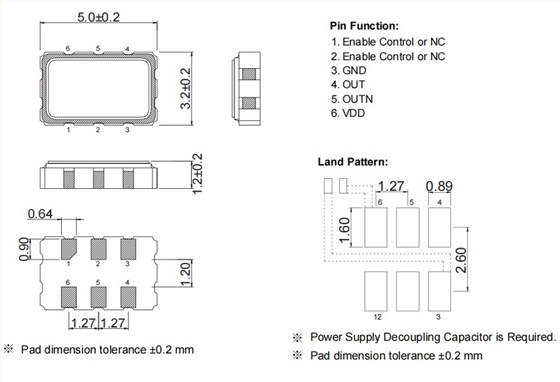

CR-153.600MBE-T,153.6MHz,5032mm,VCXO,TXC低相位噪声晶振,尺寸图
| 石英晶体振荡器 | 品牌 | 型号 | 频率 | 频率稳定度 | 工作温度 | 类型 |
| 6U-16.384MBE-T | TXC晶振 | 6U | 16.384MHz | ±50ppm | -40°C ~ 85°C | VCXO |
| 6U-32.768MBE-T | TXC晶振 | 6U | 32.768MHz | ±50ppm | -40°C ~ 85°C | VCXO |
| BR-61.4400MBE-T | TXC晶振 | BR | 61.44MHz | ±50ppm | -40°C ~ 85°C | VCXO |
| BJ-61.440MBE-T | TXC晶振 | BJ | 61.44MHz | ±50ppm | -40°C ~ 85°C | VCXO |
| BR-77.760MBE-T | TXC晶振 | BR | 77.76MHz | ±50ppm | -40°C ~ 85°C | VCXO |
| BR-122.880MBE-T | TXC晶振 | BR | 122.88MHz | ±50ppm | -40°C ~ 85°C | VCXO |
| BJ-122.880MBE-T | TXC晶振 | BJ | 122.88MHz | ±50ppm | -40°C ~ 85°C | VCXO |
| CR-122.880MBE-T | TXC晶振 | CR | 122.88MHz | ±50ppm | -40°C ~ 85°C | VCXO |
| BR-153.600MBE-T | TXC晶振 | BR | 153.6MHz | ±50ppm | -40°C ~ 85°C | VCXO |
| CJ-153.600MBE-T | TXC晶振 | CJ | 153.6MHz | ±50ppm | -40°C ~ 85°C | VCXO |
| BJ-156.250MBE-T | TXC晶振 | BJ | 156.25MHz | ±50ppm | -40°C ~ 85°C | VCXO |
| BJ-155.520MBE-T | TXC晶振 | BJ | 155.52MHz | ±50ppm | -40°C ~ 85°C | VCXO |
| 6U-27.000MBE-T | TXC晶振 | 6U | 27MHz | ±50ppm | -40°C ~ 85°C | VCXO |
| 6U-38.880MBE-T | TXC晶振 | 6U | 38.88MHz | ±50ppm | -40°C ~ 85°C | VCXO |
| 6U-10.000MBE-T | TXC晶振 | 6U | 10MHz | ±50ppm | -40°C ~ 85°C | VCXO |
| 6U-25.000MBE-T | TXC晶振 | 6U | 25MHz | ±50ppm | -40°C ~ 85°C | VCXO |
| 6U25070001 | TXC晶振 | 6U | 25MHz | ±50ppm | -40°C ~ 85°C | VCXO |
| 6U27000082 | TXC晶振 | 6U | 27MHz | ±50ppm | -10°C ~ 70°C | VCXO |
| 6U40930001 | TXC晶振 | 6U | 40.96MHz | ±50ppm | 0°C ~ 70°C | VCXO |
| 6U52002001 | TXC晶振 | 6U | 52MHz | ±50ppm | -40°C ~ 85°C | VCXO |
| 6U-27.000MCE-T | TXC晶振 | 6U | 27MHz | ±50ppm | -40°C ~ 85°C | VCXO |
| 6U-38.880MCE-T | TXC晶振 | 6U | 38.88MHz | ±50ppm | -40°C ~ 85°C | VCXO |
| 6U-40.960MBE-T | TXC晶振 | 6U | 40.96MHz | ±50ppm | -40°C ~ 85°C | VCXO |
| 6U-40.960MCE-T | TXC晶振 | 6U | 40.96MHz | ±50ppm | -40°C ~ 85°C | VCXO |
| 6U-52.000MBE-T | TXC晶振 | 6U | 52MHz | ±50ppm | -40°C ~ 85°C | VCXO |
| 6U-52.000MCE-T | 台产晶振 | 6U | 52MHz | ±50ppm | -40°C ~ 85°C | VCXO |
| BR-61.440MCE-T | TXC晶振 | BR | 61.44MHz | ±50ppm | -40°C ~ 85°C | VCXO |
| BJ-61.440MCE-T | TXC晶振 | BJ | 61.44MHz | ±50ppm | -40°C ~ 85°C | VCXO |
| CR-61.4400MBE-T | TXC晶振 | CR | 61.44MHz | ±50ppm | -40°C ~ 85°C | VCXO |
| CJ-61.440MBE-T | TXC晶振 | CJ | 61.44MHz | ±50ppm | -40°C ~ 85°C | VCXO |
| BJ-77.760MBE-T | TXC晶振 | BJ | 77.76MHz | ±50ppm | -40°C ~ 85°C | VCXO |
| BR-77.760MCE-T | TXC晶振 | BR | 77.76MHz | ±50ppm | -40°C ~ 85°C | VCXO |
| BJ-77.760MCE-T | TXC晶振 | BJ | 77.76MHz | ±50ppm | -40°C ~ 85°C | VCXO |
| BR-122.880MCE-T | TXC晶振 | BR | 122.88MHz | ±50ppm | -40°C ~ 85°C | VCXO |
| BJ-122.880MCE-T | TXC晶振 | BJ | 122.88MHz | ±50ppm | -40°C ~ 85°C | VCXO |
| CJ-122.880MBE-T | TXC晶振 | CJ | 122.88MHz | ±50ppm | -40°C ~ 85°C | VCXO |
| BJA5670001 | TXC晶振 | BJ | 156.25MHz | ±50ppm | -40°C ~ 85°C | VCXO |
| CR-153.600MBE-T | TXC晶振 | CR | 153.6MHz | ±50ppm | -40°C ~ 85°C | VCXO |
| BJA2500001 | TXC晶振 | BJ | 125MHz | ±20ppm | -40°C ~ 85°C | VCXO |
| BRA2500003 | TXC晶振 | BR | 125MHz | ±50ppm | 0°C ~ 70°C | VCXO |
| BJ-155.520MCE-T | TXC晶振 | BJ | 155.52MHz | ±50ppm | -40°C ~ 85°C | VCXO |
| BJ-156.250MCE-T | TXC晶振 | BJ | 156.25MHz | ±50ppm | -40°C ~ 85°C | VCXO |
| BJ-161.1328MBE-T | TXC晶振 | BJ | 161.1328MHz | ±50ppm | -40°C ~ 85°C | VCXO |
| BJ-166.6286MBE-T | TXC晶振 | BJ | 166.6286MHz | ±50ppm | -40°C ~ 85°C | VCXO |
| BJ-187.500MBE-T | TXC晶振 | BJ | 187.5MHz | ±50ppm | -40°C ~ 85°C | VCXO |
| BJ-161.1328MCE-T | TXC晶振 | BJ | 161.1328MHz | ±50ppm | -40°C ~ 85°C | VCXO |
| BJ-166.6286MCE-T | TXC晶振 | BJ | 166.6286MHz | ±50ppm | -40°C ~ 85°C | VCXO |
| BJ-187.500MCE-T | TXC晶振 | BJ | 187.5MHz | ±50ppm | -40°C ~ 85°C | VCXO |
| BK-622.080MBE-T | TXC晶振 | BK | 622.08MHz | ±50ppm | -40°C ~ 85°C | VCXO |
| BK-669.32658MBE-T | TXC晶振 | BK | 669.32658MHz | ±50ppm | -40°C ~ 85°C | VCXO |
| BK-622.080MCE-T | TXC晶振 | BK | 622.08MHz | ±50ppm | -40°C ~ 85°C | VCXO |
| BK-669.32658MCE-T | TXC晶振 | BK | 669.32658MHz | ±50ppm | -40°C ~ 85°C | VCXO |
