CSM-8Q,ECS-240-18-20BQ-DS,24MHz,7050mm,ECS石英晶体，美国进口晶振，ECS晶振，伊西斯晶振，型号：CSM-8Q系列晶振，编码为：ECS-240-18-20BQ-DS，频率：24MHz，负载电容：18pF，频率稳定性：±100ppm，工作温度范围：-40℃至+125℃，耐高温晶振，小体积晶振尺寸：7.0x5.0x1.3mm，四脚贴片晶振，SMD石英晶体，石英晶振，无源晶振，石英晶体谐振器，无铅晶振。具有超小型，轻薄型，高可靠性，高品质，耐热及耐环境等特点。7050晶振，符合AEC-Q200合格。应用于：通讯设备晶振，汽车电子晶振，无线蓝牙晶振，汽车雷达晶振，平板电脑晶振，数码电子等应用。
CSM-8Q,ECS-240-18-20BQ-DS,24MHz,7050mm,ECS石英晶体,参数表
PARAMETERS
CONDITIONS
CSM-8Q
UNITS
MIN
TYP
MAX
Frequency
24
MHz
Mode of Oscillation
Fundamental
Frequency Tolerance*
@ +25°C
± 30
ppm
Frequency Stability*
-55 ~ +125°C
(DU Option)
± 100
ppm
Shunt Capacitance
Co
7
pF
Load Capacitance
Specify in P/N
10
20
Series
pF
Drive Level
DL
100
μW
Operating Temperature*
Topr
(DU Option)
-55
+125
°C
Storage Temperature
Tstg
-55
+125
°C
Aging (First Year)
@ +25°C ±3°C
±5
ppm

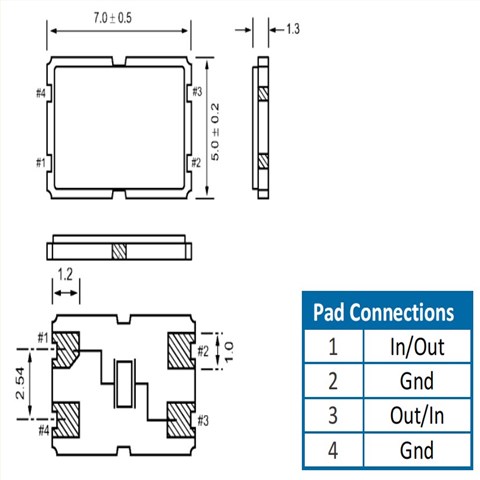

CSM-8Q,ECS-240-18-20BQ-DS,24MHz,7050mm,ECS石英晶体,尺寸图
| 原厂编码 | 晶振厂家 | 型号 | 频率 | 工作温度 |
| ECS-80-18-20BQ-DS | ECS伊西斯晶振 | CSM-8Q | 8MHz | -40°C ~ 125°C |
| ECS-240-18-20BQ-DS | ECS伊西斯晶振 | CSM-8Q | 24MHz | -40°C ~ 125°C |
| ECS-160-18-20BQ-DS | ECS伊西斯晶振 | CSM-8Q | 16MHz | -40°C ~ 125°C |
| ECS-120-18-20BQ-DS | ECS伊西斯晶振 | CSM-8Q | 12MHz | -40°C ~ 125°C |
| ECS-200-18-20BQ-DS | ECS伊西斯晶振 | CSM-8Q | 20MHz | -40°C ~ 125°C |
| ECS-250-18-20BQ-DS | ECS伊西斯晶振 | CSM-8Q | 25MHz | -40°C ~ 125°C |
| ECS-80-20-20A-TR | ECS伊西斯晶振 | CSM-8A | 8MHz | -10°C ~ 70°C |
| ECS-240-12-20A-TR | ECS伊西斯晶振 | CSM-8A | 24MHz | -10°C ~ 70°C |
| ECS-100-S-20A-TR | ECS伊西斯晶振 | CSM-8A | 10MHz | -10°C ~ 70°C |
| ECS-400-S-20A-TR | ECS伊西斯晶振 | CSM-8A | 40MHz | -10°C ~ 70°C |
| ECS-200-S-20A-TR | ECS伊西斯晶振 | CSM-8A | 20MHz | -10°C ~ 70°C |
| ECS-320-S-20A-F-TR | ECS伊西斯晶振 | CSM-8A | 32MHz | -10°C ~ 70°C |
| ECS-120-20-20A-TR | ECS伊西斯晶振 | CSM-8A | 12MHz | -10°C ~ 70°C |
| ECS-98.3-20-20A-TR | ECS伊西斯晶振 | CSM-8A | 9.8304MHz | -10°C ~ 70°C |
| ECS-110.5-S-20A-TR | ECS伊西斯晶振 | CSM-8A | 11.0592MHz | -10°C ~ 70°C |
| ECS-147.4-S-20A-TR | ECS伊西斯晶振 | CSM-8A | 14.7456MHz | -10°C ~ 70°C |
| ECS-184-S-20A-TR | ECS伊西斯晶振 | CSM-8A | 18.432MHz | -10°C ~ 70°C |
| ECS-200-20-20A-TR | ECS伊西斯晶振 | CSM-8A | 20MHz | -10°C ~ 70°C |
| ECS-240-S-20A-TR | ECS伊西斯晶振 | CSM-8A | 24MHz | -10°C ~ 70°C |
| ECS-240.0014S20A-TR | ECS伊西斯晶振 | CSM-8A | 24.00014MHz | -10°C ~ 70°C |
| ECS-360-S-20A-F-TR | ECS伊西斯晶振 | CSM-8A | 36MHz | -10°C ~ 70°C |
| ECS-400-S-20A-F-TR | 石英晶振 | CSM-8A | 40MHz | -10°C ~ 70°C |
| ECS-160-20-20A-TR | ECS伊西斯晶振 | CSM-8A | 16MHz | -10°C ~ 70°C |
| ECS-403.2-S-20A-TR | ECS伊西斯晶振 | CSM-8A | 40.32MHz | -10°C ~ 70°C |
| ECS-300-S-20A-F-TR | ECS伊西斯晶振 | CSM-8A | 30MHz | -10°C ~ 70°C |
| ECS-110.5-20-20A-TR | ECS伊西斯晶振 | CSM-8A | 11.0592MHz | -10°C ~ 70°C |
| ECS-120-S-20A-TR | ECS伊西斯晶振 | CSM-8A | 12MHz | -10°C ~ 70°C |
| ECS-320-S-20A-TR | ECS伊西斯晶振 | CSM-8A | 32MHz | -10°C ~ 70°C |
| ECS-160-S-20A-TR | ECS伊西斯晶振 | CSM-8A | 16MHz | -10°C ~ 70°C |
| ECS-240-20-20A-TR | ECS伊西斯晶振 | CSM-8A | 24MHz | -10°C ~ 70°C |
| ECS-143-S-20A-TR | ECS伊西斯晶振 | CSM-8A | 14.31818MHz | -10°C ~ 70°C |
| ECS-196.6-S-20A-TR | ECS伊西斯晶振 | CSM-8A | 19.6608MHz | -10°C ~ 70°C |
| ECS-300-S-20A-TR | ECS伊西斯晶振 | CSM-8A | 30MHz | -10°C ~ 70°C |
| ECS-480-20-20A-TR | ECS伊西斯晶振 | CSM-8A | 48MHz | -10°C ~ 70°C |
| ECS-330-S-20A-TR | ECS伊西斯晶振 | CSM-8A | 33MHz | -10°C ~ 70°C |
| ECS-122.8-20-20A-TR | ECS伊西斯晶振 | CSM-8A | 12.288MHz | -10°C ~ 70°C |
| ECS-360-S-20A-TR | ECS伊西斯晶振 | CSM-8A | 36MHz | -10°C ~ 70°C |
| ECS-143-20-20A-TR | ECS伊西斯晶振 | CSM-8A | 14.31818MHz | -10°C ~ 70°C |
| ECS-98.3-S-20A-TR | ECS伊西斯晶振 | CSM-8A | 9.8304MHz | -10°C ~ 70°C |
| ECS-110.5-18-20BQ-DS | ECS伊西斯晶振 | CSM-8Q | 11.0592MHz | -40°C ~ 125°C |
| ECS-100-18-20BQ-DS | ECS伊西斯晶振 | CSM-8Q | 10MHz | -40°C ~ 125°C |
| ECS-060-18-20BM-JEN-TR | ECS伊西斯晶振 | CSM-8M | 6MHz | -40°C ~ 85°C |
| ECS-073-18-20BM-JEN-TR | ECS伊西斯晶振 | CSM-8M | 7.3728MHz | -40°C ~ 85°C |
| ECS-080-18-20BM-JEN-TR | ECS伊西斯晶振 | CSM-8M | 8MHz | -40°C ~ 85°C |
| ECS-250-18-20BM-JEN-TR | ECS伊西斯晶振 | CSM-8M | 25MHz | -40°C ~ 85°C |
