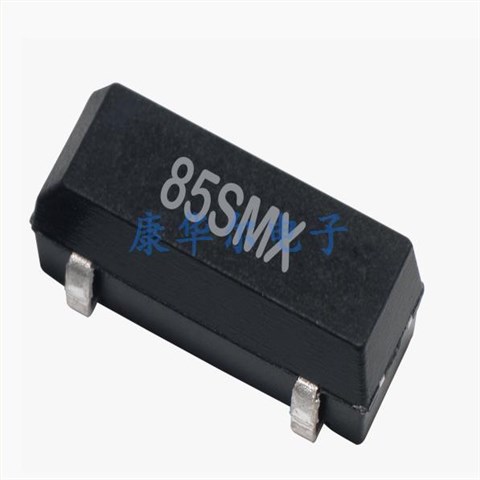

LFXTAL003000,IQD晶振,12.5pF,进口晶振,陶瓷晶振,陶瓷晶体谐振器,无源晶振,进口晶振,编码为LFXTAL003000的IQD晶振,型号为85SMX,频率为32.768KHz,精度偏差为±20ppm,负载为12.5pF,尺寸为8738mm,良好的耐热性使它能在-40°C至85°C的环境下给产品平稳且持续的工作,低损耗无源晶振,使得它能够满足各个领域的需求,适用于时钟晶振,5G无线设备晶振,智能手表晶振等各个领域
LFXTAL003000,IQD晶振,12.5pF,进口晶振
原厂编码
LFXTAL003000
频率
32.768KHz
厂家
IQD晶振
型号
85SMX
频率偏差
±20ppm
负载电容
12.5pF
工作温度
-40°C至85°C

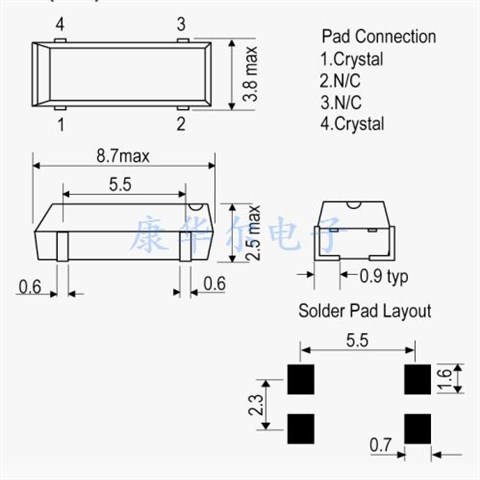

尺寸
8.7*3.8mm
LFXTAL003000,IQD晶振,12.5pF,进口晶振
| 编码 | 品牌 | 型号 | 频率 | 频率偏差 | 负载电容 |
| LFXTAL003000 | IQD 晶振 | 85SMX | 32.768 kHz | ±20ppm | 12.5pF |
| LFXTAL009678 | IQD 晶振 | CFPX-217 | 32.768 kHz | ±20ppm | 12.5pF |
| LFXTAL050789REEL | IQD 晶振 | IQXC-25 | 32.768 kHz | ±20ppm | 12.5pF |
| LFXTAL002995BULK | IQD 晶振 | WATCH | 32.768 kHz | ±20ppm | 12.5pF |
| LFXTAL002997BULK | IQD 晶振 | WATCH | 32.768 kHz | ±20ppm | 12.5pF |
| LFXTAL002996BULK | IQD 晶振 | WATCH | 32.768 kHz | ±15ppm | 12.5pF |
| LFXTAL025159REEL | IQD 晶振 | CFPX-56 | 32.768 kHz | ±20ppm | 12.5pF |
| LFXTAL014219BULK | IQD 晶振 | WATCH | 32.768 kHz | ±20ppm | 6pF |
| LFXTAL084885 | IQD 晶振 | IQXC-217 | 32.768 kHz | ±20ppm | 6pF |
| LFXTAL062558REEL | IQD 晶振 | IQXC-25 | 32.768 kHz | ±10ppm | 9pF |
| LFXTAL059461REEL | IQD 晶振 | IQXC-25 | 32.768 kHz | ±20ppm | 7pF |
| LFXTAL066198REEL | IQD 晶振 | IQXC-90 | 32.768 kHz | ±20ppm | 9pF |
| LFXTAL009709 | IQD 晶振 | CFPX-217 | 32.768 kHz | ±20ppm | 7pF |
| LFXTAL084882 | IQD 晶振 | IQXC-217 | 32.768 kHz | ±20ppm | 12.5pF |
| LFXTAL084884 | IQD 晶振 | IQXC-217 | 32.768 kHz | ±20ppm | 7pF |
| LFXTAL084883 | IQD 晶振 | IQXC-217 | 32.768 kHz | ±20ppm | 9pF |
| LFXTAL016178 | IQD 晶振 | 85SMX | 32.768 kHz | ±20ppm | 6pF |
| LFXTAL009706 | IQD 晶振 | CFPX-217 | 32.768 kHz | ±20ppm | 9pF |
| LFXTAL054236 | IQD 晶振 | CFPX-217 | 32.768 kHz | ±20ppm | 6pF |
| LFXTAL066834 | IQD 晶振 | CFPX-217 | 32.768 kHz | ±10ppm | 12.5pF |
| LFXTAL065253REEL | IQD 晶振 | IQXC-90 | 32.768 kHz | ±20ppm | 12.5pF |
| LFXTAL051643REEL | IQD 晶振 | IQXC-25 | 32.768 kHz | ±20ppm | 9pF |
| LFXTAL066431REEL | IQD 晶振 | IQXC-90 | 32.768 kHz | ±20ppm | 7pF |
| LFXTAL050632 | IQD 晶振 | 85SMX | 32.768 kHz | ±10ppm | 6pF |
| LFXTAL016178 | IQD 晶振 | 85SMX | 32.768 kHz | ±20ppm | 6pF |
| LFXTAL025159BULK | IQD 晶振 | CFPX-56 | 32.768 kHz | ±20ppm | 12.5pF |
| LFXTAL065455REEL | IQD 晶振 | IQXC-25 | 32.768 kHz | ±20ppm | 6pF |
| LFXTAL073264CUTT | IQD 晶振 | IQXC-25 | 32.768 kHz | ±20ppm | 4pF |
| LFXTAL003000 | IQD 晶振 | 85SMX | 32.768 kHz | ±20ppm | 12.5pF |
| LFXTAL003004BULK | IQD 晶振 | 90SMX | 32.768 kHz | ±20ppm | 12.5pF |
| LFXTAL015822BULK | IQD 晶振 | 90SMX | 32.768 kHz | ±20ppm | 6pF |
| LFXTAL003003BULK | IQD 晶振 | 91SMX | 32.768 kHz | ±20ppm | 12.5pF |
