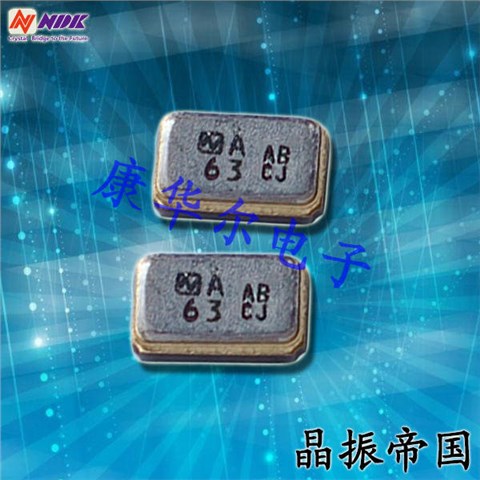

1610mm,NX1610SA-32.768KHz-STD-MUD-1,NDK通讯设备晶振，日本进口晶振，NDK晶振，型号：NX1610SA，编码为：NX1610SA-32.768KHz-STD-MUD-1，负载：12.5pF，频率：32.768KHz，精度：±20ppm，工作温度范围：-40℃至+85℃，小体积晶振尺寸：1.6x1.0x0.45mm，两脚贴片晶振，石英晶振，1610贴片晶振，无源晶振，石英晶体谐振器，具有超小型晶振，轻薄型晶振，高品质晶振，耐热及耐环境等特点。最适合应用于：移动设备晶振，通信晶振，消费类设备晶振，OA（办公自动化）和AV，（视听）应用程序，钟表电子晶振，可穿戴设备晶振等应用。

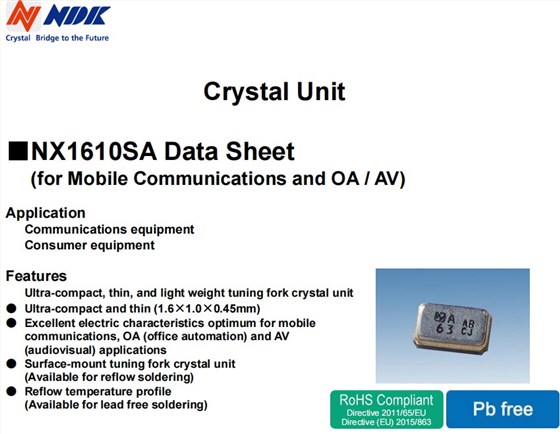

1610mm,NX1610SA-32.768KHz-STD-MUD-1,NDK通讯设备晶振,产品特点:
●超紧凑、轻薄的音叉晶体单元
●超薄型（1.6×1.0×0.45mm）
●卓越的电气特性，石英晶体谐振器
● 表面安装音叉晶体单元（可用于回流焊）
● 回流温度曲线（可用于无铅焊接）

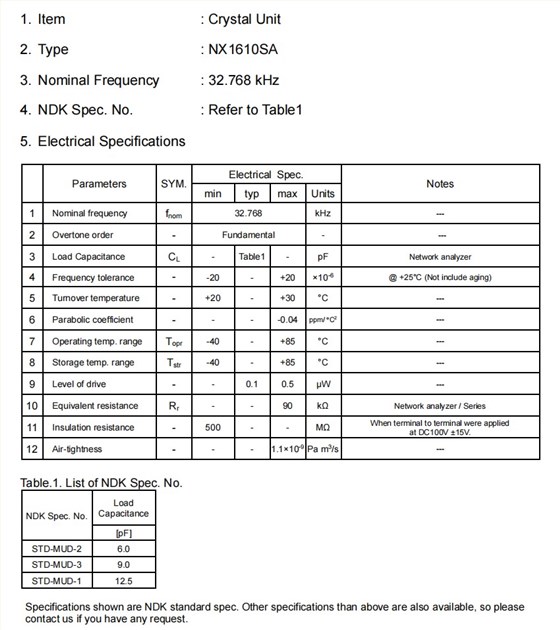

1610mm,NX1610SA-32.768KHz-STD-MUD-1,NDK通讯设备晶振,参数表
Item / Model
NX1610SA
Nominal Frequency
32.768kHz
Operating Temperature Range
−40 to +85°C
Storage Temperature Range
−40 to +85°C
Level of Drive
0.1µW(Max. 0.5µW)
Frequency Tolerance (25 ±3 °C)
±20 × 10−6
Turning Point
+25°C ± 5°C
Temperature Coefficient
Max. −0.04 × 10−6/°C2
Load Capacitance
6.0pF
9.0pF
12.5pF
Equivalent Series Resistance
Max. 90kΩ
Shunt Capacitance
Typ. 1.3pF/ Max. 1.6pF
Insulation Resistance
Min. 500MΩ
Specifications Number
STD-MUD-2
STD-MUD-3
STD-MUD-1

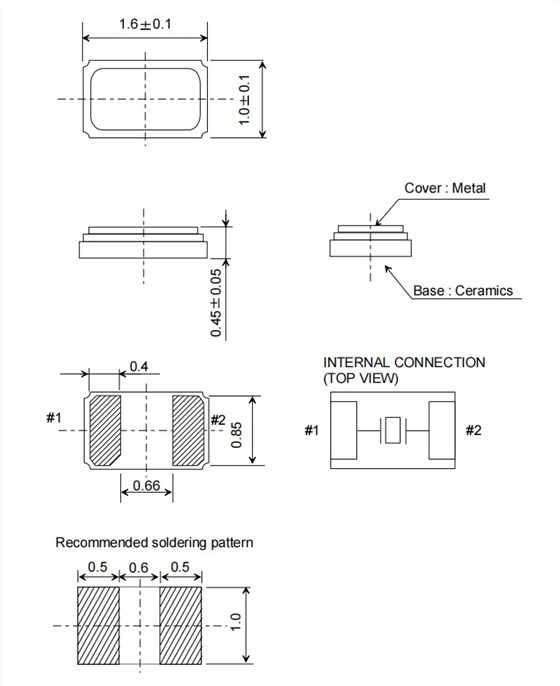

1610mm,NX1610SA-32.768KHz-STD-MUD-1,NDK通讯设备晶振,尺寸图
| 进口晶振 | 特征 | 频率 | 规格编号 | 包装尺寸长宽 | 包装尺寸高 | 工作温度范围 |
| NX1610SA | Standard | 32.768KHz | STD-MUD-1 | 1.6×1.0 | 0.45 | -40~+85 |
| NX1610SA | Standard | 32.768KHz | STD-MUD-2 | 1.6×1.0 | 0.45 | -40~+85 |
| NX1610SA | Standard | 32.768KHz | STD-MUD-3 | 1.6×1.0 | 0.45 | -40~+85 |
| NX1610SE | Low ESR | 32.768KHz | STD-MUD-4 | 1.6×1.0 | 0.45 | -40~+85 |
| NX1610SE | Low ESR | 32.768KHz | STD-MUD-5 | 1.6×1.0 | 0.45 | -40~+85 |
| NX1610SE | Low ESR | 32.768KHz | STD-MUD-6 | 1.6×1.0 | 0.45 | -40~+85 |
| NX2012SA | Standard | 32.768KHz | STD-MUB-1 | 2.0×1.2 | 0.55 | -40~+85 |
| NX2012SA | Standard | 32.768KHz | STD-MUB-2 | 2.0×1.2 | 0.55 | -40~+85 |
| NX2012SA | Standard | 32.768KHz | STD-MUB-3 | 2.0×1.2 | 0.55 | -40~+85 |
| NX2012SE | Low ESR | 32.768KHz | STD-MUB-8 | 2.0×1.2 | 0.55 | -40~+85 |
| NX2012SE | Low ESR | 32.768KHz | STD-MUB-9 | 2.0×1.2 | 0.55 | -40~+85 |
| NX2012SE | Low ESR | 32.768KHz | STD-MUB-10 | 2.0×1.2 | 0.55 | -40~+85 |
| NX2012SA | Standard (Automotive) | 32.768KHz | STD-MUT-1 | 2.0×1.2 | 0.55 | -40~+125 |
| NX2012SA | Standard (Automotive) | 32.768KHz | STD-MUT-2 | 2.0×1.2 | 0.55 | -40~+125 |
| NX2012SA | Standard (Automotive) | 32.768KHz | STD-MUT-3 | 2.0×1.2 | 0.55 | -40~+125 |
| NX2012SF | Specially controlled medical devices | 32.768KHz | STD-MUP-11 | 2.0×1.2 | 0.55 | -40~+125 |
| NX2012SF | Specially controlled medical devices | 32.768KHz | STD-MUP-12 | 2.0×1.2 | 0.55 | -40~+125 |
| NX2012SF | Specially controlled medical devices | 32.768KHz | STD-MUP-13 | 2.0×1.2 | 0.55 | -40~+125 |
| NX3215SA | Standard | 32.768KHz | STD-MUA-8 | 3.2×1.5 | 0.8 | -40~+85 |
| NX3215SA | Standard | 32.768KHz | STD-MUA-9 | 3.2×1.5 | 0.8 | -40~+85 |
| NX3215SA | Standard | 32.768KHz | STD-MUA-14 | 3.2×1.5 | 0.8 | -40~+85 |
| NX3215SE | Low ESR | 32.768KHz | STD-MUA-17 | 3.2×1.5 | 0.8 | -40~+85 |
| NX3215SE | Low ESR | 32.768KHz | STD-MUA-18 | 3.2×1.5 | 0.8 | -40~+85 |
| NX3215SE | Low ESR | 32.768KHz | STD-MUA-19 | 3.2×1.5 | 0.8 | -40~+85 |
| NX3215SA | Standard (Automotive) | 32.768KHz | STD-MUS-2 | 3.2×1.5 | 0.8 | -40~+125 |
| NX3215SA | Standard (Automotive) | 32.768KHz | STD-MUS-3 | 3.2×1.5 | 0.8 | -40~+125 |
| NX3215SA | Standard (Automotive) | 32.768KHz | STD-MUS-4 | 3.2×1.5 | 0.8 | -40~+125 |
| NX3215SD | 石英晶振 | 32.768KHz | STD-MUS-5 | 3.2×1.5 | 0.8 | -40~+125 |
| NX3215SD | Enhanced products of solder cracking resistance (A | 32.768KHz | STD-MUS-6 | 3.2×1.5 | 0.8 | -40~+125 |
| NX3215SD | Enhanced products of solder cracking resistance (A | 32.768KHz | STD-MUS-7 | 3.2×1.5 | 0.8 | -40~+125 |
| NX3215SF | Specially controlled medical devices | 32.768KHz | STD-MUP-1 | 3.2×1.5 | 0.8 | -40~+125 |
| NX3215SF | Specially controlled medical devices | 32.768KHz | STD-MUP-2 | 3.2×1.5 | 0.8 | -40~+125 |
| NX3215SF | Specially controlled medical devices | 32.768KHz | STD-MUP-3 | 3.2×1.5 | 0.8 | -40~+125 |
