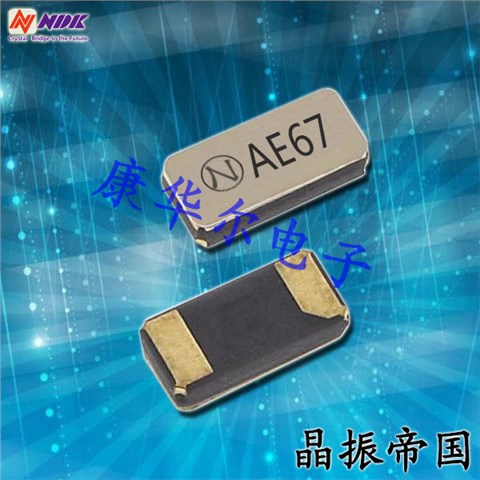

NDK晶振,NX3215SE-32.768K-STD-MUA-17,3215mm无源晶体，日本进口晶振，NDK晶振，编码为：NX3215SE-32.768K-STD-MUA-17，型号：NX3215SE，频率：32.768K时钟晶振，负载：12.5pF，精度：±20ppm，工作温度范围：-40℃至+85℃，小体积晶振尺寸：3.2x1.5x0.8mm，两脚贴片晶振，无源晶振，石英晶振，手表晶体，SMD晶振，石英晶体谐振器。具有超小型晶振，轻薄型晶振，高品质晶振，耐热及耐环境等特点。应用于：通信设备晶振，消费类设备晶振，OA（办公自动化）和AV（视听）应用程序，钟表电子晶振，可穿戴设备晶振等应用。
NDK晶振,NX3215SE-32.768K-STD-MUA-17,3215mm无源晶体,产品特点:
●低ESR音叉晶体单元（等效串联电阻）
● 适用于要求低ESR的微控制器（ESR：最大40kΩ）石英晶振
● 卓越的电气特性，最适合移动通信、OA（办公自动化）和AV（视听）应用
● 表面安装音叉晶体单元（可用于回流焊）
● 回流温度曲线（可用于无铅焊接）
NDK晶振,NX3215SE-32.768K-STD-MUA-17,3215mm无源晶体,参数表
ItemModel
NX3215SE
Nominal Frequency
32.768kHz
Operating Temperature Range
–40 to +85°C
Storage Temperature Range
–40 to +85°C
Level of Drive
0.1µW(Max. 0.5µW)
Frequency Tolerance (25 ±3 °C)
±20 × 10–6
Turning Point
+25°C ± 5°C
Temperature Coefficient
Max. –0.04 × 10–6/°C2
Load Capacitance
6.0pF
9.0pF
12.5pF
Equivalent Series Resistance
Max. 40kΩ(Typ. 20kΩ)
Shunt Capacitance
Typ. 1.3pF / Max. 1.6pF
Insulation Resistance
Min. 500MΩ
Specifications Number
STD-MUA-19
STD-MUA-18
STD-MUA-17
NDK晶振,NX3215SE-32.768K-STD-MUA-17,3215mm无源晶体,尺寸图
| 原厂编码 | 晶振厂家 | 型号 | 频率 | 频率稳定度 | 包装/封装 |
| NX3225GA-26.000M-STD-CRG-2 | NDK晶振 | NX3225GA | 26MHz | ±30ppm | 4-SMD, No Lead |
| NX5032GA-24.000000MHZ-LN-CD-1 | NDK晶振 | NX5032GA | 24MHz | ±50ppm | 2-SMD, No Lead |
| NX5032GA-27.000000MHZ-LN-CD-1 | NDK晶振 | NX5032GA | 27MHz | ±50ppm | 2-SMD, No Lead |
| NX5032GA-20.000000MHZ-LN-CD-1 | NDK晶振 | NX5032GA | 20MHz | ±50ppm | 2-SMD, No Lead |
| NX5032GA-32.000000MHZ-LN-CD-1 | NDK晶振 | NX5032GA | 32MHz | ±50ppm | 2-SMD, No Lead |
| NX3225GA-26MHZ-TI | NDK晶振 | NX3225GA | 26MHz | ±40ppm | 4-SMD, No Lead |
| NX3225GA-27.000M-STD-CRG-1 | NDK晶振 | NX3225GA | 27MHz | ±30ppm | 4-SMD, No Lead |
| NX3225SA-24.000MHZ-STD-CSR-1 | NDK晶振 | NX3225SA | 24MHz | ±15ppm | 4-SMD, No Lead |
| NX5032GA-27M-STD-CSK-4 | NDK晶振 | NX5032GA | 27MHz | ±30ppm | 2-SMD, No Lead |
| NX3225SA-32.000MHZ-STD-CSR-1 | NDK晶振 | NX3225SA | 32MHz | ±15ppm | 4-SMD, No Lead |
| NX3225SA-26.000MHZ-STD-CSR-1 | NDK晶振 | NX3225SA | 26MHz | ±15ppm | 4-SMD, No Lead |
| NX3225SA-20.000MHZ-STD-CSR-1 | NDK晶振 | NX3225SA | 20MHz | ±15ppm | 4-SMD, No Lead |
| NX3225SA-27.000MHZ-STD-CSR-1 | NDK晶振 | NX3225SA | 27MHz | ±15ppm | 4-SMD, No Lead |
| NX3225SA-32M-EXS00A-02994 | NDK晶振 | NX3225SA | 32MHz | ±15ppm | 4-SMD, No Lead |
| NX3225SA-20.000M-STD-CSR-3 | NDK晶振 | NX3225SA | 20MHz | ±15ppm | 4-SMD, No Lead |
| NX3225SA-26.000M-STD-CSQ-1 | NDK晶振 | NX3225SA | 26MHz | ±10ppm | 4-SMD, No Lead |
| NX3225SA-32MHZ-EXS00A-CS02368 | NDK晶振 | NX3225SA | 32MHz | ±16ppm | 4-SMD, No Lead |
| NX3225SA-27M-STD-CRS-2 | NDK晶振 | NX3225SA | 27MHz | ±50ppm | 4-SMD, No Lead |
| NX3225SA-26.000000MHZ-G4 | NDK晶振 | NX3225SA | 26MHz | ±10ppm | 4-SMD, No Lead |
| NX3225SA-26.000000MHZ-B1 | NDK晶振 | NX3225SA | 26MHz | ±10ppm | 4-SMD, No Lead |
| NX3225SA-26.000000MHZ-G2 | NDK晶振 | NX3225SA | 26MHz | ±11ppm | 4-SMD, No Lead |
| NX3225SA-26.000000MHZ-G3 | NDK晶振 | NX3225SA | 26MHz | ±10ppm | 4-SMD, No Lead |
| NX3215SA-32.768K-STD-MUA-8 | NDK晶振 | NX3215SA | 32.768kHz | ±20ppm | 2-SMD, No Lead |
| NX3215SA-32.768K-STD-MUA-9 | NDK晶振 | NX3215SA | 32.768kHz | ±20ppm | 2-SMD, No Lead |
| NX3215SA-32.768K-STD-MUA-14 | NDK晶振 | NX3215SA | 32.768kHz | ±20ppm | 2-SMD, No Lead |
| NX3215SA-32.768K-STD-MUS-2 | NDK晶振 | NX3215SA | 32.768kHz | ±20ppm | 2-SMD, No Lead |
| NX3225SA-20.000M-STD-CRS-2 | NDK晶振 | NX3225SA | 20MHz | ±50ppm | 4-SMD, No Lead |
| NX8045GB-20.000000MHZ | NDK晶振 | NX8045GB | 20MHz | ±50ppm | 2-SMD, No Lead |
| NX8045GB-27.000000MHZ | 进口晶振 | NX8045GB | 27MHz | ±50ppm | 2-SMD, No Lead |
| NX5032GA-20.000M-STD-CSU-2 | NDK晶振 | NX5032GA | 20MHz | ±150ppm | 2-SMD, No Lead |
| NX3225GA-20.000M-STD-CRG-1 | NDK晶振 | NX3225GA | 20MHz | ±30ppm | 4-SMD, No Lead |
| NX3225GA-26.000M-STD-CRG-1 | NDK晶振 | NX3225GA | 26MHz | ±30ppm | 4-SMD, No Lead |
| NX3225GA-32M-EXS00A-CG02611 | NDK晶振 | NX3225GA | 32MHz | ±20ppm | 4-SMD, No Lead |
| NX3225GA-20.000M-STD-CRG-2 | NDK晶振 | NX3225GA | 20MHz | ±30ppm | 4-SMD, No Lead |
| NX3225GA-27M-STD-CRG-2 | NDK晶振 | NX3225GA | 27MHz | ±30ppm | 4-SMD, No Lead |
| NX5032GA-20.000M-STD-CSK-4 | NDK晶振 | NX5032GA | 20MHz | ±30ppm | 2-SMD, No Lead |
| NX2520SA-24.000000MHZ | NDK晶振 | NX2520SA | 24MHz | ±10ppm | 4-SMD, No Lead |
| NX3225SA-26.000M-STD-CSR-3 | NDK晶振 | NX3225SA | 26MHz | ±15ppm | 4-SMD, No Lead |
| NX2520SA-24.000000MHZ-B8 | NDK晶振 | NX2520SA | 24MHz | ±10ppm | 4-SMD, No Lead |
| NX2016SA-26M-STD-CZS-2 | NDK晶振 | NX2016SA | 26MHz | ±25ppm | 4-SMD, No Lead |
| NX2016SA-26M-STD-CZS-1 | NDK晶振 | NX2016SA | 26MHz | ±15ppm | 4-SMD, No Lead |
| NX2012SA-32.768K-STD-MUB-1 | NDK晶振 | NX2012SA | 32.768kHz | ±20ppm | 2-SMD, No Lead |
| NX3225SA-20.000000MHZ-B2 | NDK晶振 | NX3225SA | 20MHz | ±15ppm | 4-SMD, No Lead |
| NX3225GA-20MHZ-STD-CRA-1 | NDK晶振 | NX3225GA | 20MHz | ±150ppm | 4-SMD, No Lead |
| NX3225GB-20MHZ-STD-CRA-2 | NDK晶振 | NX3225GB | 20MHz | ±150ppm | 2-SMD, No Lead |
| NX2520SA-26MHZ-STD-CSX-1 | NDK晶振 | NX2520SA | 26MHz | ±10ppm | 4-SMD, No Lead |
| NX1612AA-26MHZ STD-CSI-3 | NDK晶振 | NX1612AA | 26MHz | ±25ppm | 4-SMD, No Lead |
| NX2520SA-26.000000MHZ | NDK晶振 | NX2520SA | 26MHz | ±10ppm | 4-SMD, No Lead |
| NX2520SA-20.000000MHZ | NDK晶振 | NX2520SA | 20MHz | ±10ppm | 4-SMD, No Lead |
| NX2520SA-32.000000MHZ | NDK晶振 | NX2520SA | 32MHz | ±10ppm | 4-SMD, No Lead |
| NX2520SD-24MHZ-EXS00A-CS06352 | NDK晶振 | NX2520SD | 24MHz | ±15ppm | 4-SMD, No Lead |
| NX2520SA-26.000000MHZ-B9 | NDK晶振 | NX2520SA | 26MHz | ±10ppm | 4-SMD, No Lead |
| NX8045GB-24.000000MHZ | NDK晶振 | NX8045GB | 24MHz | ±50ppm | 2-SMD, No Lead |
| NX2016SA-26MHZ-EXS00A-CS06025 | NDK晶振 | NX2016SA | 26MHz | ±20ppm | 4-SMD, No Lead |
| NX2016AB-26MHZ SB1 | NDK晶振 | NX2016AB | 26MHz | ±15ppm | 4-SMD, No Lead |
| NX1612SA-32.000MHZ-CHP-CIS-3 | NDK晶振 | NX1612SA | 32MHz | ±20ppm | 4-SMD, No Lead |
| NX1612AA-26MHZ-TI2 | NDK晶振 | NX1612AA | 26MHz | ±20ppm | 4-SMD, No Lead |
| NX1612AA-26MHZ STD-CSI-1 | NDK晶振 | NX1612AA | 26MHz | ±20ppm | 4-SMD, No Lead |
| NX8045GB-32.000000MHZ | NDK晶振 | NX8045GB | 32MHz | ±50ppm | 2-SMD, No Lead |
| NX3225SA-24.000M-STD-CSR-3 | NDK晶振 | NX3225SA | 24MHz | ±15ppm | 4-SMD, No Lead |
| NX5032GA-24.000M-STD-CSK-4 | NDK晶振 | NX5032GA | 24MHz | ±30ppm | 2-SMD, No Lead |
| NX8045GB-20.000M-STD-CSF-4 | NDK晶振 | NX8045GB | 20MHz | ±30ppm | 2-SMD, No Lead |
| NX8045GB-24.000M-STD-CSF-4 | NDK晶振 | NX8045GB | 24MHz | ±30ppm | 2-SMD, No Lead |
| NX2520SG-26M-STD-CTX-1 | NDK晶振 | NX2520SG | 26MHz | ±12ppm | 4-SMD, No Lead |
| NX1255GB-20.000000MHZ | NDK晶振 | NX1255GB | 20MHz | ±50ppm | 4-SMD, No Lead |
| NX1255GB-24.000000MHZ | NDK晶振 | NX1255GB | 24MHz | ±50ppm | 4-SMD, No Lead |
| NX5032SD-20MHZ-STD-CSY-1 | NDK晶振 | NX3225SC | 20MHz | ±50ppm | 4-SMD, No Lead |
| NX2520SA-26MHZ-EXS00A-CS05497 | NDK晶振 | NX2520SA | 26MHz | ±10ppm | 4-SMD, No Lead |
| NX2016AB-26MHZ ST1 | NDK晶振 | NX2016AB | 26MHz | ±20ppm | 4-SMD, No Lead |
| NX2016AB-32MHZ ST2 | NDK晶振 | NX2016AB | 32MHz | ±20ppm | 4-SMD, No Lead |
| NX2016AB-26MHZ SB2 | NDK晶振 | NX2016AB | 26MHz | ±15ppm | 4-SMD, No Lead |
| NX4025DA-32.000M-STD-CSV-1 | NDK晶振 | NX4025DA | 32MHz | ±10ppm | 4-SMD, No Lead |
| NX3215SE-32.768K-STD-MUA-19 | NDK晶振 | NX3215SE | 32.768kHz | ±20ppm | 2-SMD, No Lead |
| NX3215SE-32.768K-STD-MUA-17 | NDK晶振 | NX3215SE | 32.768kHz | ±20ppm | 2-SMD, No Lead |
| NX3215SE-32.768K-STD-MUA-18 | NDK晶振 | NX3215SE | 32.768kHz | ±20ppm | 2-SMD, No Lead |
