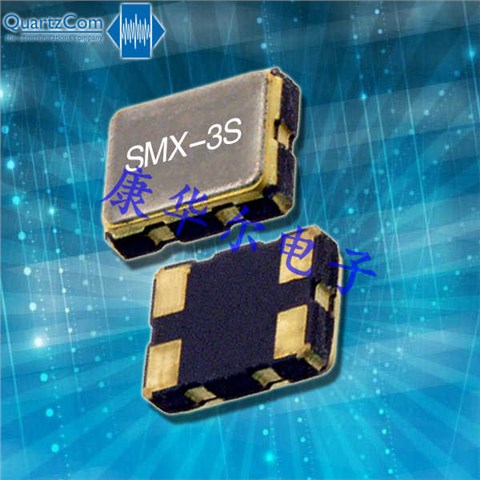

SMX-3S导航定位晶振,QuartzCom小尺寸晶振,5032石英谐振器

产品简介

SMX-3S导航定位晶振,QuartzCom小尺寸晶振,5032石英谐振器，尺寸5.0x3.2mm，频率范围8~240MHZ，瑞士石英通晶振，QuartzCom无源晶振，轻薄型晶振，绿色环保晶振，四脚贴片晶振，石英SMD晶振，SMD无源晶体，无源石英晶振，石英晶振Quartz Crystal，无源晶振，5032mm贴片晶振，高频晶振，导航定位专用晶振，电信应用晶振，汽车氛围灯晶振，医疗产品晶振，小型设备晶振，便携式设备晶振，视听设备晶振，蓝牙耳机晶振，高性能晶振，高质量晶振，低损耗晶振，低功耗晶振，低老化晶振，具有轻薄小低损耗的特点。

贴片石英晶体产品比较常用于导航定位，电信应用，汽车氛围灯，医疗产品，小型设备，便携式设备，视听设备，蓝牙耳机等领域。SMX-3S导航定位晶振,QuartzCom小尺寸晶振,5032石英谐振器.

产品详情

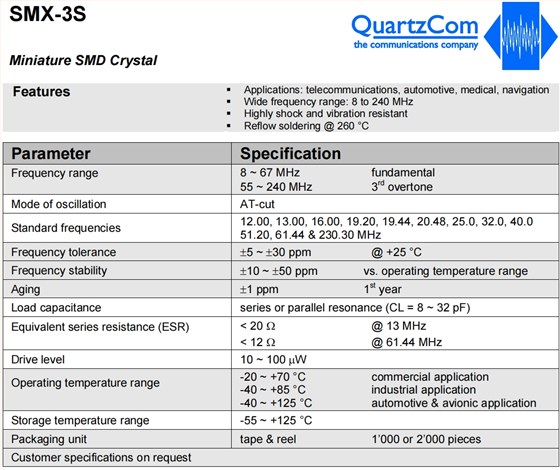

SMX-3S导航定位晶振,QuartzCom小尺寸晶振,5032石英谐振器参数表

Parameter	Specification
Frequency range	8 ~ 67 MHz 55 ~ 240 MHz	fundamental 3rdovertone
Mode of oscillation	AT-cut
Standard frequencies	12.00, 13.00, 16.00, 19.20, 19.44, 20.48, 25.0, 32.0, 40.0 51.20, 61.44 & 230.30 MHz
Frequency tolerance	土5 ~土30 ppm@ +25 °C
Frequency stability	土10 ~土50 ppmvs. operating temperature range
Aging	土1 ppm	1st	year
Load capacitance	series or parallel resonance (CL = 8 ~ 32 pF)
Equivalent series resistance (ESR)	< 20Ω@ 13 MHz < 12Ω@ 61.44 MHz
Drive level	10 ~ 100μW
Operating temperature range	-20 ~ +70 °C -40 ~ +85 °C -40 ~ +125 °C	commercial application industrial application automotive & avionic application
Storage temperature range	-55 ~ +125 °C
Packaging unit	tape & reel1’000 or 2’000 pieces
Customer specifications on request
