6G发射器晶振|QPM25A-2XDF12.5-60.000KHz|QVS陶瓷谐振器，尺寸8.0*3.8mm，频率60KHZ，欧美进口晶振，QVS进口晶体，四脚贴片晶振，无源晶体，音叉晶体，贴片晶振，无源SMD晶体，SMD晶体，小尺寸晶振，60KHZ晶体，无源音叉晶体，陶瓷晶振，无源谐振器，低功耗晶振，低损耗晶振，低成本晶体，无铅环保晶振，高质量晶振，高性能晶振，数码相机专用晶体，时计应用晶振，电话机专用晶振，6G发射器专用晶振，儿童游戏机晶振，娱乐设备晶振，数字视频专用晶振，具有低功耗高质量的特点，陶瓷晶振产品可满足不同应用程序的需求，尤其适合用于电话机，时计产品，数码相机，儿童游戏机，娱乐设备等领域。6G发射器晶振|QPM25A-2XDF12.5-60.000KHz|QVS陶瓷谐振器.
6G发射器晶振|QPM25A-2XDF12.5-60.000KHz|QVS陶瓷谐振器参数图
Frequency Range
60.000KHz
Frequency Tolerance (25 °C)
±50 ppm Standard (see Crystal Part Number Guide for more details)
Load Capacitance (CL)
12.5 pF Standard (see Crystal Part Number Guide for more details)
Shunt Capacitance (Co)
0.8 pFto 1.7pF, Typical
Motional Capacitance
0.001 pFto 0.004pF, Typical
Equivalent Series Resistance (E.S.R.)
50 kΩmax
Quality Factor
50000 min
Turnover Temperature
+25 °C ± 5 °C
Aging
First year : ± 5ppm max at +25°C
Drive Level
1.0μW max
Parabolic Curvature Constant
-0.034 ppm/ °C2, Typical
Reflow Soldering Condition
10 secondsmax at +260 °C
Shock
±5ppm max
Vibration
±5ppm max
Operating Temperature Range
-40 °C to +85 °C Standard (see Crystal Part Number Guide for more details)
Storage Temperature Range
-55 °C to +125 °C Standard
Holder Type
QPM25A

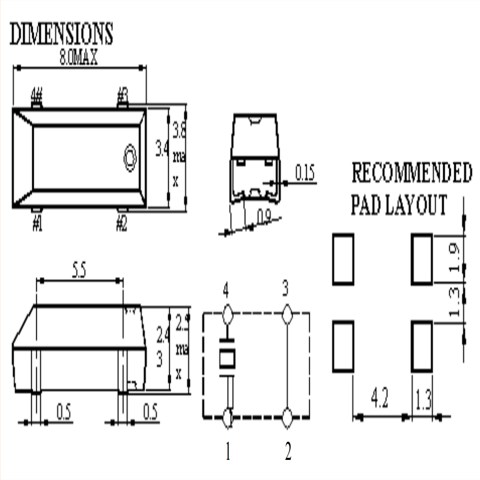

6G发射器晶振|QPM25A-2XDF12.5-60.000KHz|QVS陶瓷谐振器 尺寸图
SMD晶体产品特性：
大尺寸
非常低的老化
优异的耐热性
