FMI无源石英晶振,FMXMC3S-118FJB-40.000000M-CM,40MHZ,5032mm,美国进口晶振,美国FMI晶振,四脚贴片晶振,40MHZ贴片谐振器,5032mm石英晶振,石英振动子,FMXMC3S-118FJB-40.000000M-CM晶振,尺寸5.0x3.2mm,频率40MHZ,负载18pF,工作温度-20~+70℃,高可靠晶振,环保晶振,低成本晶振,蓝牙耳机晶振,智能手机晶振,便携式设备晶振,小家电晶振.
FMI无源石英晶振,FMXMC3S-118FJB-40.000000M-CM,40MHZ,5032mm特点:
表面贴装陶瓷组件。
Micro 5x3.2/超薄石英晶体
高可靠性
紧密稳定性

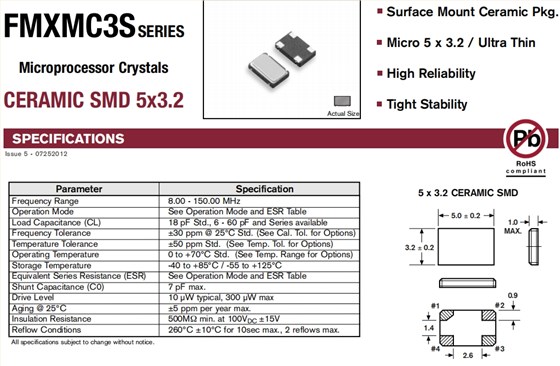

FMI无源石英晶振,FMXMC3S-118FJB-40.000000M-CM,40MHZ,5032mm 参数表
| Parameter | Specification | ||||||||||||||
| Frequency Range | 40.00 MHz | ||||||||||||||

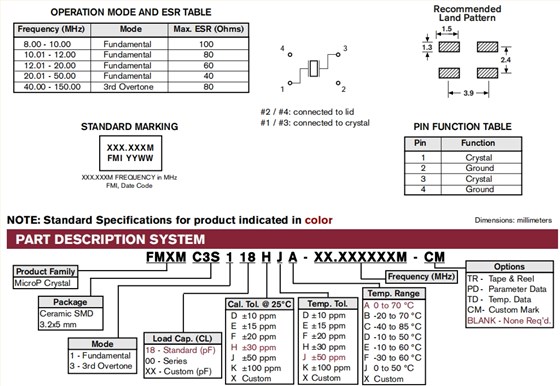

| Operation Mode | See Operation Mode and ESR Table | ||||||||||||||
| Load Capacitance (CL) | 18 pF Std., 6 - 60 pF and Series available | ||||||||||||||
| Frequency Tolerance | ±30 ppm @ 25°C Std. (See Cal. Tol. for Options) | ||||||||||||||
| Temperature Tolerance | ±50 ppm Std.(See Temp. Tol. for Options) | ||||||||||||||
| Operating Temperature | 0 to +70°C Std.(See Temp. Range for Options) | ||||||||||||||
| Storage Temperature | -40 to +85°C / -55 to +125°C | ||||||||||||||
| Equivalent Series Resistance (ESR) | See Operation Mode and ESR Table | ||||||||||||||
| Shunt Capacitance (C0) | 7 pF max. | ||||||||||||||
| Drive Level | 10 µWtypical, 300 µW max | ||||||||||||||
| Aging @ 25°C | ±5 ppm per year max. | ||||||||||||||
| Insulation Resistance | 500MΩ min. at 100VDC±15V | ||||||||||||||
| Reflow Conditions | 260°C ±10°C for 10sec max., 2 reflows max. |

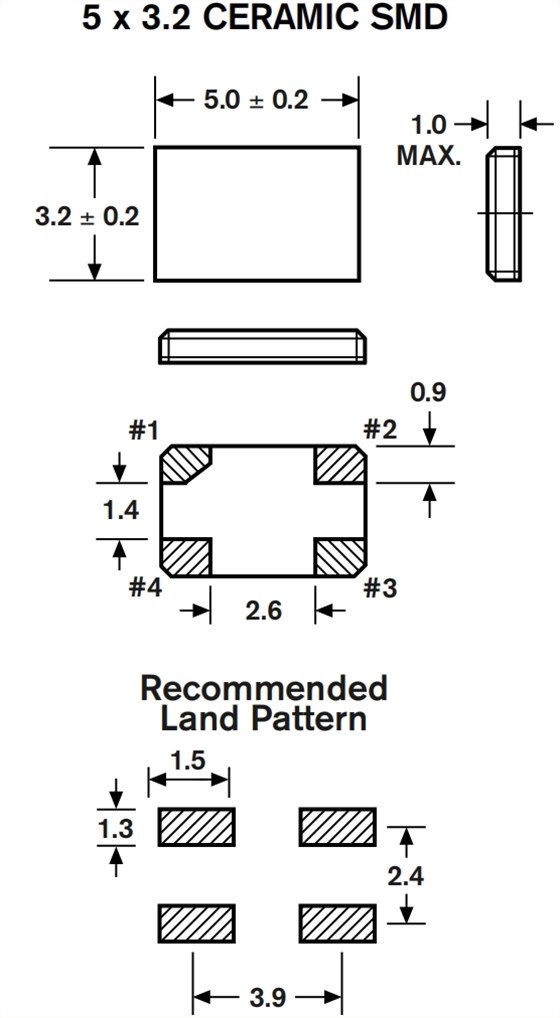

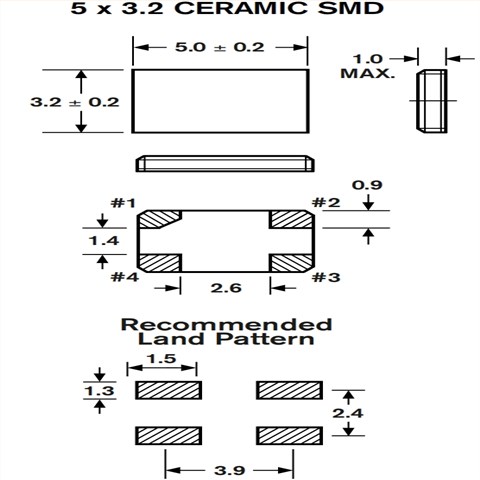

FMI无源石英晶振,FMXMC3S-118FJB-40.000000M-CM,40MHZ,5032mm 尺寸图
