爱普生高品质晶振,SG7050VEN有源差分振荡器,X1G0053310015,6G交换机晶振，尺寸为7.00x5.00x1.70mm，频率为125MHz，输出逻辑LVDS，差分晶振LVDS，LVDS差分晶体振荡器，爱普生差分晶振，进口差分振荡器，低电压差分晶振，低抖动差分振荡器，低相位差分晶振，高品质差分晶振，路由器专用差分晶振，交换机差分晶振，光模块差分晶振，具有低电压低抖动低相位的特点，很适合用于测试和测量设备，工厂自动化，高速转换器，如ADC和DAC，网络设备(路由器、交换机、光模块等)，数据中心等领域.

6G将使通信流量呈指数级增长。6G通信网络要求高速宽频带，同时把噪音降到最低。这可以通过高频率实现用于通信设备的低抖动参考时钟。使用上面的XO晶体振荡器，客户可以输入一个高频率参考(高达500mhz)与极低的相位抖动和功率，从一个基本模式晶体实现极好的相位噪声。爱普生高品质晶振,SG7050VEN有源差分振荡器,X1G0053310015,6G交换机晶振.

爱普生高品质晶振,SG7050VEN有源差分振荡器,X1G0053310015,6G交换机晶振参数图

Parameter

Symbol

Specification

Unit

Conditions

Min.

Typ.

Max.

Maximum supply voltage

VCC

-0.5

fo≤200 MHz

-0.5

fo > 200 MHz

Input voltage

Vin

-0.5

VCC+ 0.5

OE terminal

Storage temperature range

T_stg

-55

125

ºC

Parameter

Symbol

Specification

Unit

Conditions

Min.

Typ.

Max.

Supply voltage

VCC

2.375

2.5

2.625

Suffix: D

3.135

3.3

3.465

Suffix: C

Supply voltage

GND

0.0

Operating temperature range

T_use

-40

+25

+85

ºC

Suffix: G

-40

+25

+105

ºC

Suffix: H

LVDS load condition

L_LVDS

100

Connected between
OUT and

Parameter

Symbol

Specification

Unit

Conditions

Min.

Typ.

Max.

Output frequency *1

125

MHz

SG3225VEN / SG7050VEN

200

500

MHz

SG5032VEN

Frequency tolerance

f_tol

-25

+25

×10-6

*2
Suffix: D
fo≤200 MHz, T_use: G

-50

+50

×10-6

*3
Suffix: J
T_use: G

*3
Suffix: J
fo≤200 MHz, T_use: H

-100

+100

×10-6

*3
Suffix: L
T_use: H

Parameter	Symbol	Specification			Unit	Conditions
		Min.	Typ.	Max.
Startup time	t_str	-	-	10	ms	t = 0 at 90 %VCC
Current consumption	ICC	-	-	25	mA
Disable current	I_dis	-	-	15	mA	OE = GND
Rise time / Fall time	tr / tf	-	-	0.3	ns	20 % - 80 % of differential output peak to peak voltage
Symmetry	SYM	45	50	55	%	At output crossing point
Output voltage	VOD	250	350	450	mV	DC characteristics
	dVOD	-	-	50	mV
	VOS	1.15	1.25	1.35	V
	dVOS	-	-	50	mV
Input voltage	VIH	70 % VCC	-	-	V	OE terminal
	VIL	-	-	30 % VCC	V
Output disable time	tstp_oe	-	-	100	ns	OE terminal HIGH → LOW
Output enable time	tsta_oe	-	-	200	ns	fo ≤ 200 MHz, OE terminal LOW → HIGH
		-	-	500	ns	fo > 200 MHz, OE terminal LOW → HIGH
Phase jitter(fo = 25 MHz)	tPJ	-	164.8	-	fs	Offset frequency 12 kHz to 5 MHz
Phase jitter(fo = 50 MHz)	tPJ	-	183.1	-	fs	Offset frequency 12 kHz to 20 MHz
Phase jitter(fo = 100 MHz)	tPJ	-	96.1	150	fs
Phase jitter(fo = 125 MHz)	tPJ	-	71.1	110	fs
Phase jitter(fo = 156.25 MHz)	tPJ	-	59.6	90	fs
Phase jitter(fo = 212.5 MHz)	tPJ	-	36.2	80	fs
Phase jitter(fo = 312.5 MHz)	tPJ	-	37.0	80	fs
Phase jitter(fo = 491.52 MHz)	tPJ	-	29.2	60	fs

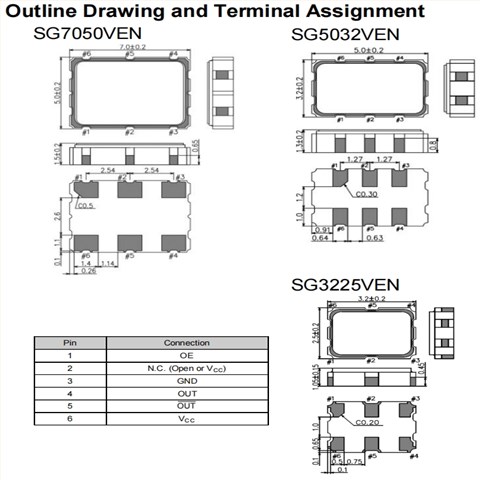

爱普生高品质晶振,SG7050VEN有源差分振荡器,X1G0053310015,6G交换机晶振 尺寸图

产品特性：

石英晶体振荡器(SPXO)

频率范围(fo): 25MHz至500MHz

输出:LVDS

供电电压:2.5 V。/ 3.3 V类型

工作温度:-40℃至+105℃

低相位抖动:60fs(fo = 156.25MHz)
