NDK低抖动振荡器,NP5032SA-100MHZ-NSC5400A,6G收发器差分晶振，尺寸为5.0*3.2mm，频率为100MHZ，输出逻辑LVPECL，日本电波差分晶振，LV-PECL差分输出晶振，低电压差分振荡器，低抖动差分晶振，低耗能差分晶振，低相噪差分晶振，仪器设备差分晶振，6G光模块差分晶振，无线网络差分振荡器，智能家居专用差分晶振，轻薄型差分晶振，OSC差分晶振，产品很适合用于SONET，SDH与千兆以太网相关的设备等领域。
晶振，作为电子产品的心脏部分，为电路提供稳定、持续的时钟信号，我们可能并不陌生 。但具体细分普通晶振（单端）、差分晶振可能大家就有些分不清楚了，尤其是差分晶振。
我们所谓的单端或差分，主要是指输出模式。单端一般是CMOS、TTL电平信号，只需要一根线输出就好了，优点是走线方便，但缺点也很明显，就是抗干扰能力差，不适合高速信号（100MHZ以上）。NDK低抖动振荡器,NP5032SA-100MHZ-NSC5400A,6G收发器差分晶振.

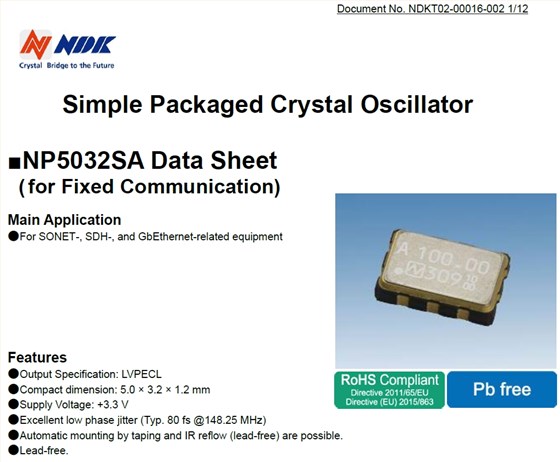

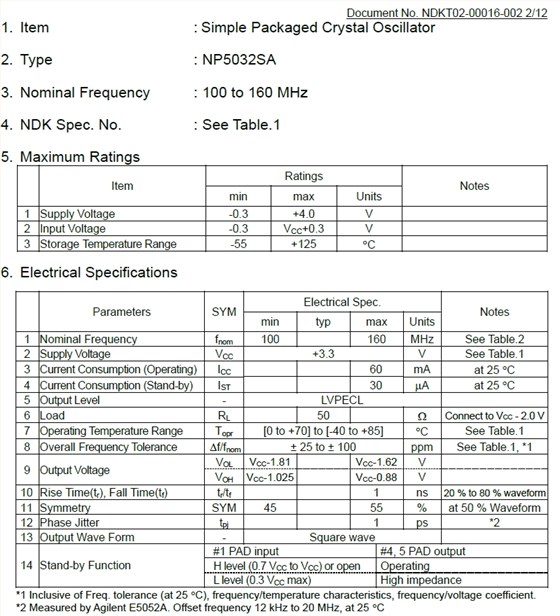

NDK低抖动振荡器,NP5032SA-100MHZ-NSC5400A,6G收发器差分晶振参数图
Item
Ratings
Notes
min
max
Units
1
Supply Voltage
-0.3
+4.0
V
2
Input Voltage
-0.3
VCC+0.3
V
3
Storage Temperature Range
-55
+125
。C
Parameters
SYM
Electrical Spec.
Notes
min
typ
max
Units
1
Nominal Frequency
fnom
125
MHz
See Table.2
2
Supply Voltage
VCC
+3.3
V
See Table.1
3
Current Consumption (Operating)
ICC
60
mA
at 25。C
4
Current Consumption (Stand-by)
IST
30
μA
at 25。C
5
Output Level
-
LVPECL
6
Load
RL
50
Ω
Connect to VCC- 2.0 V
7
Operating Temperature Range
Topr
[0 to +70] to [-40 to +85]
。C
See Table.1
8
Overall Frequency Tolerance
Δf/fnom
± 25 to ± 100
ppm
See Table.1, *1
9
Output Voltage
VOL
VCC- 1.81
VCC- 1.62
V
VOH
VCC- 1.025
VCC-0.88
V
10
Rise Time(tr), Fall Time(tf)
tr/tf
1
ns
20 % to 80 % waveform
11
Symmetry
SYM
45
55
%
at 50 % Waveform
12
Phase Jitter
tpj
1
ps
*2
13
Output Wave Form
-
Square wave
14
Stand-by Function
#1 PAD input
#4, 5 PAD output
H level (0.7 VCCto VCC) or open
Operating
L level (0.3 VCCmax)
High impedance

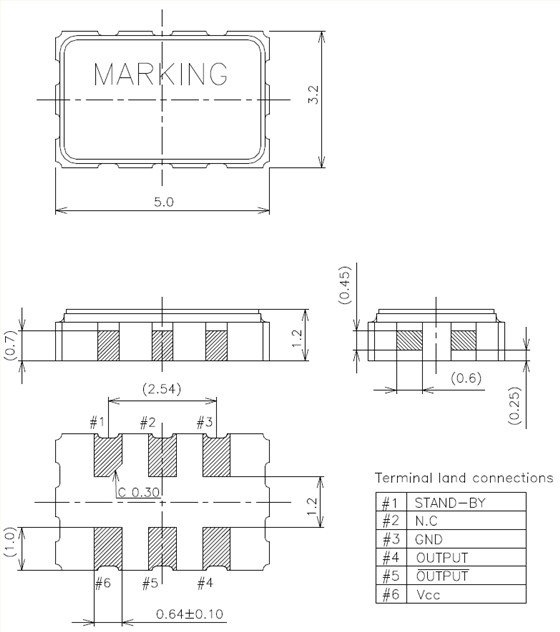

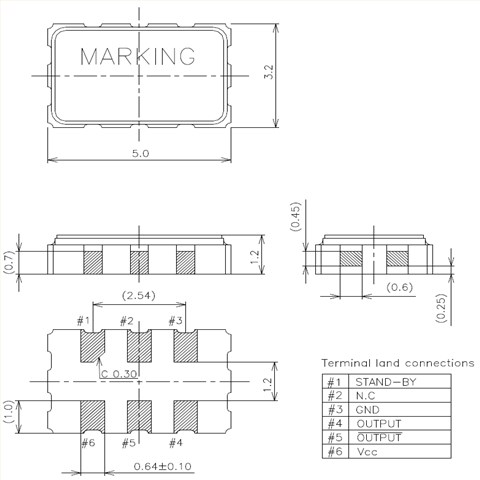

NDK低抖动振荡器,NP5032SA-100MHZ-NSC5400A,6G收发器差分晶振尺寸图
产品特性：
更多相关日本NDK晶振型号
| Model | Nominal frequency[MHz] | Specification number | Manufacturer | Package size(LxW)[mm] | Output specification | Operating temperature rang[℃] | Storage temperature range[℃] |
| NP3225SA | 212.5MHZ | NSC5235A | NDK低抖动振荡器 | 3.2x2.5 | LVPECL | -40~+85 | -55~+125 |
| NP3225SA | 200MHZ | NSC5235B | NDK低抖动振荡器 | 3.2x2.5 | LVPECL | -40~+85 | -55~+125 |
| NP3225SA | 212.5MHZ | NSC5235B | NDK低抖动振荡器 | 3.2x2.5 | LVPECL | -40~+85 | -55~+125 |
| NP3225SA | 200MHZ | NSC5237A | NDK低抖动振荡器 | 3.2x2.5 | LVPECL | -40~+105 | -55~+125 |
| NP3225SA | 212.5MHZ | NSC5237A | NDK低抖动振荡器 | 3.2x2.5 | LVPECL | -40~+105 | -55~+125 |
| NP3225SA | 200MHZ | NSC5237B | NDK低抖动振荡器 | 3.2x2.5 | LVPECL | -40~+105 | -55~+125 |
| NP3225SA | 212.5MHZ | NSC5237B | NDK低抖动振荡器 | 3.2x2.5 | LVPECL | -40~+105 | -55~+125 |
| NP3225SB | 50MHZ | NSC5343A | NDK低抖动振荡器 | 3.2x2.5 | LVDS | -40~+85 | -55~+125 |
| NP3225SB | 100MHZ | NSC5343A | NDK低抖动振荡器 | 3.2x2.5 | LVDS | -40~+85 | -55~+125 |
| NP3225SB | 125MHZ | NSC5343A | NDK低抖动振荡器 | 3.2x2.5 | LVDS | -40~+85 | -55~+125 |
| NP3225SB | 135MHZ | NSC5343A | NDK低抖动振荡器 | 3.2x2.5 | LVDS | -40~+85 | -55~+125 |
| NP3225SB | 148MHZ | NSC5343A | NDK低抖动振荡器 | 3.2x2.5 | LVDS | -40~+85 | -55~+125 |
| NP3225SB | 156.25MHZ | NSC5343A | NDK低抖动振荡器 | 3.2x2.5 | LVDS | -40~+85 | -55~+125 |
| NP3225SB | 200MHZ | NSC5236A | NDK低抖动振荡器 | 3.2x2.5 | LVDS | -40~+85 | -55~+125 |
| NP3225SB | 50MHZ | NSC5343B | NDK低抖动振荡器 | 3.2x2.5 | LVDS | -40~+85 | -55~+125 |
| NP3225SB | 100MHZ | NSC5343B | NDK低抖动振荡器 | 3.2x2.5 | LVDS | -40~+85 | -55~+125 |
| NP3225SB | 125MHZ | NSC5343B | NDK低抖动振荡器 | 3.2x2.5 | LVDS | -40~+85 | -55~+125 |
| NP3225SB | 135MHZ | NSC5343B | NDK低抖动振荡器 | 3.2x2.5 | LVDS | -40~+85 | -55~+125 |
| NP3225SB | 148MHZ | NSC5343B | NDK低抖动振荡器 | 3.2x2.5 | LVDS | -40~+85 | -55~+125 |
| NP3225SB | 156.25MHZ | NSC5343B | NDK低抖动振荡器 | 3.2x2.5 | LVDS | -40~+85 | -55~+125 |
| NP3225SB | 200MHZ | NSC5236B | NDK低抖动振荡器 | 3.2x2.5 | LVDS | -40~+85 | -55~+125 |
| NP3225SB | 50MHZ | NSC5344A | NDK低抖动振荡器 | 3.2x2.5 | LVDS | -40~+105 | -55~+125 |
| NP3225SB | 100MHZ | NSC5344A | NDK低抖动振荡器 | 3.2x2.5 | LVDS | -40~+105 | -55~+125 |
| NP3225SB | 125MHZ | NSC5344A | NDK低抖动振荡器 | 3.2x2.5 | LVDS | -40~+105 | -55~+125 |
| NP3225SB | 135MHZ | NSC5344A | NDK低抖动振荡器 | 3.2x2.5 | LVDS | -40~+105 | -55~+125 |
| NP3225SB | 148MHZ | NSC5344A | NDK低抖动振荡器 | 3.2x2.5 | LVDS | -40~+105 | -55~+125 |
| NP3225SB | 156.25MHZ | NSC5344A | NDK低抖动振荡器 | 3.2x2.5 | LVDS | -40~+105 | -55~+125 |
| NP3225SB | 200MHZ | NSC5238A | NDK低抖动振荡器 | 3.2x2.5 | LVDS | -40~+105 | -55~+125 |
| NP3225SB | 50MHZ | NSC5344B | NDK低抖动振荡器 | 3.2x2.5 | LVDS | -40~+105 | -55~+125 |
| NP3225SB | 100MHZ | NSC5344B | NDK低抖动振荡器 | 3.2x2.5 | LVDS | -40~+105 | -55~+125 |
| NP3225SB | 125MHZ | NSC5344B | NDK低抖动振荡器 | 3.2x2.5 | LVDS | -40~+105 | -55~+125 |
| NP3225SB | 135MHZ | NSC5344B | NDK低抖动振荡器 | 3.2x2.5 | LVDS | -40~+105 | -55~+125 |
| NP3225SB | 148MHZ | NSC5344B | NDK低抖动振荡器 | 3.2x2.5 | LVDS | -40~+105 | -55~+125 |
| NP3225SB | 156.25MHZ | NSC5344B | NDK低抖动振荡器 | 3.2x2.5 | LVDS | -40~+105 | -55~+125 |
| NP3225SB | 200MHZ | NSC5238B | NDK低抖动振荡器 | 3.2x2.5 | LVDS | -40~+105 | -55~+125 |
| NP3225SC | 100MHZ | NSC5082A | NDK低抖动振荡器 | 3.2x2.5 | HCSL | -40~+85 | -55~+125 |
| NP3225SC | 156.25MHZ | NSC5082A | NDK低抖动振荡器 | 3.2x2.5 | HCSL | -40~+85 | -55~+125 |
| NP3225SC | 100MHZ | NSC5345B | NDK低抖动振荡器 | 3.2x2.5 | HCSL | -40~+85 | -55~+125 |
| NP3225SC | 156.25MHZ | NSC5345B | NDK低抖动振荡器 | 3.2x2.5 | HCSL | -40~+85 | -55~+125 |
| NP3225SC | 100MHZ | NSC5191A | NDK低抖动振荡器 | 3.2x2.5 | HCSL | -40~+105 | -55~+125 |
| NP3225SC | 156.25MHZ | NSC5191A | NDK低抖动振荡器 | 3.2x2.5 | HCSL | -40~+105 | -55~+125 |
| NP3225SC | 100MHZ | NSC5346B | NDK低抖动振荡器 | 3.2x2.5 | HCSL | -40~+105 | -55~+125 |
| NP3225SC | 156.25MHZ | NSC5346B | NDK低抖动振荡器 | 3.2x2.5 | HCSL | -40~+105 | -55~+125 |
| NP3225SAB | 100MHZ | NSC5186A | NDK低抖动振荡器 | 3.2x2.5 | LVPECL | -40~+85 | -55~+125 |
| NP3225SAB | 125MHZ | NSC5186A | NDK低抖动振荡器 | 3.2x2.5 | LVPECL | -40~+85 | -55~+125 |
| NP3225SAB | 156.25MHZ | NSC5186A | NDK低抖动振荡器 | 3.2x2.5 | LVPECL | -40~+85 | -55~+125 |
| NP3225SAB | 100MHZ | NSC5186B | NDK低抖动振荡器 | 3.2x2.5 | LVPECL | -40~+85 | -55~+125 |
| NP3225SAB | 125MHZ | NSC5186B | NDK低抖动振荡器 | 3.2x2.5 | LVPECL | -40~+85 | -55~+125 |
| NP3225SAB | 156.25MHZ | NSC5186B | NDK低抖动振荡器 | 3.2x2.5 | LVPECL | -40~+85 | -55~+125 |
| NP3225SBB | 100MHZ | NSC5187A | NDK低抖动振荡器 | 3.2x2.5 | LVDS | -40~+85 | -55~+125 |
| NP3225SBB | 125MHZ | NSC5187A | NDK低抖动振荡器 | 3.2x2.5 | LVDS | -40~+85 | -55~+125 |
| NP3225SBB | 156.25MHZ | NSC5187A | NDK低抖动振荡器 | 3.2x2.5 | LVDS | -40~+85 | -55~+125 |
| NP3225SBB | 100MHZ | NSC5187B | NDK低抖动振荡器 | 3.2x2.5 | LVDS | -40~+85 | -55~+125 |
| NP3225SBB | 125MHZ | NSC5187B | NDK低抖动振荡器 | 3.2x2.5 | LVDS | -40~+85 | -55~+125 |
| NP3225SBB | 156.25MHZ | NSC5187B | NDK低抖动振荡器 | 3.2x2.5 | LVDS | -40~+85 | -55~+125 |
| NP3225SAD | 100MHZ | NSC5347B | NDK低抖动振荡器 | 3.2x2.5 | LVPECL | -40~+85 | -55~+125 |
| NP3225SAD | 156.25MHZ | NSC5347B | NDK低抖动振荡器 | 3.2x2.5 | LVPECL | -40~+85 | -55~+125 |
| NP3225SBD | 100MHZ | NSC5348B | NDK低抖动振荡器 | 3.2x2.5 | LVDS | -40~+85 | -55~+125 |
| NP3225SBD | 156.25MHZ | NSC5348B | NDK晶振 | 3.2x2.5 | LVDS | -40~+85 | -55~+125 |
| NP3225SCD | 100MHZ | NSC5349B | NDK低抖动振荡器 | 3.2x2.5 | HCSL | -40~+85 | -55~+125 |
| NP3225SCD | 156.25MHZ | NSC5349B | NDK低抖动振荡器 | 3.2x2.5 | HCSL | -40~+85 | -55~+125 |
| NP5032SA | 100MHZ | NSC5400A | NDK低抖动振荡器 | 5.0x3.2 | LVPECL | 0~70 | -55~+125 |
| NP5032SA | 102.564MHZ | NSC5400A | NDK低抖动振荡器 | 5.0x3.2 | LVPECL | 0~70 | -55~+125 |
| NP5032SA | 125MHZ | NSC5400A | NDK低抖动振荡器 | 5.0x3.2 | LVPECL | 0~70 | -55~+125 |
| NP5032SA | 133.33MHZ | NSC5400A | NDK低抖动振荡器 | 5.0x3.2 | LVPECL | 0~70 | -55~+125 |
| NP5032SA | 133.333MHZ | NSC5400A | NDK低抖动振荡器 | 5.0x3.2 | LVPECL | 0~70 | -55~+125 |
| NP5032SA | 148.5MHZ | NSC5400A | NDK低抖动振荡器 | 5.0x3.2 | LVPECL | 0~70 | -55~+125 |
| NP5032SA | 156.25MHZ | NSC5400A | NDK低抖动振荡器 | 5.0x3.2 | LVPECL | 0~70 | -55~+125 |
| NP5032SA | 100MHZ | NSC5400B | NDK低抖动振荡器 | 5.0x3.2 | LVPECL | 0~85 | -55~+125 |
| NP5032SA | 102.564MHZ | NSC5400B | NDK低抖动振荡器 | 5.0x3.2 | LVPECL | 0~85 | -55~+125 |
| NP5032SA | 125MHZ | NSC5400B | NDK低抖动振荡器 | 5.0x3.2 | LVPECL | 0~85 | -55~+125 |
| NP5032SA | 133.33MHZ | NSC5400B | NDK低抖动振荡器 | 5.0x3.2 | LVPECL | 0~85 | -55~+125 |
| NP5032SA | 133.333MHZ | NSC5400B | NDK低抖动振荡器 | 5.0x3.2 | LVPECL | 0~85 | -55~+125 |
| NP5032SA | 148.5MHZ | NSC5400B | NDK低抖动振荡器 | 5.0x3.2 | LVPECL | 0~85 | -55~+125 |
| NP5032SA | 156.25MHZ | NSC5400B | NDK低抖动振荡器 | 5.0x3.2 | LVPECL | 0~85 | -55~+125 |
| NP5032SA | 100MHZ | NSC5400C | NDK低抖动振荡器 | 5.0x3.2 | LVPECL | -40~+85 | -55~+125 |
| NP5032SA | 102.564MHZ | NSC5400C | NDK低抖动振荡器 | 5.0x3.2 | LVPECL | -40~+85 | -55~+125 |
| NP5032SA | 125MHZ | NSC5400C | NDK低抖动振荡器 | 5.0x3.2 | LVPECL | -40~+85 | -55~+125 |
| NP5032SA | 133.33MHZ | NSC5400C | NDK低抖动振荡器 | 5.0x3.2 | LVPECL | -40~+85 | -55~+125 |
| NP5032SA | 133.333MHZ | NSC5400C | NDK低抖动振荡器 | 5.0x3.2 | LVPECL | -40~+85 | -55~+125 |
