NP2520SAB-100MHZ-NSC5326B,6G光通信差分晶振,日本电波晶振，尺寸为2.5x2.0x0.8mm，频率100MHZ，支持输出LVPECL，贴片差分晶振，LVPECL差分输出晶振，差分晶体振荡器LVPECL，低抖动差分晶振，低相位差分振荡器，低耗能差分晶振，6G光通信专用差分晶振，光收发器差分晶振，NDK差分晶振，高频差分差分晶振，高精度测量差分晶振，具备高精度低抖动低耗能低电压的特点。适用于5G兼容设备，光通信、光收发器，WDM设备等领域。
差分晶体振荡器(DXO)是目前行业中公认高技术，高要求的一款晶体振荡器，是指输出差分信号使用2种相位彼此完全相反的信号,从而消除了共模噪声,并产生一个更高性能的系统。差分晶振一般为六脚贴片，输出类型分为好几种,LVDS,LV-PECL，HCSL具有低电平,低抖动,低功耗等特性。NP2520SAB-100MHZ-NSC5326B,6G光通信差分晶振,日本电波晶振.
NP2520SAB-100MHZ-NSC5326B,6G光通信差分晶振,日本电波晶振参数图
Item
Ratings
Notes
min
max
Units
Supply Voltage
-0.3
+4.0
V
Input Voltage
-0.3
VCC+0.3
V
Storage Temperature Range
-55
+125
。C
Parameters
SYM
Electrical Spec.
Notes
min
typ
max
Units
1
Nominal Frequency
fnom
100
MHz
2
Supply Voltage
VCC
2.375
2.5
2.625
V
2.97
3.3
3.63
V
3
Current Consumption (Operating)
ICC
60
mA
at 25。C
4
Current Consumption (Stand-by)
IST
30
μA
at 25。C
5
Output Level
-
LVPECL
6
Load
RL
50
Ω
Connect to VCC- 2.0 V
7
Operating Temperature Range
Topr
-40
+85
。C
8
Overall Frequency Tolerance
Δf/fnom
-50
+50
ppm
*1
9
Output Voltage
VOL
VCC- 1.5
V
VOH
VCC- 1.1
V
10
Rise Time(tr), Fall Time(tf)
tr/tf
0.5
ns
20 % to 80 %
waveform
11
Symmetry
SYM
45
55
%
at 50 % Waveform
12
Start-up Time
tsu
10
ms
13
Phase Jitter
tpj
60
fs
*2
14
Output Wave Form
-
Square wave
15
Stand-by Function
#1 PAD input
#4, 5 PAD output
H level (0.7 VCCto VCC) or open
Operating
L level (0.3 VCCmax)
High impedance

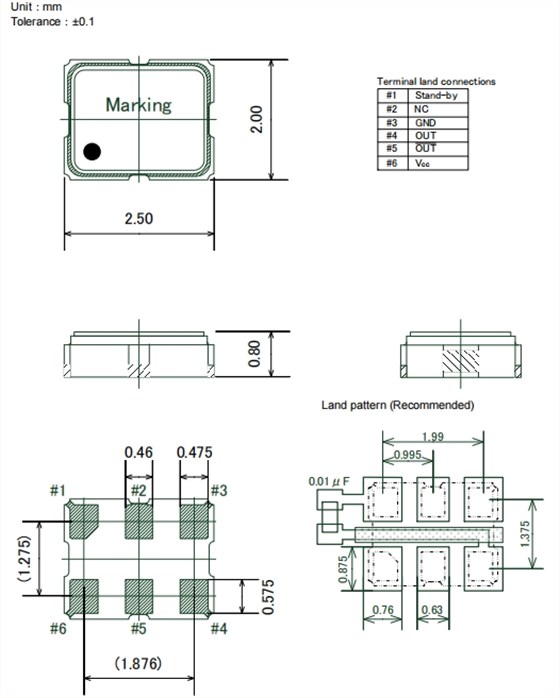

NP2520SAB-100MHZ-NSC5326B,6G光通信差分晶振,日本电波晶振尺寸图

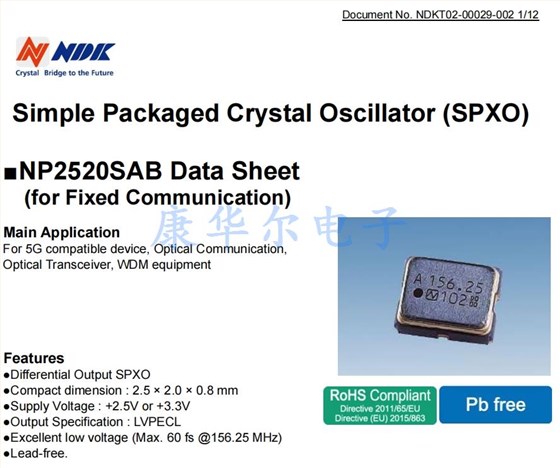

产品特性：
差分晶振LVPECL输出SPXO
紧凑:2.5x2.0x 0.8毫米
电源电压:+2.5V或者+3.3V
低相位抖动:典型。156.25MHz时60fs
无铅
更多相关日本NDK晶振型号
| Manufacturer Part Number | Manufacturer | Series | Frequency 频率 | Voltage - Supply电压 |
| NT3225SA-19.680000MHZ | NDK晶振 | NT3225SA | 19.68MHz | 3V |
| NT3225SA-26.000000MHZ | NDK晶振 | NT3225SA | 26MHz | 3V |
| NT2016SA-16.368000 MHZ-NTG1 | NDK晶振 | NT2016SA | 16.368MHz | 2.5V |
| NT3225SA-19.200000MHZ | NDK晶振 | NT3225SA | 19.2MHz | 2.8V |
| NT3225SA-19.2M-DJA3002B | NDK晶振 | NT3225SA | 19.2MHz | 2.8V |
| NT2520SA-26.000000MHZ-A1 | NDK晶振 | NT2520SA | 26MHz | 2.4V |
| NZ2520SB-32.768KHZ-NSA3535C | NDK晶振 | NZ2520S | 32.768kHz | 2.5V |
| NZ2520SB-2.750000MHZ | NDK晶振 | NZ2520SB | 2.75MHz | 3V |
| NZ2520SB-7.600000MHZ | NDK晶振 | NZ2520SB | 7.6MHz | 3V |
| NZ2520SB-5.000000MHZ | NDK晶振 | NZ2520SB | 5MHz | 3V |
| NZ2520SB-10.000000MHZ | NDK晶振 | NZ2520SB | 10MHz | 3V |
| NZ2520SB-19.200MHZ | NDK晶振 | NZ2520SB | 19.2MHz | 3V |
| NZ2520SB-20.000000MHZ | NDK晶振 | NZ2520SB | 20MHz | 3V |
| NZ2520SB-22.000000MHZ | NDK晶振 | NZ2520SB | 22MHz | 3V |
| NZ2520SB-25.600MHZ | NDK晶振 | NZ2520SB | 25.6MHz | 3V |
| NZ2520SB-38.900MHZ | NDK晶振 | NZ2520SB | 38.9MHz | 3V |
| NZ2520SB-40.000000MHZ | NDK晶振 | NZ2520SB | 40MHz | 3V |
| NZ2520SB-41.360MHZ | NDK晶振 | NZ2520SB | 41.36MHz | 3V |
| NZ2520SB-44.000000MHZ | NDK晶振 | NZ2520SB | 44MHz | 3V |
| NT3225SA-26.000000MHZ-G5 | NDK晶振 | NT3225SA | 26MHz | 2.4V |
| NT3225SA-26.000000MHZ-G7 | NDK晶振 | NT3225SA | 26MHz | 2.7V |
| NT3225SA-26.000000MHZ-G8 | NDK晶振 | NT3225SA | 26MHz | 2.75V |
| NT3225SA-19.200000MHZ-T3 | NDK晶振 | NT3225SA | 19.2MHz | 2.8V |
| 2775W-2.176 | NDK晶振 | 2775W | 2.176MHz | 5V |
| 2765E-2.457600MHZ | NDK晶振 | 2765E | 2.4576MHz | 3.3V |
| 2765E-16.666700MHZ | NDK晶振 | 2765E | 16.6667MHz | 3.3V |
| 2765E-25.000000MHZ | NDK晶振 | 2765E | 25MHz | 3.3V |
| 2765E-33.333300MHZ | NDK晶振 | 2765E | 33.3333MHz | 3.3V |
| 2765E-40.000000MHZ | NDK晶振 | 2765E | 40MHz | 3.3V |
| 2765E-50.000000MHZ | NDK晶振 | 2765E | 50MHz | 3.3V |
| 2765E-66.000000MHZ | NDK晶振 | 2765E | 66MHz | 3.3V |
| 2765E-66.667000MHZ | NDK晶振 | 2765E | 66.667MHz | 3.3V |
| 2765E-80.000000MHZ | NDK晶振 | 2765E | 80MHz | 3.3V |
| NZ2520SA-2.750000MHZ | NDK晶振 | NZ2520SA | 2.75MHz | 3V |
| NZ2520SA-5.000000MHZ | NDK晶振 | NZ2520SA | 5MHz | 3V |
| NZ2520SA-7.600000MHZ | NDK晶振 | NZ2520SA | 7.6MHz | 3V |
| NZ2520SA-10.000000MHZ | NDK晶振 | NZ2520SA | 10MHz | 3V |
| NZ2520SA-20.000000MHZ | NDK晶振 | NZ2520SA | 20MHz | 3V |
| NZ2520SA-22.000000MHZ | NDK晶振 | NZ2520SA | 22MHz | 3V |
| NZ2520SA-40.000000MHZ | NDK晶振 | NZ2520SA | 40MHz | 3V |
| NZ2520SA-44.000000MHZ | NDK晶振 | NZ2520SA | 44MHz | 3V |
| NT3225SA-52.000000MHZ-S1 | NDK晶振 | NT3225SA | 52MHz | 2.4V |
| NZ2520SA-19.200MHZ | NDK晶振 | NZ2520SA | 19.2MHz | 3V |
| NZ2520SA-25.600MHZ | NDK晶振 | NZ2520SA | 25.6MHz | 3V |
| NZ2520SA-38.900MHZ | NDK晶振 | NZ2520SA | 38.9MHz | 3V |
| NZ2520SA-41.360MHZ | NDK晶振 | NZ2520SA | 41.36MHz | 3V |
