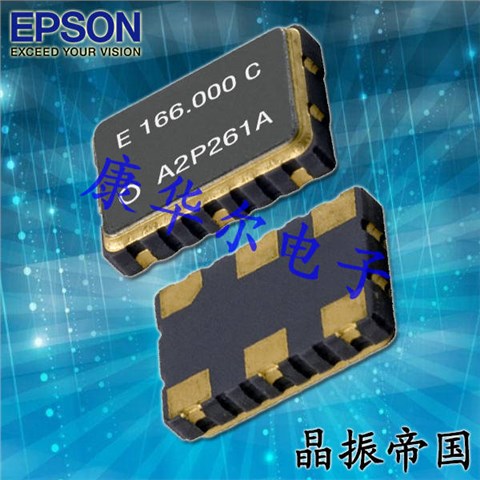

爱普生LV-PECL晶振,SG7050EEN振荡器,6GWIFI晶振,X1G0051310038

爱普生LV-PECL晶振,SG7050EEN振荡器,6GWIFI晶振,X1G0051310038，尺寸为7.0*5.0mm，频率为25MHZ，输出逻辑LVPECL，差分晶体振荡器，LVPECL差分输出晶振，贴片差分晶振，有源差分振荡器，低抖动差分晶振，低相位差分晶振，低电流差分晶振，低功耗差分晶振，6G网络差分晶振，25MHZ差分晶振，爱普生差分晶振，光通讯差分晶振信号输出LV-PECL，具备轻薄小，低电压低相噪低抖动的特点，很适合用于网络设备(路由器、交换机、光模块等)，数据中心，测试和测量设备，工厂自动化，高速转换器，如ADC和DAC等领域。

6G将使通信流量呈指数级增长。6G通信网络要求高速宽频带，同时把差分晶体振荡器噪音降到最低。这可以通过高频率实现用于通信设备的低抖动参考时钟。使用上面的XO，客户可以输入一个高频率参考(高达500mhz)与极低的相位抖动和功率，从一个基本模式晶体实现极好的相位噪声。爱普生LV-PECL晶振,SG7050EEN振荡器,6GWIFI晶振,X1G0051310038.

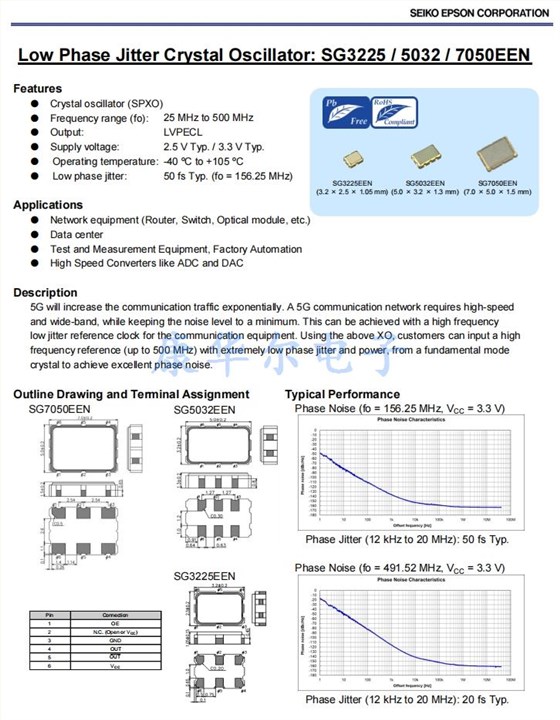

爱普生LV-PECL晶振,SG7050EEN振荡器,6GWIFI晶振,X1G0051310038参数图

Parameter

Symbol

Specification

Unit

Conditions

Min.

Typ.

Max.

Output frequency *1

MHz

SG3225EEN / SG7050EEN

200

500

MHz

SG5032EEN

Frequency tolerance

f_tol

-25

+25

×10-6

*2
Suffix: D
fo≤200 MHz, T_use: G

-50

+50

×10-6

*3
Suffix: J
T_use: G

*3
Suffix: J
fo≤200 MHz, T_use: H

-100

+100

×10-6

*3
Suffix: L
T_use: H

Parameter	Symbol	Specification			Unit	Conditions
		Min.	Typ.	Max.
Startup time	t_str	-	-	10	ms	t = 0 at 90 %VCC
Current consumption	ICC	-	-	60	mA
Disable current	I_dis	-	-	25	mA	OE = GND
Rise time / Fall time	tr / tf	-	-	0.3	ns	VCC= 3.3 V ± 10 %, fo≤200 MHz, 20 % - 80 % (VOH- VOL)
		-	-	0.35	ns	All other, 20 % - 80 % (VOH- VOL)
Symmetry	SYM	45	50	55	%	At output crossing point
Output voltage	VOH	VCC- 1.1	-	-	V	DC characteristics
	VOL	-	-	VCC- 1.5	V
Input voltage	VIH	70 % VCC	-	-	V	OE terminal
	VIL	-	-	30 % VCC	V
Output disable time (OE)	tstp_oe	-	-	100	ns	OE terminal HIGH → LOW
Output enable time (OE)	tsta_oe	-	-	200	ns	fo ≤ 200 MHz, OE terminal LOW → HIGH
		-	-	500	ns	fo > 200 MHz, OE terminal LOW → HIGH
Phase jitter(fo = 25 MHz)	tPJ	-	-	250	fs	Offset frequency 12 kHz to 5 MHz
Phase jitter(fo = 50 MHz)	tPJ	-	-	250	fs	Offset frequency 12 kHz to 20 MHz
Phase jitter(fo = 100 MHz)	tPJ	-	-	100	fs
Phase jitter(fo = 125 MHz)	tPJ	-	-	90	fs
Phase jitter(fo = 156.25 MHz)	tPJ	-	-	70	fs
Phase jitter(fo = 212.5 MHz)	tPJ	-	-	60	fs
Phase jitter(fo = 312.5 MHz)	tPJ	-	-	60	fs
Phase jitter(fo = 491.52 MHz)	tPJ	-	-	40	fs

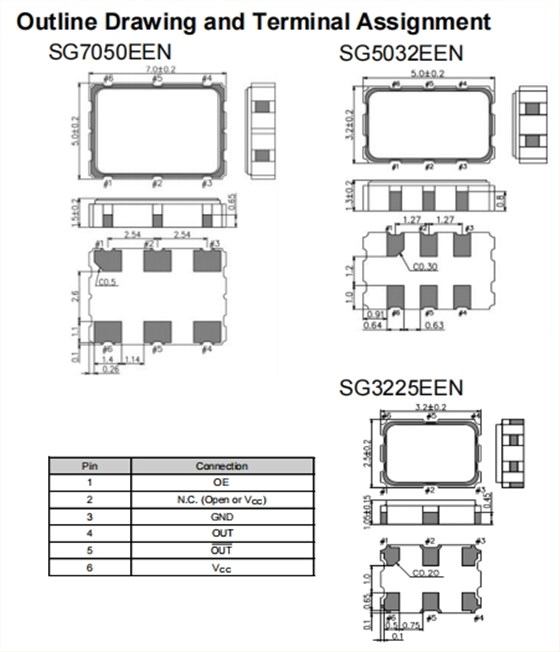

爱普生LV-PECL晶振,SG7050EEN振荡器,6GWIFI晶振,X1G0051310038尺寸图

产品特性：

晶体振荡器(SPXO)

频率范围(fo): 25MHz至500MHz

输出:LVPECL

供电电压:2.5 V。/ 3.3 V类型

工作温度:-40℃至+105℃

低相位抖动:50fs(fo =156.25MHz)

更多相关日本爱普生晶振型号

编码	晶振厂家	型号	频率	尺寸	输出方式	电源电压	工作温度
X1G0042710092	爱普生晶振	SG5032EAN	68.750000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042710102	爱普生晶振	SG5032EAN	669.325580 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042710107	爱普生晶振	SG5032EAN	114.285000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042710108	爱普生晶振	SG5032EAN	114.285000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042710109	爱普生晶振	SG5032EAN	250.000000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042710110	爱普生晶振	SG5032EAN	350.000000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042710111	爱普生晶振	SG5032EAN	80.000000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042710112	爱普生晶振	SG5032EAN	98.304000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042710113	爱普生晶振	SG5032EAN	161.132812 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042710115	爱普生晶振	SG5032EAN	133.330000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042910001	爱普生晶振	SG7050EAN	125.000000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042910002	爱普生晶振	SG7050EAN	155.520000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042910003	爱普生晶振	SG7050EAN	312.500000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042910004	爱普生晶振	SG7050EAN	150.000000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042910005	爱普生晶振	SG7050EAN	156.250000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042910006	爱普生晶振	SG7050EAN	125.006250 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042910008	爱普生晶振	SG7050EAN	100.000000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042910009	爱普生晶振	SG7050EAN	200.000000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042910010	爱普生晶振	SG7050EAN	400.000000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042910011	爱普生晶振	SG7050EAN	106.250000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042910012	爱普生晶振	SG7050EAN	212.500000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042910013	爱普生晶振	SG7050EAN	74.250000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042910014	爱普生晶振	SG7050EAN	148.500000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042910015	爱普生晶振	SG7050EAN	75.000000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042910016	爱普生晶振	SG7050EAN	312.515625 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042910017	爱普生晶振	SG7050EAN	161.132800 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042910019	爱普生晶振	SG7050EAN	700.000000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042910020	爱普生晶振	SG7050EAN	125.000000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042910021	爱普生晶振	SG7050EAN	125.006250 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042910022	爱普生晶振	SG7050EAN	133.330000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042910023	爱普生晶振	SG7050EAN	100.000000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042910024	爱普生晶振	SG7050EAN	200.000000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042910025	爱普生晶振	SG7050EAN	400.000000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042910026	爱普生晶振	SG7050EAN	106.250000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042910027	爱普生晶振	SG7050EAN	212.500000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042910028	爱普生晶振	SG7050EAN	74.250000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042910029	爱普生晶振	SG7050EAN	148.500000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042910030	爱普生晶振	SG7050EAN	75.000000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042910031	爱普生晶振	SG7050EAN	150.000000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042910032	爱普生晶振	SG7050EAN	155.520000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042910033	爱普生晶振	SG7050EAN	156.250000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042910034	爱普生晶振	SG7050EAN	312.500000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042910035	爱普生晶振	SG7050EAN	312.515625 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042910036	爱普生晶振	SG7050EAN	161.132800 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042910038	爱普生晶振	SG7050EAN	700.000000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042910039	爱普生晶振	SG7050EAN	125.000000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042910040	爱普生晶振	SG7050EAN	125.006250 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042910042	爱普生晶振	SG7050EAN	100.000000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042910043	爱普生晶振	SG7050EAN	200.000000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042910044	爱普生晶振	SG7050EAN	400.000000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
